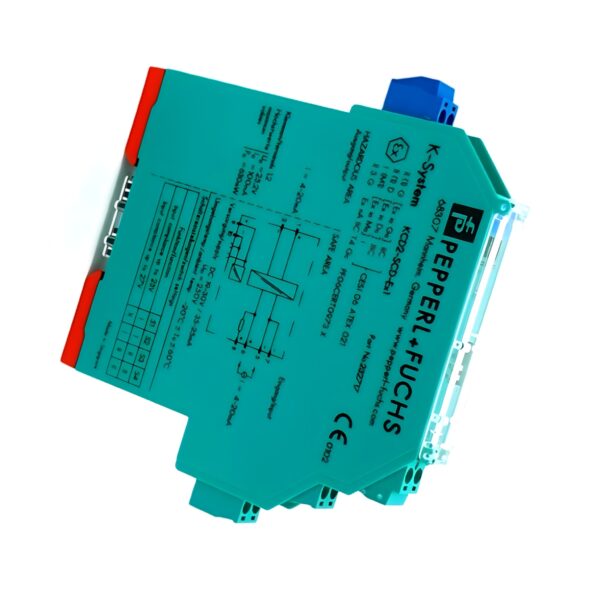

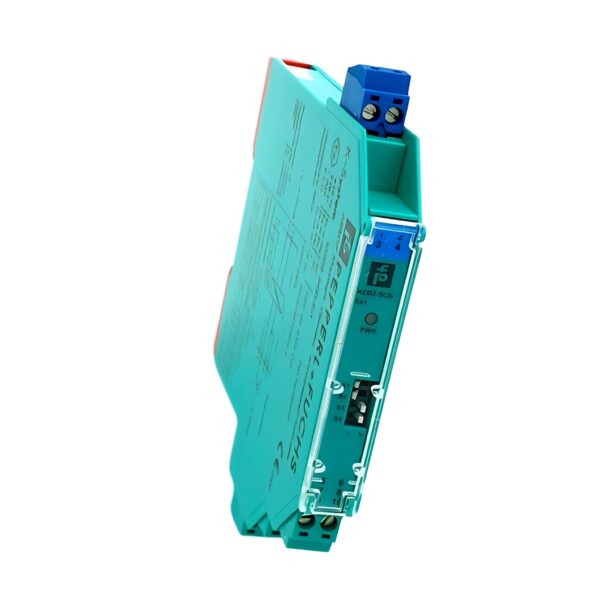

Pepperl+Fuchs KCD2-SCD-Ex1 SMART Current Driver (316911)

Name: Pepperl+Fuchs KCD2-SCD-Ex1 SMART Current Driver (316911)
SKU: KCD2-SCD-Ex1
Price: 327.69 GBP
Availability: InStock

£327.69 inc VAT

In Stock · Delivered in 3–5 Working Days

Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.

Technical SpecificationsPepperl+Fuchs

Model	KCD2-SCD-Ex1
Type	SMART Current Driver / Analog Output Barrier
Rated Current	≤ 30 mA @ 24 V
Power Dissipation	≤ 600 mW (20 mA / 500 Ω)
Voltage	≥ 13 V at 20 mA
Mounting	35 mm DIN Rail (EN 60715)
Voltage Drop	~6 V at 20 mA
Ripple	20 mV RMS
Rated Voltage	19–30 V DC
Power Supply	24 V DC via Power Rail or terminals 9+, 10-

✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: KCD2-SCD-Ex1 Category: Pepperl+Fuchs Modules Tag: KCD2-SCD-Ex1 Brand: Pepperl+Fuchs

Guaranteed Safe Checkout

Extra Features

100% Brand New & Genuine OEM Product
Includes Full 2-Year Warranty for Peace of Mind
Fast UK & Worldwide Shipping – Fully Tracked
Expert Technical Support from Our In-House Engineers
Found a Better Price? We’ll Match or Beat It Instantly

Pepperl+Fuchs KCD2-SCD-Ex1 SMART Current Driver (316911)

The P&F KCD2-SCD-Ex1 is a compact 12.5 mm wide, single-channel intrinsically safe SMART current driver designed for I/P converters, electrical valves, and positioners in hazardous areas. This unit supports bidirectional HART communication, offers lead breakage monitoring, and safely transfers analog control signals across zones via galvanic isolation.

Technical Specifications

Model	KCD2-SCD-Ex1
Type	SMART Current Driver / Analog Output Barrier
Channels	1
Housing Width	12.5 mm
Mounting	35 mm DIN Rail (EN 60715)
Power Supply	24 V DC via Power Rail or terminals 9+, 10-

Input Specifications

Input Signal	4–20 mA (limited to ~26 mA)
Input Terminals	5-, 6+
Voltage Drop	~6 V at 20 mA
Input Resistance	>100 kΩ (open field circuit)

Output Specifications

Output Signal	4–20 mA
Output Terminals	1+, 2-
Voltage	≥ 13 V at 20 mA
Load Resistance	0–650 Ω
Ripple	20 mV RMS

Power & Performance

Rated Voltage	19–30 V DC
Rated Current	≤ 30 mA @ 24 V
Power Dissipation	≤ 600 mW (20 mA / 500 Ω)
Accuracy	< 0.1% of full scale
Ambient Temperature	-40…+70 °C

Galvanic Isolation

Input/Output	Basic insulation, 300 Veff
Input/Power Supply	Basic insulation, 300 Veff
Output/Power Supply	Reinforced insulation, 300 Veff

Indicators & Configuration

Display	LED status indicator
Test Sockets	Integrated for HART communicator
Alarm Detection	Lead breakage detection

Certifications & Compliance

Functional Safety	SIL 2 (SC 3) – IEC/EN 61508
ATEX	CESI 06 ATEX 021 X
IECEx	IECEx CES 06.0001X
Marking	Ex ia / Ex ec IIC T4 Gc
UL/cUL	E106378 (Control Drawing 116-0459)
FM Approval	FM 18 CA 0116 X, FM 19 US 0117 X
EMC Compliance	EN 61326-1:2013, EN 61326-3-2:2018
Protection Rating	IP20

Frequently Asked Questions

How can I check whether KCD2-SCD-Ex1 is the correct replacement?

Check the motor rating, supply voltage, drive output current, enclosure rating and control interface against your existing installation or the relevant manufacturer datasheet.

How quickly can KCD2-SCD-Ex1 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight	1 kg
