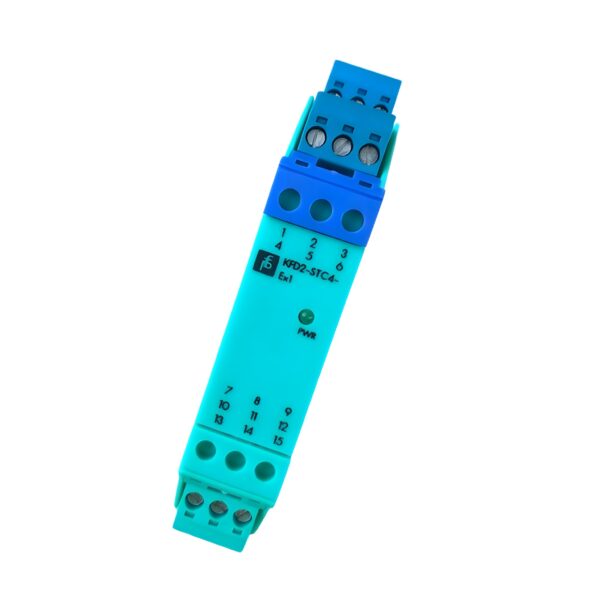

Pepperl Fuchs KFD2-STC4-Ex1 Transmitter Power Supply (283672)

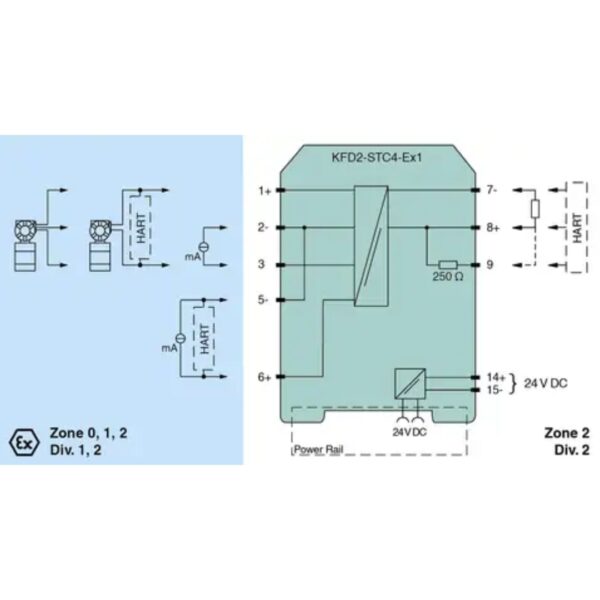

P&F KFD2-STC4-Ex1 is a 1-channel SMART transmitter power supply designed for intrinsically safe signal transfer from 2-wire and 3-wire transmitters and SMART current sources. It converts analog input signals into isolated 0/4–20 mA outputs for safe area applications, while supporting HART, BRAIN, and Foxboro communication. With internal resistance for reliable HART communication, SIL 2 compliance, and fast response times, it ensures high-integrity loop performance in Ex environments.
Technical Specifications
- Model: KFD2-STC4-Ex1
- Function: SMART Transmitter Power Supply
- Channels: 1
- Input Signal: 0/4 … 20 mA
- Output Signal: 0/4 … 20 mA (overload > 25 mA)
- Power Supply: 20 … 35 V DC (via Power Rail or terminals)
- Signal Direction: Field to control side
- Mounting: 35 mm DIN rail (EN 60715)
- Connection Type: Screw terminals with integrated HART test points
Electrical Features
- Isolation: 3-way isolation between input/output/power
- Operating Modes: Analog current transmission with HART support
- Signal Type: Analog 0/4–20 mA with HART, BRAIN, and Foxboro compatibility
- Load Resistance: 0 … 800 Ω at 20 mA
- Ripple: Max. 50 µA rms
- Transfer Accuracy: ≤ 10 µA at 20 °C
- Frequency Range: 0 … 7.5 kHz (bi-directional)
- Settling Time: 200 µs
- Rise/Fall Time: 20 µs
Environmental Conditions
- Temperature Range: -20 … 60 °C
- Protection: IP20
- Weight: Approx. 200 g
- Housing Type: B2 (20 x 124 x 115 mm)
- Approvals: ATEX, IECEx, UL, FM
Hazardous Area Compliance
- Zone Classification: Zone 0, 1, 2 / Div. 1, 2
- ATEX Marking: II (1) G [Ex ia Ga] IIC / II (1) D [Ex ia Da] IIIC / I (M1) [Ex ia Ma] I
- IECEx Marking: [Ex ia Ga] IIC, [Ex ia Da] IIIC, Ex nA IIC T4 Gc
- SIL Rating: SIL 2 compliant (IEC/EN 61508)
Key Features & Benefits
✅ Universal Input: Supports 2-wire/3-wire transmitters and SMART current sources.
✅ Signal Integrity: Isolated 0/4–20 mA output with high accuracy.
✅ Protocol Compatible: Works with HART, BRAIN, and Foxboro.
✅ Fast Dynamics: 200 µs settling and 7.5 kHz bandwidth.
✅ SIL 2 Certified: Proven performance in safety-related systems.
📦 Buy Pepperl+Fuchs KFD2-STC4-Ex1 from Drive Outlet Megastore
At Drive Outlet Megastore we offer unbeatable KFD2-STC4-Ex1 prices.
Dependable loop isolation and SMART signal transmission in Ex areas—ideal for demanding industrial analog signal chains.
In stock now and fast delivery available.
