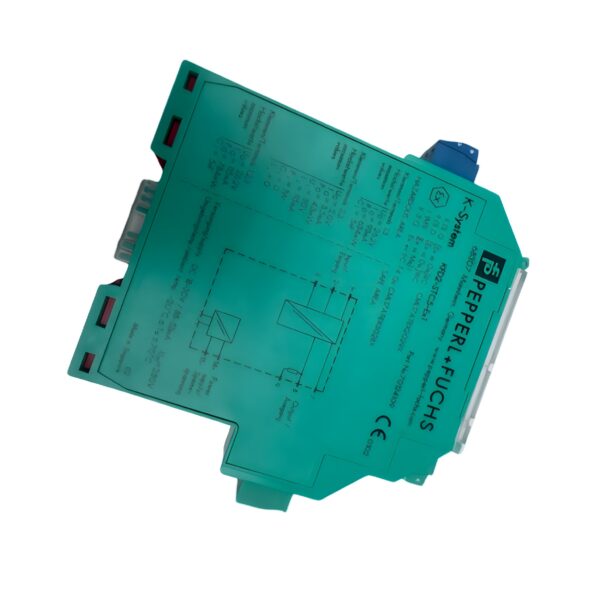

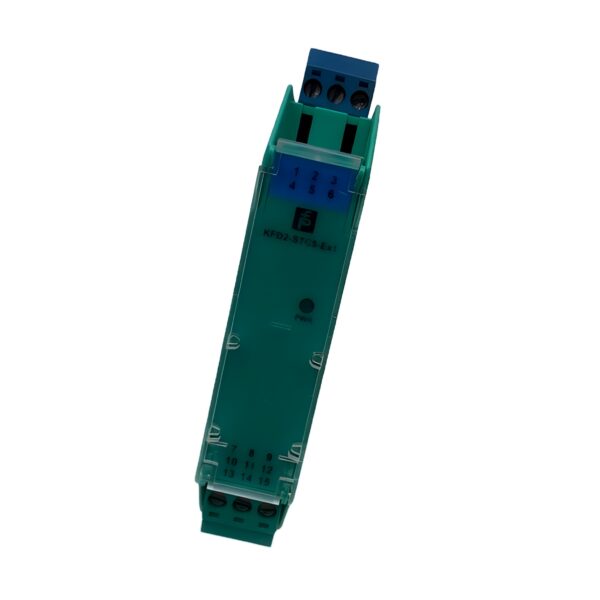

Pepperl+Fuchs KFD2-STC5-Ex1 Transmitter Power Supply (70124109)

£293.19 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsPepperl+Fuchs
Model KFD2-STC5-Ex1
Connection Type Screw terminals with HART test sockets
Signal Type Analog 4–20 mA with HART, BRAIN, and Foxboro support
Housing Type B2 (20 x 124 x 115 mm)
Protection IP20
Frequency Range 0 … 7.5 kHz (bi-directional)
Mounting 35 mm DIN rail (EN 60715)
Ripple Max. 50 µA rms
Temperature Range -20 … 70 °C
Weight Approx. 150 g
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: KFD2-STC5-Ex1 Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Pepperl+Fuchs KFD2-STC5-Ex1 Transmitter Power Supply (70124109)

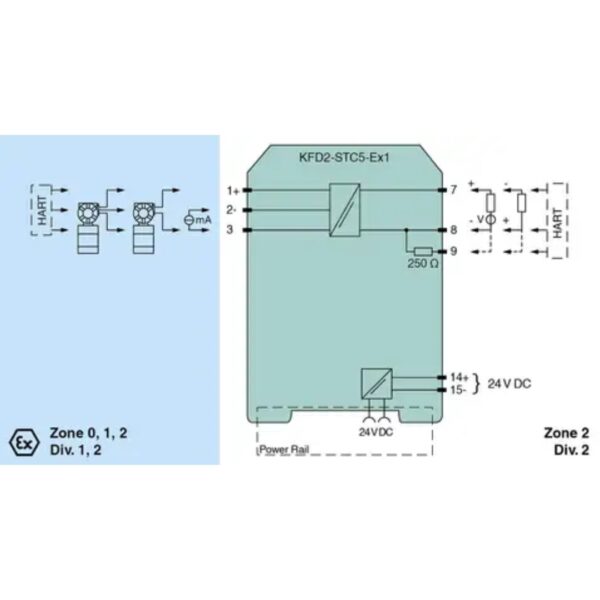

P&F KFD2-STC5-Ex1 is a 1-channel SMART transmitter power supply engineered for use in hazardous areas with 2-wire and 3-wire transmitters or SMART current sources. Designed for safe analog signal transmission, it provides selectable current sink or source output modes and supports bi-directional HART, BRAIN, and Foxboro communication.

Technical Specifications

Model KFD2-STC5-Ex1
Function SMART Transmitter Power Supply
Channels 1
Input Signal 4 … 20 mA
Output Signal 4 … 20 mA (sink/source selectable)
Power Supply 18 … 30 V DC (via Power Rail or terminals)
Signal Direction Field to control side
Mounting 35 mm DIN rail (EN 60715)
Connection Type Screw terminals with HART test sockets

Electrical Features

Isolation 3-way isolation between input/output/power
Operating Modes Current source or sink selectable
Signal Type Analog 4–20 mA with HART, BRAIN, and Foxboro support
Ripple Max. 50 µA rms
Load Resistance 0 … 800 Ω
Transfer Accuracy ≤ 10 µA at 20 °C
Frequency Range 0 … 7.5 kHz (bi-directional)
Settling Time 200 µs
Rise/Fall Time 100 µs

Environmental Conditions

Temperature Range -20 … 70 °C
Protection IP20
Weight Approx. 150 g
Housing Type B2 (20 x 124 x 115 mm)
Approvals ATEX, IECEx, UL, FM

Hazardous Area Compliance

Zone Classification Zone 0, 1, 2 / Div. 1, 2
ATEX Marking II (1) G [Ex ia Ga] IIC / II (1) D [Ex ia Da] IIIC / I (M1) [Ex ia Ma] I
IECEx Marking [Ex ia Ga] IIC, [Ex ia Da] IIIC, Ex ec IIC T4 Gc
SIL Rating SIL 2 compliant (IEC/EN 61508)
