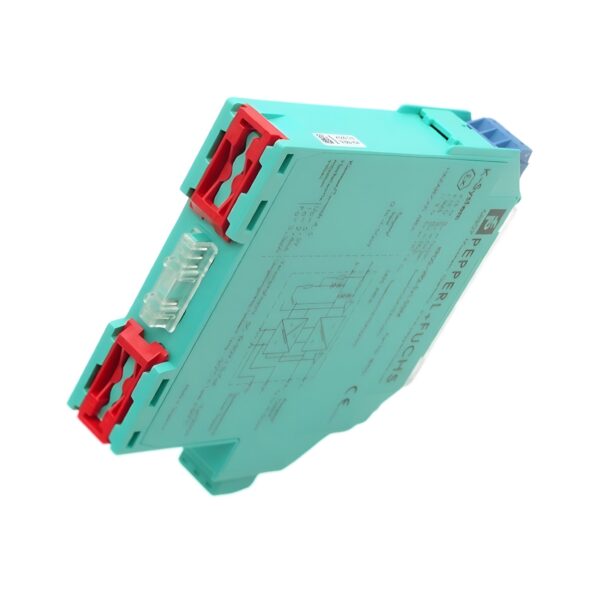

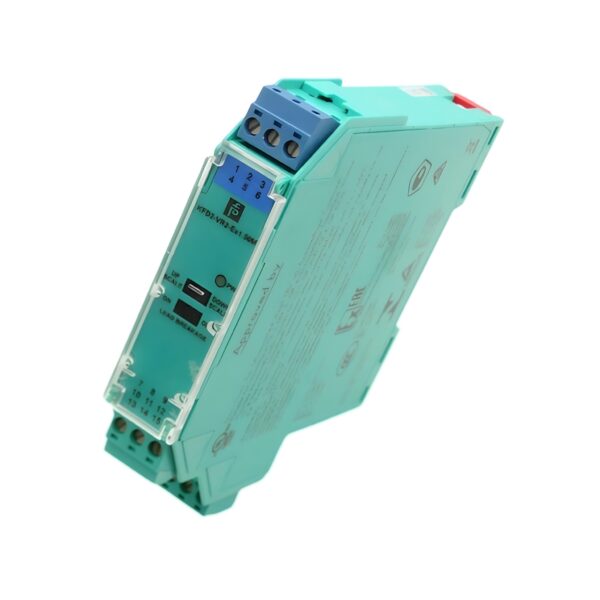

Pepperl+Fuchs KFD2-VR2-Ex1.50M Voltage Repeater (181951)

Name: Pepperl+Fuchs KFD2-VR2-Ex1.50M Voltage Repeater (181951)
SKU: KFD2-VR2-Ex1.50M
Price: 362.19 GBP
Availability: InStock

£362.19 inc VAT

In Stock · Delivered in 3–5 Working Days

Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.

Technical SpecificationsPepperl+Fuchs

Model	KFD2-VR2-Ex1.50M
Dimensions	20 × 119 × 115 mm (W × H × D)
Type of Protection	Ex ec IIC T4 Gc
Cut-off Frequency	350 Hz (–3 dB)
Mounting	DIN rail (35 mm, EN 60715)
Weight	Approx. 125 g
Max Safe Voltage (Um)	250 V
Protection Class	IP20
Function	Voltage signal repeater for hazardous area applications
Channels	1

✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: KFD2-VR2-Ex1.50M Category: Pepperl+Fuchs Modules Tag: KFD2-VR2-Ex1.50M Brand: Pepperl+Fuchs

Guaranteed Safe Checkout

Extra Features

100% Brand New & Genuine OEM Product
Includes Full 2-Year Warranty for Peace of Mind
Fast UK & Worldwide Shipping – Fully Tracked
Expert Technical Support from Our In-House Engineers
Found a Better Price? We’ll Match or Beat It Instantly

Pepperl+Fuchs KFD2-VR2-Ex1.50M Voltage Repeater (181951)

P&F KFD2-VR2-Ex1.50M is a 1-channel voltage repeater that transfers ultra-low voltage signals (±50 mV) from load cells, strain gauges, or inductive oscillation sensors in hazardous areas to the safe zone. Designed for high-precision applications, it offers configurable lead break detection and galvanic isolation between input, output, and power circuits.

Technical Specifications

Model	KFD2-VR2-Ex1.50M
Function	Voltage signal repeater for hazardous area applications
Channels	1
Input Signal	±50 mV from load cells, strain gauges, or op-amps
Output Signal	±50 mV to control system
SIL Rating	SIL 2 compatible

Electrical Features

Input Terminals	4+, 5- (field side)
Input Resistance	≥ 20 MΩ
Output Terminals	7+, 8- (control side)
Output Resistance	Max. 3 Ω
Fault Detection	Configurable upscale/downscale via DIP switches
Line Fault Signal	> +100 mV (upscale), < –100 mV (downscale)
Accuracy	±3 µV to ±0.05% span (post power-up)
Cut-off Frequency	350 Hz (–3 dB)
Rise Time	≤ 1 ms

Environmental Conditions

Operating Temperature	–40 … +60 °C (extendable to +70 °C)
Protection Class	IP20
Mounting	DIN rail (35 mm, EN 60715)
Dimensions	20 × 119 × 115 mm (W × H × D)
Weight	Approx. 125 g

Hazardous Area Compliance

Zones	Zone 0, 1, 2 / Div. 1, 2
ATEX Marking	II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC
IECEx Marking	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Type of Protection	Ex ec IIC T4 Gc
Max Safe Voltage (Um)	250 V
Galvanic Isolation	375 V peak, input/output/power

Frequently Asked Questions

How can I check whether KFD2-VR2-Ex1.50M is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can KFD2-VR2-Ex1.50M be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight	0.125 kg
