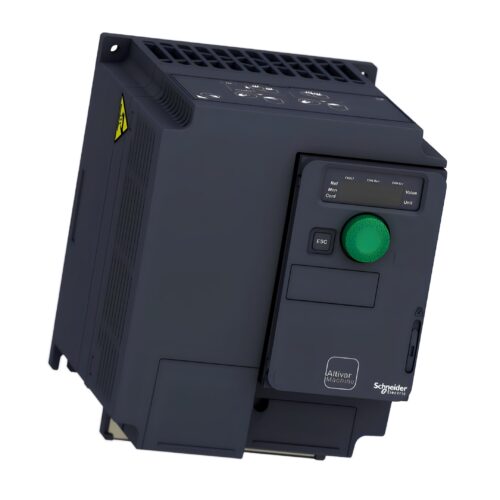

Schneider ATV320U07N4B Inverter Drive – 0.75kW, 380V, IP20

The Schneider ATV320U07N4B is a high-performance Altivar Machine ATV320 inverter drive, delivering 0.75 kW of motor control on a 380–500 V three-phase supply. It features an integrated EMC filter (Class C2) and an IP20-rated chassis, making it suitable for panel-mounted industrial automation systems.

Engineered for demanding applications, this drive supports both synchronous and asynchronous motors in open or closed-loop control. It’s designed for machine builders seeking fast response, robust performance, and seamless integration with PLCs and HMIs.

Technical Specifications

• Model: ATV320U07N4B
• Type: High-Efficiency Variable Speed Drive

Power & Performance

• Power Rating: 0.75 kW
• Phase: Three-phase
• Mains Voltage: 380 – 500 VAC
• Nominal Output Current: 2.3 A
• Motor Control: Asynchronous & Synchronous Motors
• Braking Chopper: Integrated

Build & Design

• Enclosure Type: IP20
• Mounting Mode: Cabinet Mount
• Communication Protocols: Modbus Serial, CANopen
• Option Cards Available: CANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet

Physical Specifications

• Gross Weight: 2.346 kg
• Net Weight: 2.5 kg

Dimensions:

• Height: 325 mm
• Width: 45 mm
• Depth: 245 mm
• EAN: 3606480966408

Additional Options & Features

• Integrated EMC Filter: Class C2
• Safety Functions: STO, SS1
• Operating Temperature: -10°C to 50°C (without derating)
• Switching Frequency: Adjustable (2-16 kHz)

Compliance & Standards

• Certifications: CE, UL, CSA, NOM, EAC, RCM
• Standards: IEC/EN 61800-5-1, IEC/EN 61800-3
• Environmental Class: IEC 60721-3-3 (3C3, 3S2)

Key Features & Benefits:

✅ Energy-Efficient Performance: Designed to optimize motor control and reduce energy costs.

✅ Compact & Durable: Book format for easy integration into control cabinets.

✅ Advanced Communication: Supports multiple protocols for seamless integration.

✅ Optimized for OEM Applications: Ideal for conveyors, pumps, and automation systems.
