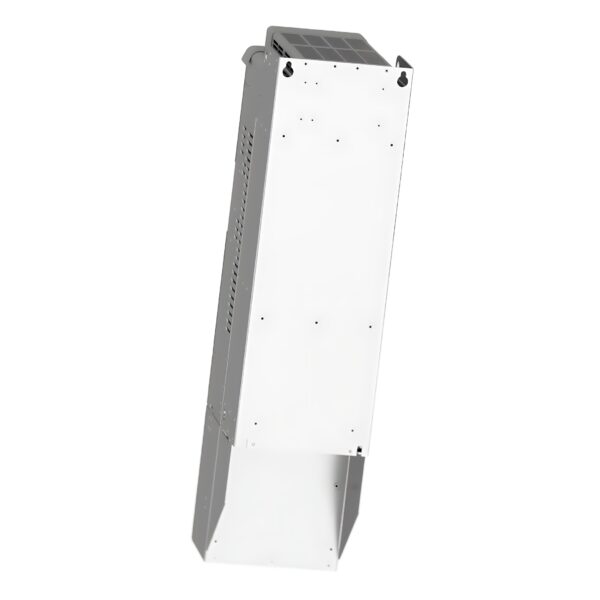

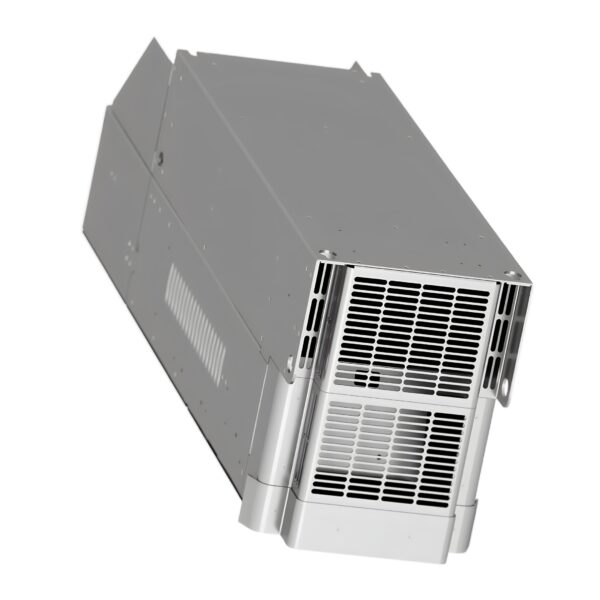

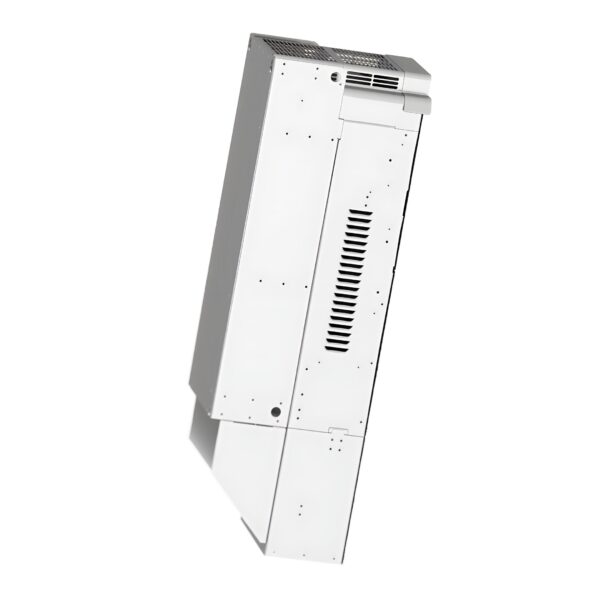

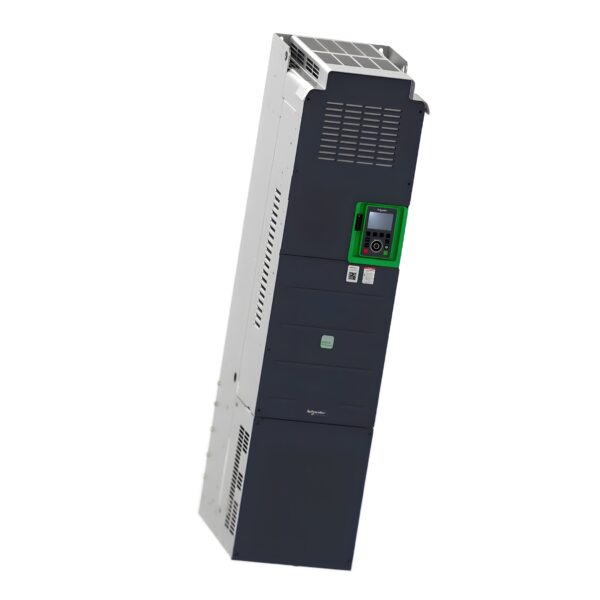

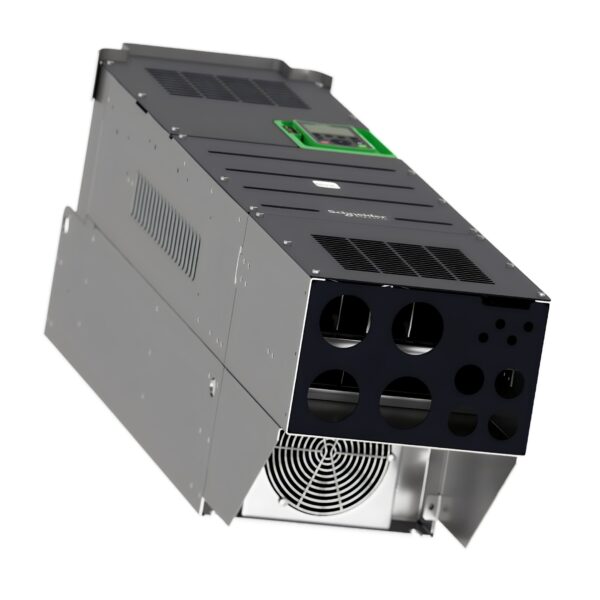

Schneider ATV930C13N4 Inverter Drive – 132kW, 400V, IP21

The Schneider ATV930C13N4 is a high-performance Altivar Process ATV930 inverter drive, delivering 132 kW of heavy-duty motor control on a 400 V three-phase supply. It features an integrated EMC filter and an IP21-rated chassis, making it suitable for panel-mounted industrial automation systems.

Engineered for demanding applications, this drive supports both synchronous and asynchronous motors in open or closed-loop control. It’s designed for machine builders seeking fast response, robust performance, and seamless integration with PLCs and HMIs.

Technical Specifications

• Model: ATV930C13N4
• Type: Industrial Process Variable Speed Drive

Power & Performance

• Power Rating: 132 kW (Normal Duty) / 110 kW (Heavy Duty)
• Phase: Three-phase
• Mains Voltage: 380 – 480 VAC
• Nominal Output Current: 250 A (Normal Duty) / 211 A (Heavy Duty)
• Motor Compatibility: Asynchronous & Synchronous Motors
• Braking Chopper: Integrated

Build & Design

• Enclosure Type: IP20 (IEC 60529)
• Mounting Mode: Wall Mount
• Communication Protocols: Modbus TCP, Ethernet/IP, Modbus Serial
• Option Slots Available: Expansion modules, I/O modules, additional communication modules

Physical Specifications

• Gross Weight: 128 kg
• Net Weight: 104 kg

Dimensions:

• Height: 1205 mm
• Width: 320 mm
• Depth: 393 mm
• EAN: 3606481490391

Additional Options & Features

• Integrated EMC Filter: Class C3
• Safety Functions: STO (Safe Torque Off) SIL 3, Safe Stop 1 (SS1), Safe Brake Control (SBC/SBT)
• Operating Temperature: -15°C to 50°C (without derating)
• Switching Frequency: Adjustable (1-8 kHz)

Compliance & Standards

• Certifications: CE, UL, CSA, TÜV
• Standards: IEC 61800-5-1, IEC 61800-3, IEC 61508, IEC 13849-1
• Environmental Class: IEC 60721-3 (Industrial Applications)

Key Features & Benefits:

✅ Energy-Efficient Performance: Integrated braking chopper for efficient braking control.

✅ Advanced Process Control: Embedded monitoring for real-time asset management.

✅ Seamless Connectivity: Multiple industrial communication options available.

✅ Optimized for Industrial Automation: Ideal for conveyors, pumps, fans, compressors, and processing lines.
