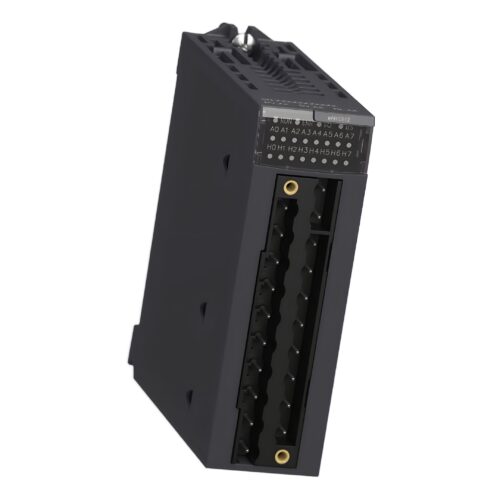

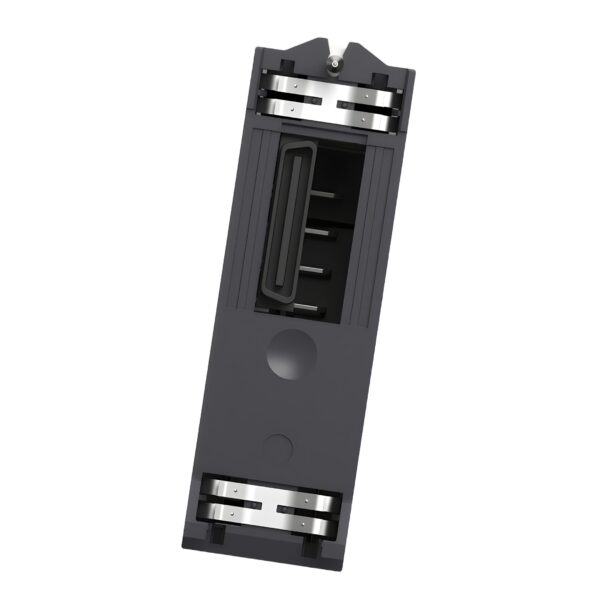

Schneider BMXEHC0800 High Speed Counter Module

The Schneider BMXEHC0800 is a high-performance Modicon X80 counter module, providing 8 channels of high-speed counting on a 24V DC input. It features IP20-rated protection, making it suitable for panel-mounted industrial automation systems.

Engineered for demanding applications, this module supports various counting functions, including loop (modulo) counting, down counting, count events, and 32-bit counter counting. It’s designed for machine builders seeking fast response, robust performance, and seamless integration with PLCs and HMIs.

Technical Specifications

Model: BMXEHC0800
Type: High-Speed Counter Module for Modicon M340

Performance & Capacity

• Number of Channels:
  • 8 Channels
• Number of Inputs:
  • 2 (Single Mode)
  • 3 (Special Dual Phase Mode)
• Maximum Counting Frequency:
  • 10,000 Hz
• Input Voltage:
  • 24V DC (Type 3)
• Input Voltage Limits:
  • 30V
• Input Current:
  • 2 mA at 11V
• Voltage State 1 Guaranteed:
  • 11V to 30V
• Current State 1 Guaranteed:
  • ≥ 6 mA
• Voltage State 0 Guaranteed:
  • < 5V
• Current State 0 Guaranteed:
  • ≤ 1.5 mA
• Counter Functions:
  • Up/Down Counter
  • 32-bit Counter Counting
  • Frequency Meter
  • Loop (Modulo) Counting
  • Count Events
  • Down Counting
• Cycle Time:
  • 5 ms
• Isolation Voltage:
  • 1500V for 60s
• Input Compatibility:
  • 19.2V to 30V 2-Wire/3-Wire Proximity Sensor
  • Incremental Encoder with Push-Pull Outputs
  • 10V to 30V Totem Pole

Connectivity & Controls

• Electrical Connection:
  • 20-Pin Connector
• Current Consumption:
  • 200mA at 3.3V DC (Bus)
  • 80mA at 24V DC (Sensor)
• Module Format:
  • Standard

Power & Environmental Specifications

• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 10% to 95% (Non-Condensing)
• IP Degree of Protection: IP20
• Vibration Resistance: 3 gn
• Shock Resistance: 30 gn

Physical Specifications

• Net Weight: 0.113 kg
• Package 1 Dimensions (H x W x L): 5.20 cm x 11.00 cm x 11.80 cm
• Package 1 Weight: 143 g
• Package 2 Dimensions (H x W x L): 15.00 cm x 30.00 cm x 40.00 cm
• Package 2 Weight: 2.39 kg
• Number of Units in Package 1: 1
• Number of Units in Package 2: 15

Certifications & Compliance

• Product Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
• Standards:
  • EN/IEC 61010-2-201
  • EN/IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201

Key Features & Benefits:

✅ Ultra-Fast Counting: Supports up to 10,000 Hz frequency.

✅ Advanced Counting Modes: Up/down, modulo, and frequency meter capabilities.

✅ Versatile Input Compatibility: Works with proximity sensors and incremental encoders.

✅ High Accuracy & Precision: 32-bit counting for real-time processing.

✅ Robust & Reliable: Designed for industrial environments with IP20 protection.

✅ Compact & Modular: Fits seamlessly into Modicon M340 racks.
