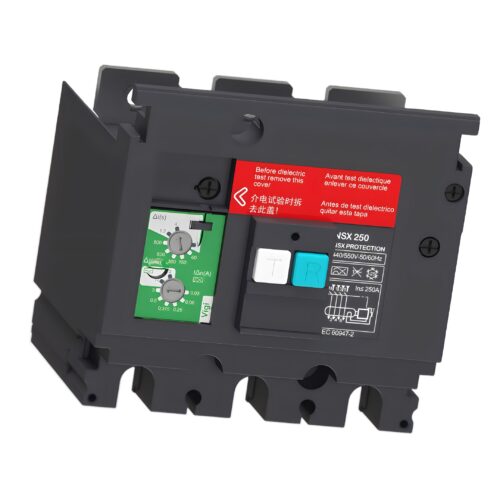

Schneider LV429493 Earth-leakage VigiPacT Module – 4 Poles

The LV429493 Schneider is a VigiPacT earth-leakage alarm module designed to enhance protection in low-voltage power distribution systems. Tailored for use with ComPacT NSX250 circuit breakers, it supports 4-pole configurations and operates at 200–440 VAC, 50/60 Hz.

It offers adjustable sensitivity from 30 mA to 30 A, enabling early fault detection with alarm functionality without tripping the breaker. Powered by the system voltage—even with only two phases connected—it meets IEC 60947-2 Annex B standards for reliable use in industrial and commercial environments.

Technical Specifications

• Model: LV429493
• Type: VigiPacT Add-On Earth-Leakage Module
• Brand: Schneider Electric
• Range: ComPacT NSX New Generation

Power & Performance

• Compatible Frames: ComPacT NSX250 Circuit Breakers
• Poles: 4P (Four Poles)
• Rated Current Compatibility: 250 A
• Rated Operational Voltage (Ue): 200…440 V AC 50/60Hz
• Network Type: AC
• Network Frequency: 50/60 Hz
• Overvoltage Category: IV

Advanced Earth-Leakage Protection

• Earth-Leakage Protection Class: Class A / Class AC
• Adjustable Sensitivity Range:
  • Class A: 30 mA / 100 mA / 300 mA / 500 mA / 1 A / 3 A
  • Class AC: 10 A / 30 A
• Time Delay Settings (Δt): Adjustable
  • 0 ms / 60 ms / 150 ms / 300 ms / 500 ms / 800 ms / 1.2 s / 4 s
• Maximum Breaking Time: 800 ms

Installation & Operation

• Mounting: Directly on circuit breaker terminals
• Operation:
  • Self-powered by the distribution system voltage (operates even with only 2 phases)
  • Directly actuates the trip unit during earth-leakage fault
• Application: Wiring and earth-leakage protection for ComPacT NSX250 breakers

Compliance & Standards

• Standards: IEC 60947-2 Annex B
• Electrical Shock Protection: Class II

LV429493 Physical Specifications

• Gross Weight: 1.300 kg
• Dimensions:
  • Height: 13.5 cm
  • Width: 14.2 cm
  • Length: 17.2 cm

Environmental Specifications

• Carbon Footprint: 30 kg CO₂-eq (Total Life Cycle)
• Recycled Metal Content: 0%

Key Features & Benefits

✅ Fully Integrated Earth-Leakage Protection: Ensures safety and regulatory compliance with IEC standards.

✅ Wide Sensitivity Adjustment: From 30 mA to 30 A for precise protection settings across applications.

✅ Flexible Time Delay Adjustments: Multiple delay settings for better system selectivity and nuisance trip prevention.

✅ Self-Powered Operation: Maintains functionality even when only two phases are present.

✅ Easy Integration: Designed for seamless mounting on ComPacT NSX250 breakers.
