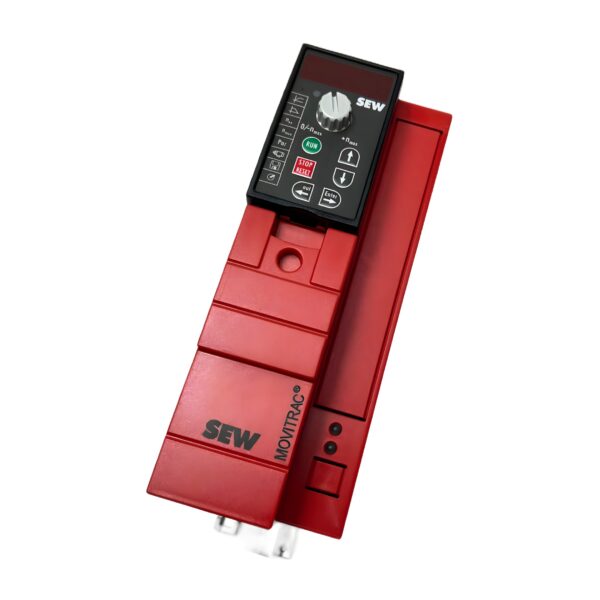

SEW MC07B0005-5A3-4-00 Inverter Drive – 0.55kW, 3PH, IP20

The SEW-Eurodrive MC07B0005-5A3-4-00 is a powerful and compact inverter drive from the proven MOVITRAC B series, engineered for efficient V/f motor control in industrial and general-purpose automation. Rated at 0.55kW (0.75 HP), it supports input voltages from 380 to 500V (3-phase) and provides output up to 600Hz, making it ideal for conveyor systems, fans, pumps, and other variable torque applications.

With a built-in RS485 interface (Modbus RTU), IP20 enclosure, and a wide operating temperature range, this model offers high reliability and integration flexibility.

Technical Specifications

Manufacturer: SEW-Eurodrive
Series: MOVITRAC B
Model: MC07B0005-5A3-4-00
Application: General-purpose motor control
Control Method: V/f (Voltage/Frequency)
Communication: RS485 (Modbus RTU)

Electrical Specifications

Power Rating: 0.55 kW / 0.75 HP
Input Voltage: 3-phase 380–500 V ±10%, 50/60Hz
Input Current: 1.8 A
Output Voltage: 3-phase 0–U (dependent on supply)
Output Frequency: 0–600 Hz
Output Current: 2.00 A
Overload Capacity: 150% for 1 minute

Inputs & Outputs

• Analog Inputs: 1
• Digital Inputs: 6
• Analog Outputs: –
• Digital Outputs: 3
• Relay Outputs: 1
• Serial Communication: RS485 (Modbus RTU)

Mechanical & Environmental

Enclosure Rating: IP20 (for cabinet installation)
Cooling: Integrated fan
Ambient Temperature: –10°C to +50°C
Mounting: Wall or panel mount
Dimensions: See datasheet for exact frame size

Key Features & Benefits

✅ 0.55kW (0.75HP) output ideal for pumps, fans, conveyors.

✅ 600Hz output frequency for extended motor performance.

✅ RS485 Modbus RTU built-in for easy integration.

✅ 150% overload for 1 min ensures dependable operation.

✅ Compact IP20 format for seamless panel installation.
