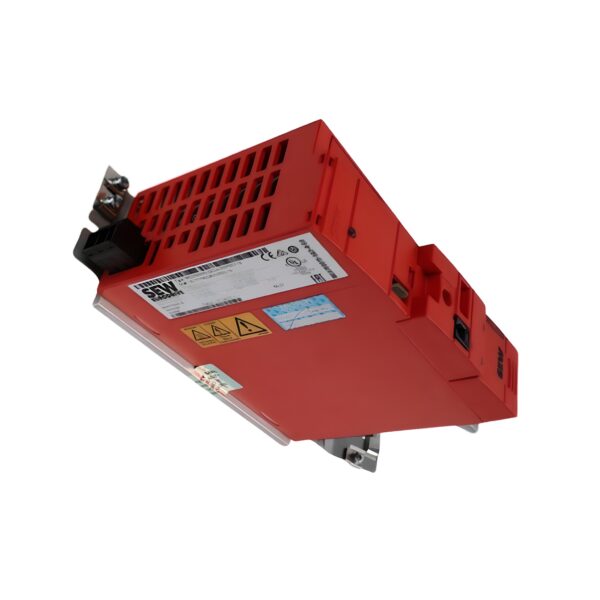

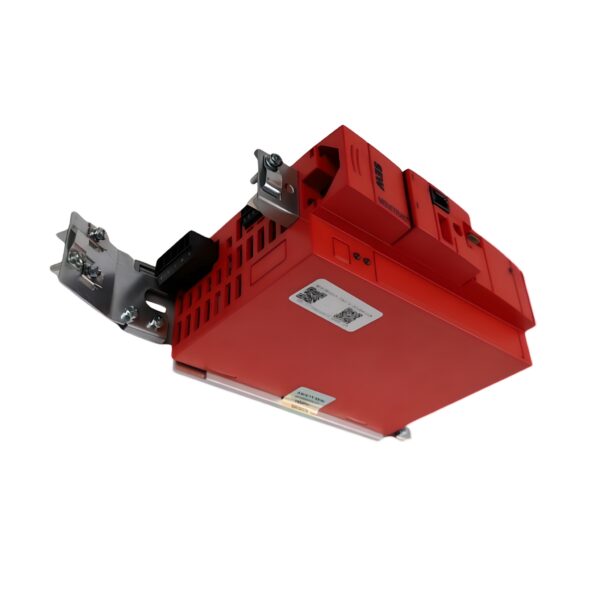

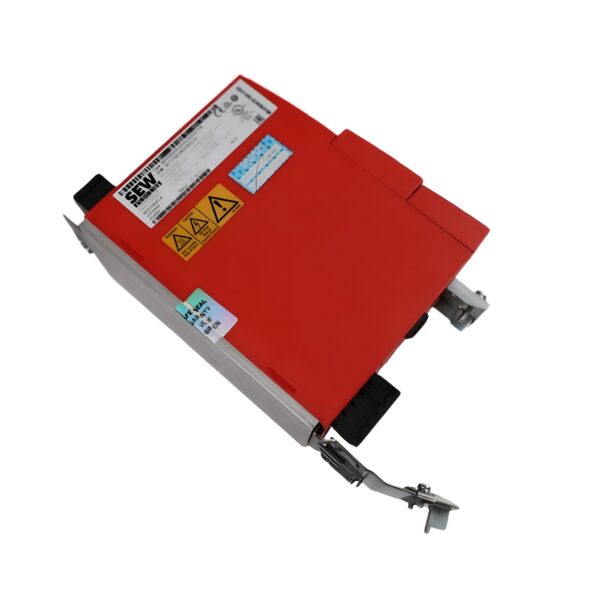

SEW MC07B0015-5A3-4-S0 Inverter Drive – 1.5kW, 3PH, IP20
The SEW-Eurodrive MC07B0015-5A3-4-S0 is a high-reliability 1.5kW (2HP) frequency inverter from the versatile MOVITRAC B Series, designed for precision control of small motors in automation, conveyor, and pump systems. This variant features integrated Safe Stop functionality for enhanced machine safety, along with a brake chopper for dynamic deceleration.
With V/f control and 4-quadrant operation, it ensures smooth and reliable performance in 3-phase 380–500V networks. Built with an IP20 housing, it’s ideal for clean cabinet installation.
Technical Specifications
Manufacturer: SEW-Eurodrive
Series: MOVITRAC B
Model: MC07B0015-5A3-4-S0
Application: General purpose – automation, conveyors, small machines
Control Type: V/f (Voltage/Frequency)
Safety Function: Integrated Safe Stop
EMC Filter: C2 included
Electrical Specifications
Power Rating: 1.5 kW / 2 HP
Input Voltage: 3-phase 380–500 V ±10%, 50/60 Hz
Output Voltage: 0–UN
Output Frequency: 0–599 Hz
Overload Capacity: 150% for 60 seconds
Braking Function: Built-in brake chopper (4Q operation)
Inputs & Outputs
- Analog Inputs: 1
- Digital Inputs: 6
- Analog Outputs: –
- Digital Outputs: 3
- Relay Outputs: 1
- Communication: RS485 (Modbus RTU)
Mechanical & Environmental
Enclosure Rating: IP20
Cooling: Air cooled
Operating Temperature: 0°C to +50°C
Mounting: Panel mount
Form Factor: Compact footprint for space-saving cabinet integration
Key Features & Benefits
✅ 1.5kW output power for small industrial loads.
✅ Safe Stop function for added safety compliance.
✅ Integrated brake chopper for effective motor braking.
✅ RS485 Modbus RTU communication port.
✅ Multiple digital/analog I/Os for control versatility.
✅ IP20 panel-mount housing with EMC Class C2 filter.
📦 Order the SEW-Eurodrive MC07B0015-5A3-4-S0 Today
At Drive Outlet Megastore, we offer unbeatable SEW MC07B0015-5A3-4-S0 prices – available now and ready to ship. Designed for reliability and safety, this drive is ideal for your automation needs.
Contact us now for pricing, expert support, and fast delivery!
SEW-Eurodrive – Engineered to Perform.
