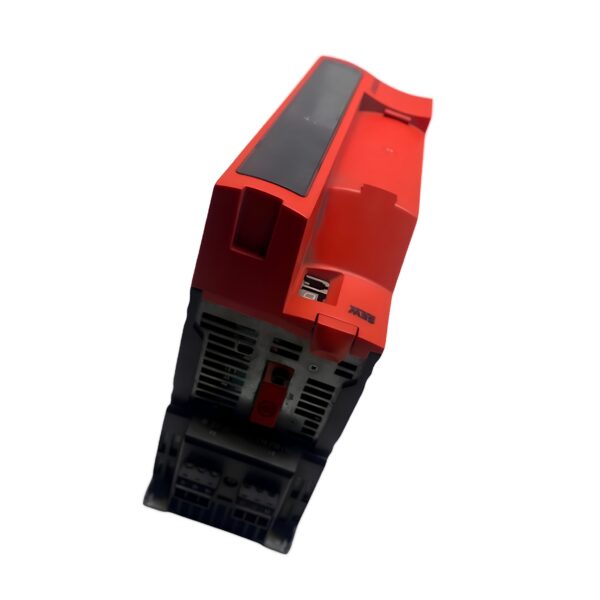

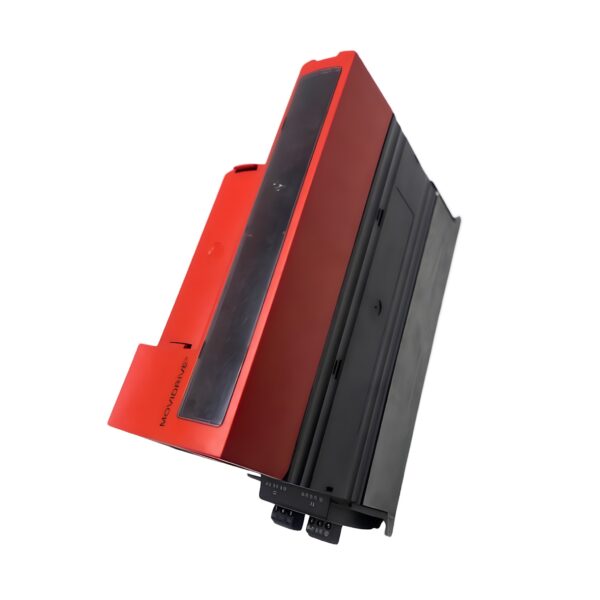

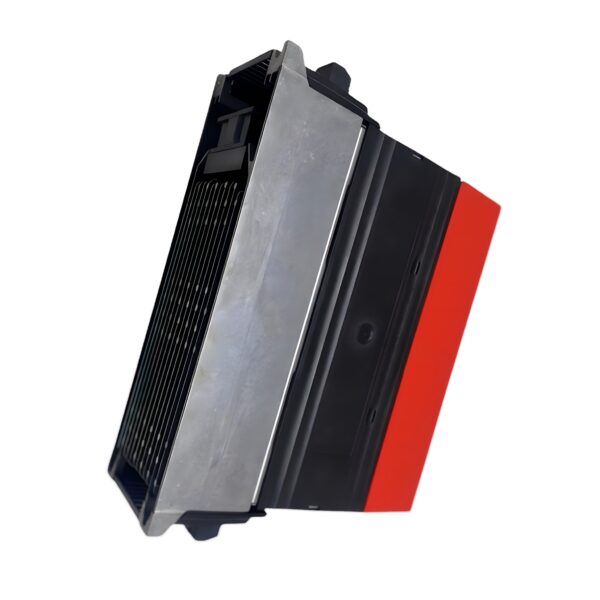

SEW MDX61B0022-5A3-4-0T Inverter Drive – 2.2kW, 380V, IP20

The SEW MDX61B0022-5A3-4-0T is a robust AC inverter drive from the MOVIDRIVE® B series, designed for controlling asynchronous motors in demanding industrial applications.

Rated at 2.2 kW motor power, it operates on a 3-phase supply voltage of 380–500 V AC, delivering up to 5.5 A output current. This model includes radio interference suppression, ensuring EMC compliance in industrial environments.

Packaged in an IP20 enclosure, the 0T variant is ideal for cabinet-mounted installations and weighs 10.32 lbs (approx. 4.68 kg).

Note: This model has been discontinued by the manufacturer, but remains available as part number MDX61B00225A340T for replacement and support purposes.

Technical Specifications

Model: MDX61B0022-5A3-4-0T
Part Number: MDX61B00225A340T
Product Type: AC Inverter Drive
Series: MOVIDRIVE® B
Power Rating: 2.2 kW / 3 HP
Input Voltage: 3 × 380–500 V AC
Input Frequency: 50 / 60 Hz
Output Current: 5.5 A
Output Voltage: 0–input voltage (VIN)
Enclosure Rating: IP20
Variant: 0T
Weight: 10.32 lbs (approx. 4.68 kg)
EMC: Integrated radio interference suppression

Electrical & Control Features

Control Methods:

• V/f (voltage/frequency) control
• Sensorless vector control

Built-In Protections:

• Overload and short-circuit protection
• Over/undervoltage monitoring
• Thermal shutdown

Expansion Options:

• Fieldbus and I/O modules (optional)
• Parameter cloning and diagnostics via SEW tools

Mechanical & Environmental

Mounting Type: Panel/cabinet mounting
Cooling Method: Internal fan-cooled
Ambient Operating Temperature: 0°C to +50°C
Protection Class: IP20
Drive Format: Compact 0T housing for space-limited panels

Applications

Ideal For:

• Conveyors and lifting systems
• Pumps and blowers
• Packaging and material handling machinery
• OEM equipment requiring compact drives

Key Features & Benefits

✅ High Motor Power: 2.2 kW performance for robust industrial loads.

✅ EMC-Compliant: Built-in radio interference suppression.

✅ Global Voltage Compatibility: 380–500 V AC 3-phase input.

✅ Compact 0T Design: IP20 enclosure for secure cabinet integration.

✅ Discontinued Model: Still available for retrofit and legacy support.
