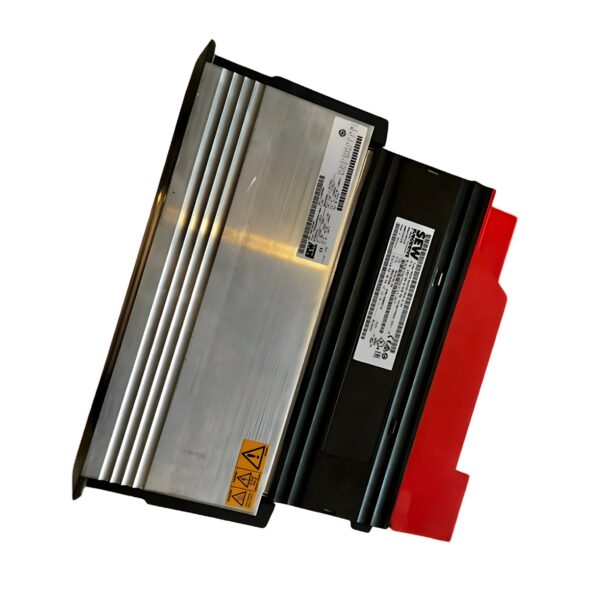

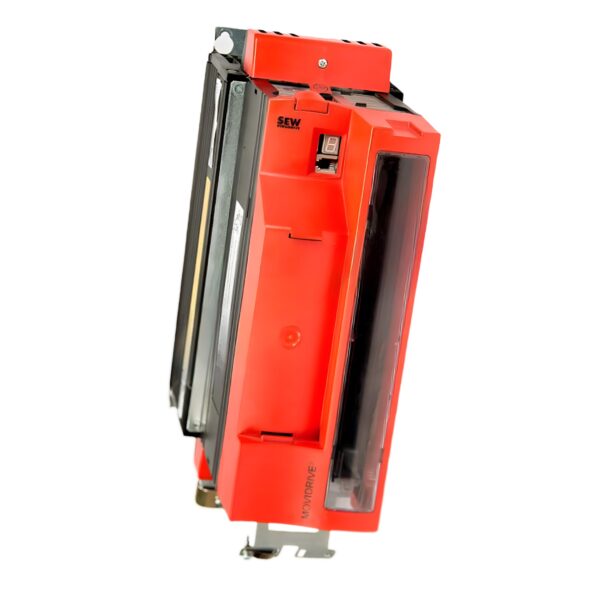

SEW MDX61B0055-5A3-4-0T Inverter Drive – 5.5kW, 380V, IP20

The SEW MDX61B0055-5A3-4-0T is a powerful and compact inverter drive from the MOVIDRIVE® B series, designed for high-efficiency motor control in industrial systems requiring robust performance and precise regulation.

Rated at 5.5 kW, this Size 2S drive operates on 3-phase 500 VAC supply voltage, offering reliable operation for automation tasks involving conveyors, machinery, and process equipment.

This model is the 0T variant, housed in an IP20-rated enclosure suitable for control cabinet mounting. Weighing 13.25 lbs (approx. 6 kg), it is ideal for installations where performance and space efficiency are key.

Note: This model has been discontinued by the manufacturer, but is still available for legacy system support under part number MDX61B00555A340T.

Technical Specifications

Model: MDX61B00555A340T
Part Number: MDX61B00555A340T
Product Type: Inverter Drive
Series: MOVIDRIVE® B
Power Rating: 5.5 kW / 7.5 HP
Input Voltage: 3 × 500 V AC
Input Frequency: 50 / 60 Hz
Drive Size: 2S
Enclosure Rating: IP20
Variant: 0T
Weight: 13.25 lbs (approx. 6.0 kg)

Electrical & Control Features

Control Modes:

• V/f (voltage/frequency) control
• Sensorless vector control

Integrated Functions:

• Voltage and current monitoring
• Overload, short-circuit, and thermal protection
• Configurable acceleration/deceleration ramps

Expansion Capability:

• Supports SEW add-on cards for fieldbus and I/O
• Optional encoder interface for advanced control

Mechanical & Environmental

Mounting Type: Cabinet (vertical panel mount)
Cooling Method: Internal fan-cooled
Operating Temperature Range: 0°C to +50°C
Protection Class: IP20
Construction: Compact and modular with top and bottom airflow

Applications

Ideal For:

• Industrial conveyor systems
• Material handling equipment
• Pumps, mixers, and agitators
• General-purpose AC motor control
• OEM machinery and automation

Key Features & Benefits

✅ High Power Rating: 5.5 kW for demanding industrial loads.

✅ Global Voltage Ready: Supports 500 V AC 3-phase supply.

✅ Reliable Design: Field-proven SEW technology in a compact format.

✅ Modular & Flexible: Ready for integration with modern networks.

✅ Discontinued, But Supported: Still available for retrofit and replacement.

📦 Available Now from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable SEW MDX61B0055-5A3-4-0T prices.

Need assistance sourcing compatible options or migration support? Talk to our engineering team today.

Legacy performance – by SEW, backed by Drive Outlet Megastore.
