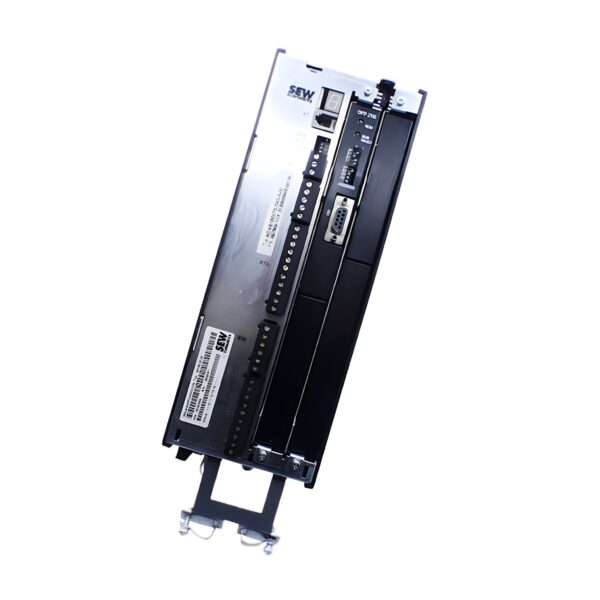

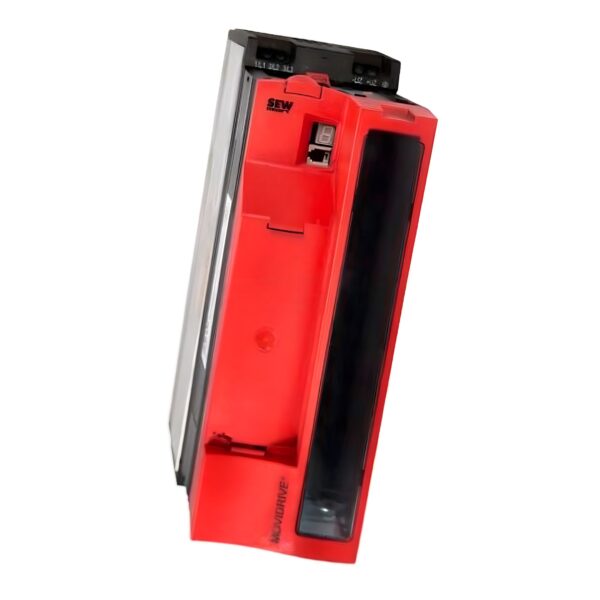

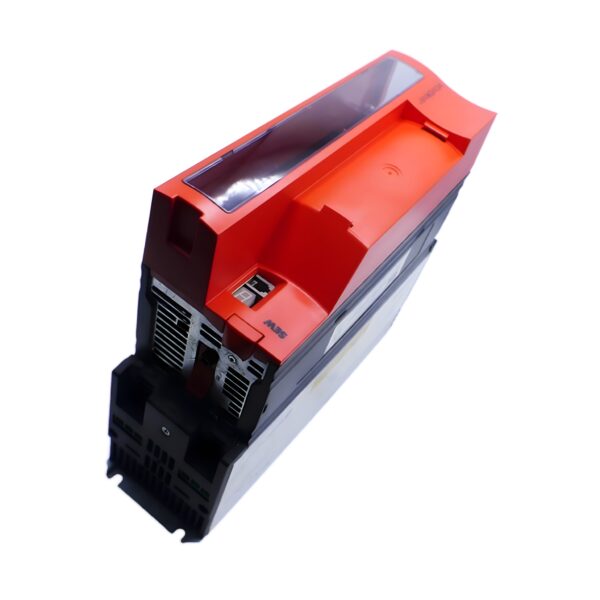

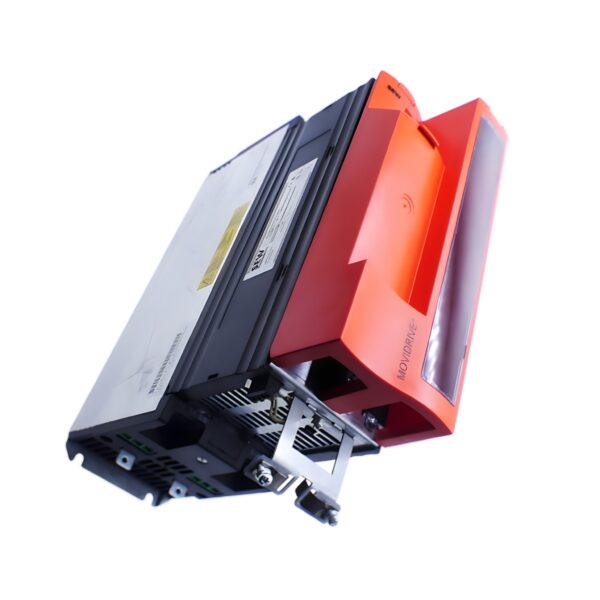

SEW MDX61B0075-5A3-4-0T Inverter Drive – 7.5kW, 380V, IP20

The SEW MDX61B0075-5A3-4-0T is a high-performance inverter drive from the MOVIDRIVE® MDX61 Version B series, engineered for advanced industrial motion control requiring 4-quadrant operation and integrated brake chopper functionality.

With a power output of 7.5 kW, this unit operates on a 3-phase 380–500 V AC supply and is equipped with radio interference suppression, making it fully compatible with EMC-compliant industrial installations.

The 0T variant is designed for panel integration and housed in an IP20-rated enclosure, weighing approximately 13.71 lbs (6.22 kg).

Technical Specifications

Model: MDX61B00755A340T
Part Number: MDX61B00755A340T / 08279802
Product Type: Inverter Drive
Series: MOVIDRIVE® MDX61 Version B
Power Rating: 7.5 kW / 10 HP
Input Voltage: 3 × 380–500 V AC
Input Frequency: 50 / 60 Hz
Output Mode: 4-Quadrant operation
Brake Chopper: Integrated
Enclosure Rating: IP20
Variant: 0T
Weight: 13.71 lbs (approx. 6.22 kg)
EMC Compliance: Built-in radio interference suppression

Electrical & Control Features

Control Modes:

• V/f control
• Sensorless vector control
• Regenerative 4-quadrant operation

Protection & Safety:

• Overload and short-circuit protection
• Over/undervoltage monitoring
• Integrated brake energy handling

Expansion Options:

• Compatible with SEW communication modules (PROFIBUS, CANopen, EtherNet/IP)
• Supports encoder feedback and custom I/O cards

Mechanical & Environmental

Mounting Type: Control cabinet (vertical)
Cooling: Integrated fan cooling
Ambient Operating Temperature: 0°C to +50°C
Protection Class: IP20
Drive Size: Size 2S

Applications

Ideal For:

• Cranes and hoists requiring regenerative braking
• Conveyors with bidirectional control
• High-speed machinery with frequent deceleration
• OEMs and systems requiring energy recovery

Key Features & Benefits

✅ 4-Quadrant Control: Enables full torque in all directions with regenerative braking.

✅ Integrated Brake Chopper: Efficient energy management during deceleration.

✅ Industrial-Grade EMC: Built-in radio interference suppression.

✅ 7.5 kW Output: Ideal for medium to large AC motors.

✅ Expandable Design: Seamless integration with SEW system architecture.
