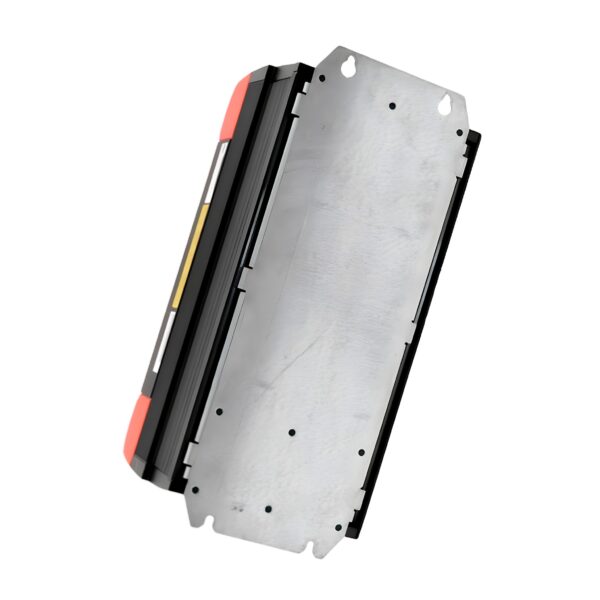

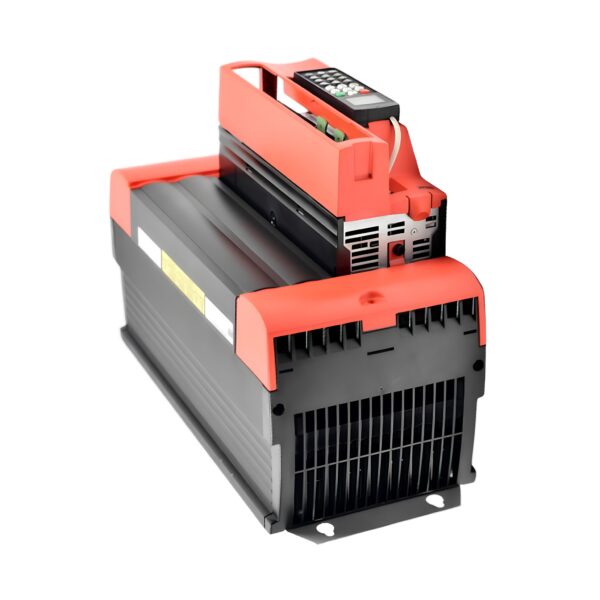

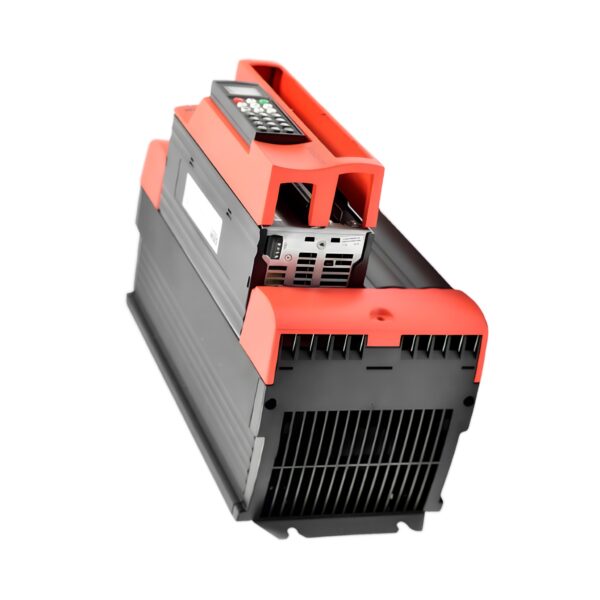

SEW MDX61B0220-503-4-00 Inverter Drive – 22kW, 380V, IP20

The SEW MDX61B0220503400 is a high-power inverter drive from the MOVIDRIVE® B series, built for robust performance and reliable motor control in demanding industrial environments.

Rated at 22 kW (30 HP), this unit operates on a 3-phase 380–500 V AC input at 50/60 Hz, delivering a maximum current of 46 A. Designed for larger motors and heavy-duty applications, it ensures smooth torque delivery and precise control across a wide range of operating conditions.

The drive is housed in a durable IP20-rated enclosure, suitable for panel-mounted installation in enclosed electrical cabinets. The unit weighs approximately 28 lbs (12.7 kg).

Technical Specifications

Model: MDX61B0220503400
Product Type: Inverter Drive
Series: MOVIDRIVE® B
Power Rating: 22 kW / 30 HP
Input Voltage: 3 × 380–500 V AC
Input Frequency: 50 / 60 Hz
Output Current: 46 A
Enclosure Rating: IP20
Phase Type: Three-phase
Weight: 28 lbs (approx. 12.7 kg)

Electrical & Control Features

Control Modes:

• V/f control
• Sensorless vector control
• Optional encoder feedback for closed-loop vector control

Protection Functions:

• Overload and short-circuit protection
• Overvoltage and undervoltage monitoring
• Integrated thermal protection and fault diagnostics

Expansion Capability:

• Supports SEW modular fieldbus systems (PROFIBUS, EtherNet/IP, CANopen)
• Optional encoder and I/O modules available

Mechanical & Environmental

Mounting Type: Cabinet (panel) installation
Cooling Method: Integrated fan
Protection Class: IP20
Installation Orientation: Vertical
Ambient Temperature Range: 0°C to +50°C

Applications

Ideal For:

• High-inertia industrial machinery
• Material handling and processing systems
• Pumps, blowers, and compressors
• OEM equipment requiring high-output motor drives

Key Features & Benefits

✅ High Power Output: 30 kW / 40 HP for large motors and heavy-duty loads.

✅ Reliable EMC Protection: Meets industrial interference suppression standards.

✅ IP20 Construction: Built for cabinet-mounted installations.

✅ Full Voltage Range: Supports 380–500 V across global 3-phase networks.

✅ Expandable Architecture: Compatible with SEW control and communication modules.
