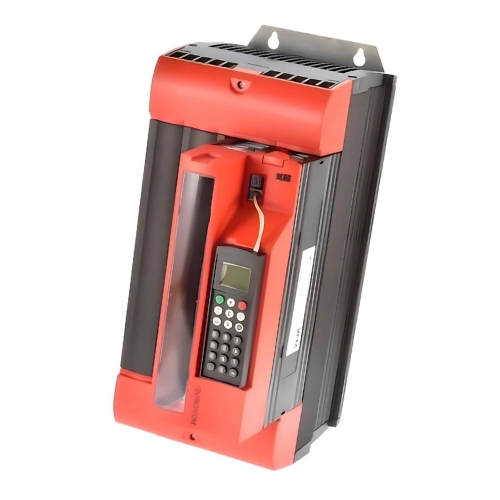

SEW MDX61B1100-503-4-00 Inverter Drive – 110kW, 380–500VAC, IP00

The SEW MDX61B1100503400 is a high-performance inverter drive from the MOVIDRIVE® B series, purpose-built for controlling large motors in heavy-duty industrial environments.

Rated for 110 kW (148 HP), this drive supports a 3-phase input voltage of 380–500 VAC, delivering high torque and stable performance across a wide range of applications. Designed for continuous high-load operation, it ensures efficient motor management in automation systems demanding high output and reliability.

This model is housed in an IP00-rated open chassis, intended for installation within protected control panels. Weighing approximately 150 lbs (68 kg), it is ideal for large-scale installations where robust motor control is essential.

Technical Specifications

Model: MDX61B1100503400
Product Type: Inverter Drive
Series: MOVIDRIVE® B
Power Rating: 110 kW / 148 HP
Input Voltage: 3 × 380–500 V AC
Input Frequency: 50 / 60 Hz
Phase Type: 3-phase
Enclosure Rating: IP00
Cooling Method: External cabinet ventilation required
Weight: 150 lbs (approx. 68 kg)

Electrical & Control Features

Control Modes:

• V/f control
• Sensorless vector control
• Closed-loop vector control with optional encoder module

Integrated Protections:

• Overvoltage and undervoltage protection
• Short-circuit and overload protection
• Motor temperature monitoring and fault diagnostics

Modular Expansion Options:

• Fieldbus communication modules (e.g., PROFIBUS, EtherNet/IP, CANopen)
• Encoder and I/O modules
• Safe Torque Off (STO) and safety expansion

Mechanical & Environmental

Mounting Type: Control panel (vertical mounting)
Cooling: Forced-air (via external cabinet ventilation)
Protection Class: IP00 (requires cabinet enclosure)
Ambient Temperature Range: 0°C to +40°C
Form Factor: Large-frame unit for high-power installations

Applications

Ideal For:

• Large-scale conveyor and transport systems
• Heavy processing and manufacturing equipment
• Pumps, compressors, and fans with high energy demand
• Regenerative and dynamic industrial applications
• OEM systems requiring 100+ HP control

Key Features & Benefits

✅ 110 kW / 148 HP Power Output: Supports large industrial motors.

✅ Scalable Control: Supports both basic and advanced motion profiles.

✅ Cabinet-Ready: Open-frame IP00 design for panel integration.

✅ Fieldbus Compatible: Modular interfaces for seamless automation.

✅ SEW MOVIDRIVE Platform: Trusted for industrial durability and performance.

📦 Available Now from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable SEW MDX61B1100-503-4-00 prices.

Need support with drive sizing, cooling specs, or cabinet design? Contact our engineering team today.

Maximum power – by SEW, delivered by Drive Outlet Megastore.
