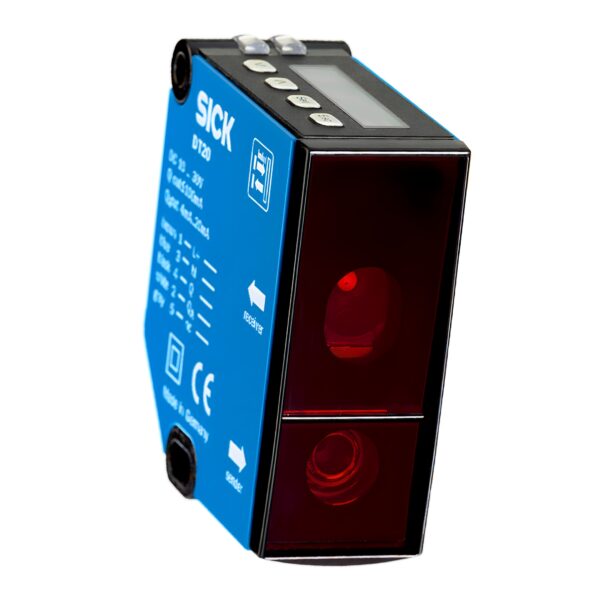

SICK DT20-P214B Laser Distance Sensor (1040012)

The SICK DT20-P214B is a compact and precise mid-range laser distance sensor, engineered for high-performance detection over a measuring range of 100 mm to 600 mm. Featuring a visible red laser (Class 2) and a repeatability of ≥ 0.5 mm, this sensor is ideal for fast-paced automation tasks requiring reliable distance-to-object (DtO) measurements. With multiple teach-in and output inversion options, it delivers flexible configuration for industrial machine builders and integrators.

Housed in a rugged zinc die-cast body with an IP65 enclosure rating, the DT20-P214B offers a robust and reliable sensing solution for confined installation spaces and dynamic manufacturing environments.

Technical Specifications

Model: DT20-P214B
Part Number: 1040012
Product Type: Laser distance sensor
Measuring Range: 100 mm to 600 mm
Target Type: Natural objects
Repeatability: ≥ 0.5 mm
Linearity: ± 2 mm
Response Time: ≥ 2.5 ms
Output Time: ≥ 2.5 ms
Light Source: Visible red laser
Laser Class: Class 2 (IEC 60825-1:2014)
Typical Light Spot Size: 3 mm x 6 mm at 600 mm
MTTFD: 101 years
DCavg: 0%

Mechanical & Electrical Data

Housing Material: Zinc die-cast metal
Window Material: Plastic (PMMA)
Enclosure Rating: IP65 (EN 60529)

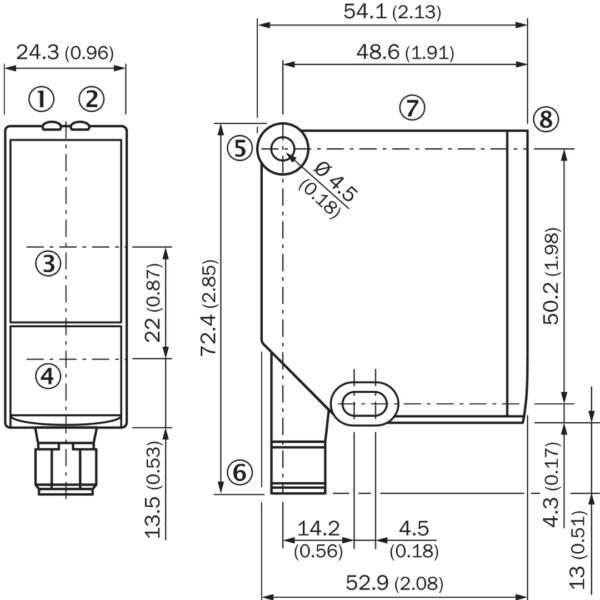

Dimensions (W x H x D): 24.3 mm x 72.4 mm x 54.1 mm
Weight: 135 g
Connection Type: M12 male connector, 5-pin, swivel
Operating Voltage (UB): 10 V DC to 30 V DC
Power Consumption: ≤ 1.8 W
Ripple: ≤ 5 Vpp
Warm-up Time: ≤ 10 min
Indicators: LC display + 2 LEDs
Protection Class: II

Features & Functions

• Teach-in of digital and analog outputs
• Invertible digital and analog outputs
• Distance to Object (DtO) switching mode
• Moving average (fast/medium/slow) smoothing
• Multifunctional input (laser off / external teach / deactivated)
• Display lock and user interface lock

Applications

Ideal For:

• Part positioning and detection in assembly automation
• Measurement tasks in packaging and printing systems
• Material handling equipment and conveyors
• OEM machinery requiring compact high-accuracy sensing

Key Features & Benefits

✅ High Precision: Repeatability ≥ 0.5 mm with ±2 mm linearity over 600 mm range.

✅ Configurable Outputs: Digital and analog with teach-in and inversion options.

✅ Compact & Durable: IP65-rated zinc housing with swivel connector.

✅ Versatile Integration: Fast response and multi-mode operation.

✅ Clear Feedback: On-device LC display with LED status indicators.
