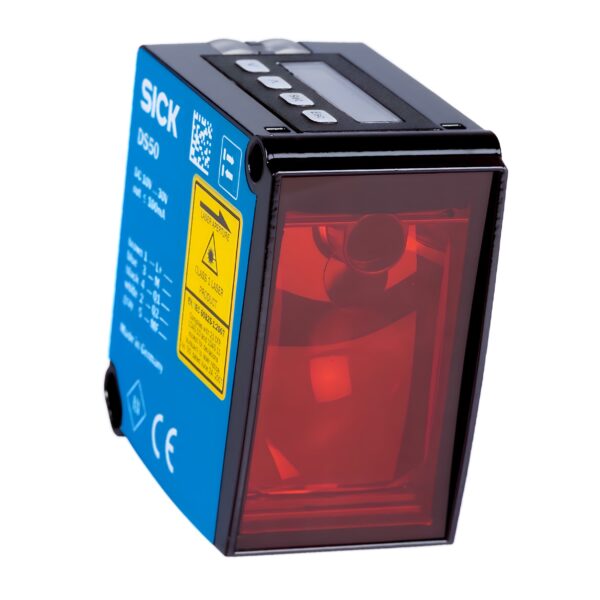

SICK DT50-P1123 Laser Distance Sensor (1047118)

The SICK DT50-P1123 is a compact, high-performance laser distance sensor designed for precise distance measurement of natural objects over long ranges. With a measuring range up to 10 meters and a visible red Class 1 laser, it is ideal for a wide array of industrial applications including positioning, detection, and level monitoring.

Its robust zinc die-cast housing, intuitive teach-in functionality, and multi-functional I/O options make it a go-to choice for reliable measurement even under demanding environmental conditions.

Technical Specifications

Model: DT50-P1123 SICK
SICK Part Number: 1047118
Product Type: Laser distance sensor
Measuring Range:

• 200 mm to 10,000 mm (90% remission)
• 200 mm to 5,000 mm (18% remission)
• 200 mm to 2,500 mm (6% remission)
  Target Type: Natural objects
  Resolution: 1 mm
  Repeatability: ≥ 2.5 mm
  Accuracy: ±10 mm
  Response Time: 20–30 ms
  Output Time: ≥ 4 ms
  Light Source: Laser
  Laser Type: Visible red light, Class 1 (IEC 60825-1:2014)
  Laser Spot Size: 15 mm × 15 mm at 10 m
  Average Laser Service Life: 100,000 h (at 25 °C)

Electrical Interface

Supply Voltage: 10 V DC to 30 V DC
Power Consumption: ≤ 2.1 W
Ripple: ≤ 5 Vpp
Initialization Time: ≤ 250 ms
Warm-Up Time: ≤ 15 min
Indication: LC display and 2 LEDs
Protection Class: III
Enclosure Rating: IP65
Connection Type: M12 male connector, 5-pin
I/O Features:

• Digital and analog output (scalable, invertible)
• Teach-in function
• Hysteresis setting
• Multifunctional input: Laser off / Teach / Disable
• Moving average filter (fast/slow)
• Display switch-off and user interface lock
• Factory reset option

Mechanical Data

Housing Material: Zinc die-cast
Window Material: Plastic (PMMA)

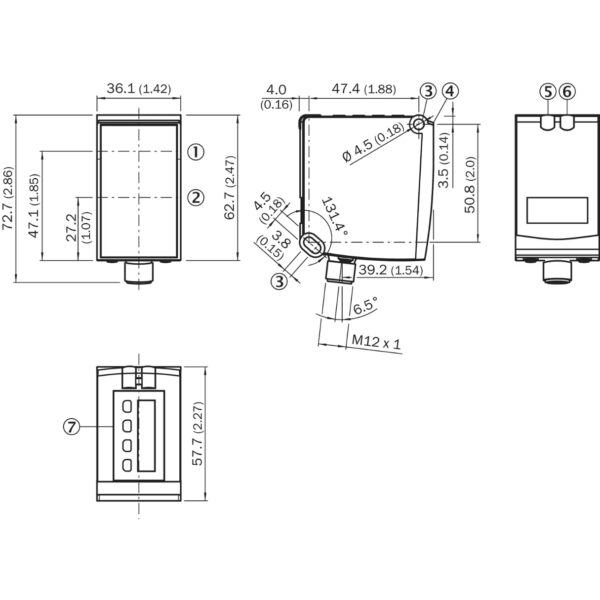

Dimensions (W x H x D): 36.1 mm × 62.7 mm × 57.7 mm
Weight: 200 g
Mounting Style: Compact rectangular with side-facing optics

Safety-Related Data

MTTFD (Mean Time to Dangerous Failure): 101 years
DCavg: 0%

Ambient Conditions

Operating Temperature: Not explicitly listed (typically –10 °C to +50 °C for DT50 series)
Storage Temperature: Not specified

Certificates and Compliance

• European Conformity (CE)
• cULus Listed
• IP65 environmental protection
• Class 1 Laser compliance
• RoHS compliant

Applications

Ideal For:

• Positioning in warehouse and conveyor systems
• Level measurement in silos or bins
• Pallet detection and handling
• Distance control in robotics and automation
• Machine integration in harsh industrial settings

Key Features & Benefits

✅ Long-Range Detection: Up to 10 m range with high accuracy over varied surface reflectivity.

✅ Safe & Visible Laser: Class 1 red laser for safe, visible beam targeting.

✅ Flexible I/O: Multifunctional input, analog and digital outputs, teach-in, and hysteresis control.

✅ Industrial Durability: Metal housing with IP65 rating for harsh environments.

✅ User-Friendly: Integrated LC display and LEDs for status and parameter visibility.
