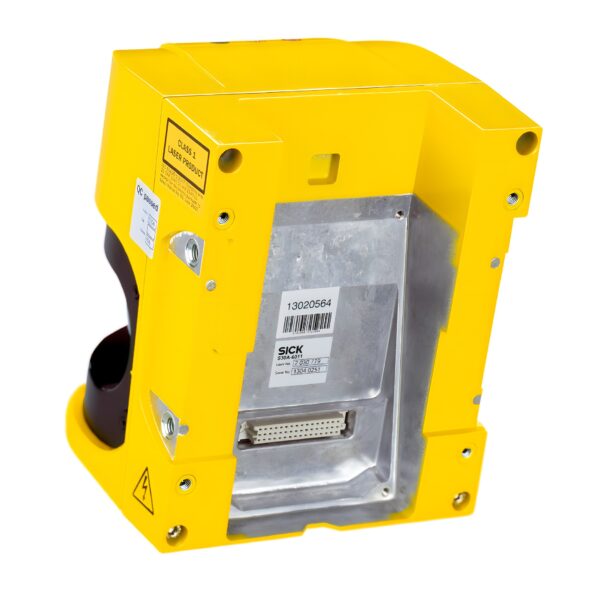

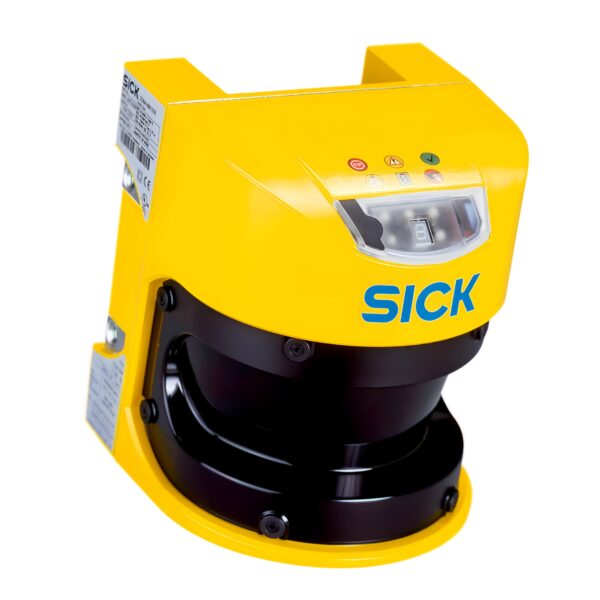

SICK S30A-4011 Safety Laser Scanner Head (2034999)

The SICK S30A-4011 is a high-performance sensor head designed for use with the S3000 series of safety laser scanners, including the Standard, Advanced, Professional, Remote, and Expert models. Featuring a 190° scanning angle, 4-meter protective field, and Type 3 safety compliance, it offers dependable personnel and area protection in industrial environments. This indoor-rated unit supports up to four protective fields simultaneously, making it ideal for dynamic safety applications in robotics, AGVs, and factory automation.

Note: This is the sensor head only and does not include a system plug. Compatible with existing S3000 systems.

Technical Specifications

Model: S30A-4011 SICK
Part Number: 2034999
Product Type: Safety laser scanner sensor head
Protective Field Range: Up to 4 m
Scanning Angle: 190°
Number of Protective Fields: ≤ 4 (simultaneously monitored)
Angular Resolution: Range-dependent
Response Time: 60 ms
Application Area: Indoor use
System Compatibility: S3000 Standard / Advanced / Professional / Remote / Expert

Safety-Related Parameters

Type Classification: Type 3 (IEC 61496)
Safety Integrity Level (SIL): SIL 2 (IEC 61508)
Performance Level (PL): PL d (EN ISO 13849)
Category: Category 3 (EN ISO 13849)
PFHD: 8.0 × 10⁻⁸
Mission Time (TM): 20 years

Electronics & Communication

Protection Class: II (EN 50178)
Measured Data Output: RS-422
Communication: EFI (Safe SICK Device Communication)
Configuration Memory: Integrated
External Device Monitoring (EDM): Supported

Applications

Ideal For:

• Zone protection around AGVs and mobile platforms
• Stationary hazardous area protection in machinery
• Muting and access protection in palletizing areas
• Multi-field applications requiring flexible detection

Key Features & Benefits

✅ 190° Scanning Angle: Wide detection area for optimal coverage.

✅ 4 m Protective Field: Suitable for mid-range indoor safety applications.

✅ Multifield Monitoring: Supports up to 4 fields simultaneously.

✅ Modular Integration: Compatible with all S3000 system types.

✅ Safety Certified: Compliant with SIL 2, PL d, and Category 3 standards.

📦 Available Now from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable SICK S30A-4011 prices, ready for same-day dispatch.

Need help selecting a compatible system plug or configuring the scanner? Contact our safety integration specialists.

Ensure safety without compromise — choose SICK and Drive Outlet Megastore.
