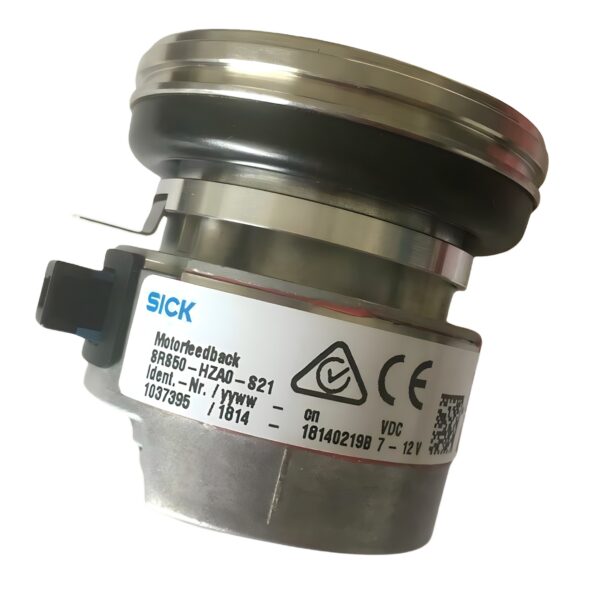

SICK SRS50-HZA0-S21 Motor Feedback System (1037395)

SRS50HZA0S21 – The SICK SRS50-HZA0-S21 is a high-precision motor feedback encoder with a custom hollow shaft design and robust mechanical structure tailored for dynamic servo motor control applications. With 1,024 sine/cosine periods per revolution, ±52 arcsecond system accuracy, and a maximum speed of 12,000 min⁻¹, it enables exact position tracking in high-performance rotary systems.

Its compact housing, radial 8-pin male connector, and resilient rubber stator coupling offer optimal integration flexibility. This model supports position value programming and is supplied with a pre-screwed Torx M5 × 45 fixing screw.

Note: Mounting screws for stator coupling or servo clamps not included in delivery.
Reference device: SRS50-HAA0-K22 (Part No. 1037060)

Technical Specifications

• Model: SRS50-HZA0-S21
• Part Number: 1037395
• Series: SRS/SRM50
• Encoder Type: Motor feedback system with absolute and sine/cosine signals
• Special Features: Customized hollow shaft, position value programming
• Reference Device: SRS50-HAA0-K22
• Fixing Method: M5 × 45 Torx (pre-installed)

Performance Parameters

• Sine/Cosine Periods: 1,024
• Absolute Revolutions: 1
• Total Steps: 32,768
• Measuring Step: ≤ 0.3″ (at 12-bit interpolation)
• System Accuracy: ± 52″
• Integral Non-Linearity: Typ. ± 45″
• Differential Non-Linearity: ± 7″
• Operating Speed (absolute): ≤ 6,000 min⁻¹
• Available Memory: 1,792 Bytes

Electrical Specifications

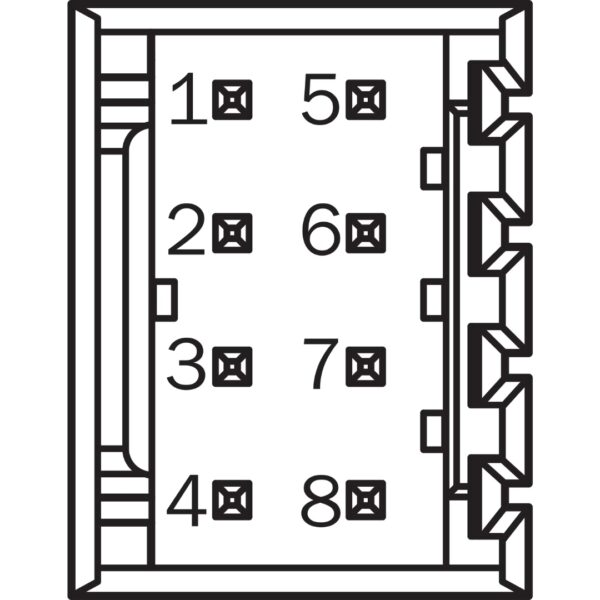

• Connection Type: Male connector, 8-pin, radial
• Supply Voltage Range: 7–12 V DC
• Recommended Voltage: 8 V DC
• Current Consumption: 80 mA
• Max Output Frequency: ≤ 200 kHz (sine/cosine signals)

Mechanical Specifications

• Shaft Type: Hollow shaft
• Flange Type: Rubber stator coupling

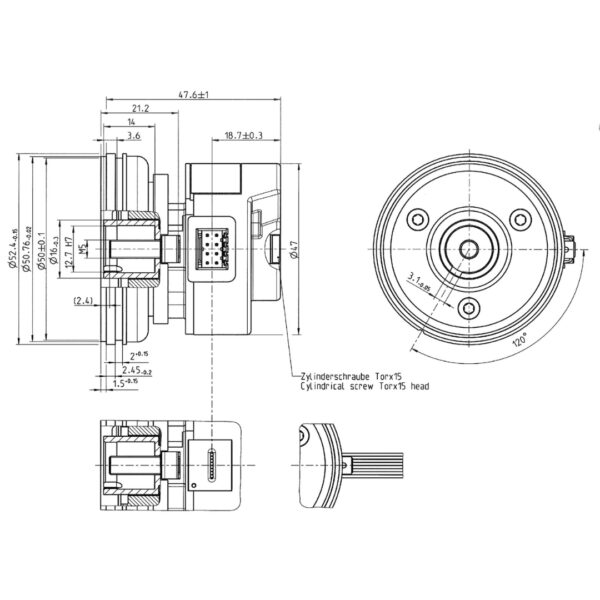

• Dimensions: See dimensional drawing
• Weight: ≤ 0.2 kg
• Max Operating Speed: ≤ 12,000 min⁻¹
• Angular Acceleration: ≤ 200,000 rad/s²
• Operating Torque: 0.2 Ncm
• Start-Up Torque: +0.4 Ncm

Permissible Movement (Static):

• Radial: ± 0.2 mm
• Axial: ± 0.8 mm

Permissible Movement (Dynamic):

• Radial: ± 0.15 mm
• Axial: ± 0.2 mm

Angular Motion (Perpendicular to Axis):

• Static: ± 0.005 mm/mm
• Dynamic: ± 0.0025 mm/mm
• Bearing Life: 3.6 × 10⁹ revolutions

Function & Application

Purpose:
The SRS50-HZA0-S21 delivers ultra-precise position feedback in high-speed rotary environments such as servo motors, robotic joints, and industrial automation axes. The combination of absolute and sine/cosine signal outputs ensures accurate interpolation for dynamic and fine-motion applications.

Typical Applications:

• Servo motor feedback systems
• Robotics and automation axes
• High-precision rotary positioning
• CNC machinery and tooling
• High-speed shaft encoders

Compliance & Classification

• CE Marked: Yes
• RoHS Compliant: Yes
• UKCA / Consulting & Design Compliant: Yes
• Product Class: A – Returnable stock item

SCIP Number: Not applicable
Commodity Code: 90318080

Key Features & Benefits:

✅ 1024 Sine/Cosine Periods: High-resolution incremental feedback for fine motion control.

✅ Customized Hollow Shaft Design: Optimized mechanical fit with radial 8-pin connector for easy integration.

✅ ±52″ System Accuracy: Precision tracking for high-speed and high-accuracy applications.

✅ Rugged Yet Lightweight: ≤ 0.2 kg with resilient rubber stator coupling and 12,000 min⁻¹ speed rating.

✅ Programmable Zero Point: Position value setting enables flexible motor and machine calibration.
