SICK TIM361S-2134101 LiDAR Safety Sensor (1090608)

The SICK TIM361S-2134101 is a compact and rugged 2D LiDAR safety sensor for indoor applications, offering precise detection, area monitoring, and flexible field configuration. Using SICK’s HDDM technology, it scans a 270° field with high accuracy and resolution, making it ideal for mobile platforms, collision avoidance, and intralogistics automation.

With Category B / PL b safety compliance, a 10 m maximum range, and integrated field evaluation, it supports up to 48 configurable protective fields and 3 simultaneous monitoring zones. Designed to withstand harsh conditions, the TIM361S features an IP67 enclosure and flexible mounting options for space-limited installations.

Technical Specifications

Model: TIM361S-2134101 SICK
Part Number: 1090608
Product Type: Safety LiDAR scanner
Application: Indoor safety and navigation
Measurement Principle: HDDM (High Definition Distance Measurement)
Light Source: Infrared (850 nm)
Laser Class: Class 1 (IEC 60825-1:2014+A11:2021)
Aperture Angle: 270° horizontal
Scanning Frequency: 15 Hz
Angular Resolution: 0.33°
Scan Field Flatness: ±1.5°

Working Range:

• Up to 10 m (>90% remission)
• Up to 8 m at 10% remission
• Safety-related range: 0.05 m to 4 m (5% remission)
• Blind Zone: 0 to 0.05 m

Performance

Response Time: 1 or 2 scans, ≤ 134 ms
Detectable Object Shape: Almost any
Integrated Application: Flexible protective field evaluation
Protective Field Tolerance: 100 mm, 0.66°
Field Configuration: 16 field triples (48 protective fields total)
Simultaneous Monitoring: 3 protective fields per set

Safety-Related Parameters

Category: B (EN ISO 13849-1:2015)
Performance Level: PL b
MTTFD: 100 years @ 25 °C
Mission Time (TM): 20 years
Conformity Standards:
EN ISO 13849-1:2015, EN ISO 13482:2014, EN ISO 13855:2010, ANSI/ITSDF B56.5:2012

Mechanical & Electrical Data

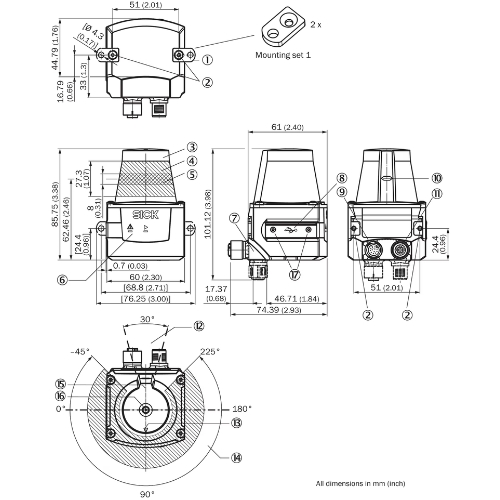

Dimensions (L × W × H): 60 mm × 60 mm × 86 mm
Weight: 250 g (without cables)
Supply Voltage: 9 V DC to 28 V DC
Power Consumption: Typically 4 W, max. 16 W (with 4 loaded outputs)
Output Current (per output): ≤ 100 mA
Enclosure Rating: IP67 (when AUX interface cover is closed)
Protection Class: III (IEC 61140)
Housing Color: Yellow
MTBF: > 100 years

Connections:

• 1 × Ethernet (M12, 4-pin female)
• 1 × Power (M12, 12-pin male)
• 1 × USB (Micro-B)

Applications

Ideal For:

• Collision avoidance in mobile robotics
• Area monitoring in automated material handling systems
• Compact machinery with zone-based safety fields
• Indoor AGVs, shuttles, and transport systems

Key Features & Benefits

✅ Wide Field of View: 270° scan angle with precise 0.33° resolution.

✅ Flexible Safety Zones: Configure up to 48 protective fields, with 3 active zones at once.

✅ Compact & Rugged: IP67 housing with small footprint and robust protection.

✅ Class 1 Safe Laser: Eye-safe operation in collaborative environments.

✅ Smart Integration: Built-in logic for zone evaluation and object detection.
