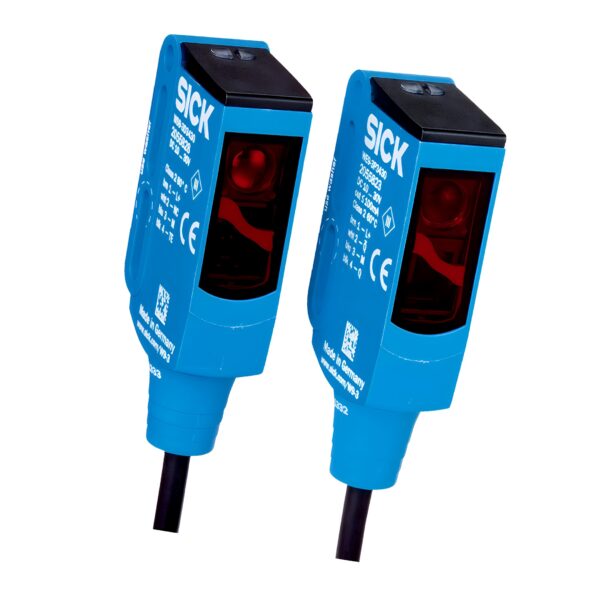

SICK WSE9-3P3430 Through-Beam Sensor (1049078)

WSE93P3430 – The SICK WSE9-3P3430 is a compact and rugged through-beam photoelectric sensor designed for high-speed object detection in challenging industrial environments. With a 7-meter sensing range, visible PinPoint red LED, and complementary PNP switching output, it offers reliable performance in dusty, wet, or vibration-prone areas. Its VISTAL® plastic housing and IP69K protection rating make it ideal for demanding washdown and food-grade applications.

Note: This sensor is delivered as a matched sender/receiver pair:

• WE9-3P3430 (Receiver) – Part No. 2055823
• WS9-3D3430 (Sender) – Part No. 2055828

Technical Specifications

• Model: WSE9-3P3430
• Part Number: 1049078
• Series: W9
• Sensor Type: Through-beam (sender + receiver)
• Sensing Range: 0–7 m (max 10 m)
• Light Source: PinPoint visible red LED
• Wavelength: 650 nm
• Light Spot Size at 1 m: Ø 25 mm
• Adjustment: None (fixed factory settings)
• Supply Voltage: 10–30 V DC
• Ripple: < 5 Vpp
• Current Consumption: 30 mA
• Output Type: PNP, complementary
• Switching Mode: Light/dark switching
• Max Output Current: ≤ 100 mA
• Response Time: < 0.5 ms
• Switching Frequency: 1,000 Hz
• Test Input (Sender Off): Yes
• Connection Type: 120 mm cable with M12 male connector (4-pin)
• Conductor Cross Section: 0.14 mm²
• Cable Material: PVC
• Housing Material: VISTAL® reinforced plastic
• Optics Material: PMMA plastic
• Enclosure Rating: IP66 / IP67 / IP69K
• Protection Class: III
• Ambient Operating Temperature: –40 °C to +60 °C
• Storage Temperature: –40 °C to +75 °C
• UL File Number: NRKH.E181493
• Weight: 80 g
• Mounting: M3 holes
• Dimensions (W × H × D): 12.2 × 50 × 23.6 mm
• Country of Origin: Germany
• Lifecycle Status: Active product

Function & Application

Purpose:
The WSE9-3P3430D SICK sensor pair provides high-speed, high-reliability detection for transparent, reflective, or fast-moving objects. Its compact size and robust enclosure make it an excellent choice for automation, food & beverage, and conveyor systems, even in hygienic or wet environments.

Typical Applications:

• Packaging and bottling line monitoring
• Conveyor system object detection
• Industrial automation in tight spaces
• Food-grade applications requiring IP69K
• High-speed sorting and presence detection

Compliance & Classification

• CE Conformity: Yes
• cULus Certified: Yes
• ECOLAB Certified: Yes
• RoHS Compliance: Yes
• WEEE Take-Back Obligation: Yes

SCIP Number: Not applicable
Commodity Code: 90318080
Product Class: A – Returnable stock item

Key Features & Benefits:

✅ 7 m Reliable Sensing: Ideal for long-range object detection in industrial settings.

✅ Compact & Rugged: Small form factor with durable VISTAL® housing.

✅ IP69K Washdown Ready: Perfect for food, beverage, and hygiene-critical applications.

✅ High-Speed Switching: 1,000 Hz frequency and < 0.5 ms response time.

✅ Dual PNP Output: Supports both light and dark switching logic.
