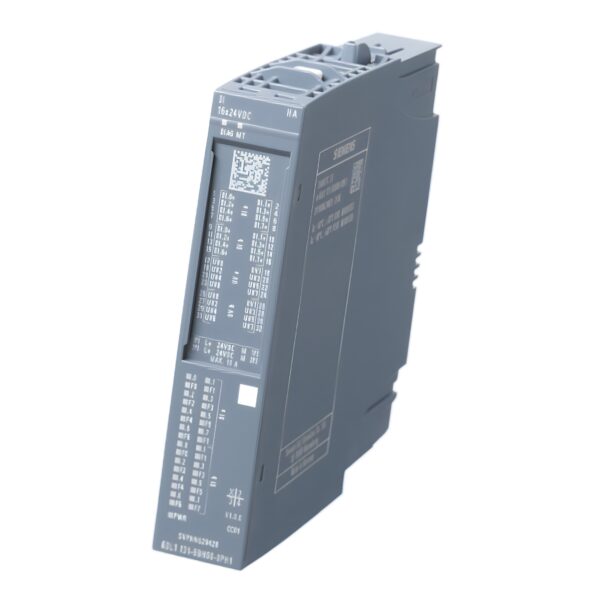

Siemens 6DL1131-6BH00-0PH1 Digital Input Module
The Siemens 6DL1-131-6BH00-0PH1 is a rugged and diagnostics-enabled digital input module designed for high-availability ET 200SP systems. Whether in chemical, power, or water management industries, it delivers the reliability, flexibility, and diagnostics needed for modern process automation.
Technical Specifications
- Model: 6DL1131-6BH00-0PH1 Siemens
- Series: SIMATIC ET 200SP HA
- Module Type: Digital Input Module
- Digital Inputs: 16 × 24 V DC
- Channel Diagnostics: Yes
- Terminal Compatibility: H1, M1
- Color Code: CC01
- Lifecycle Status: Active Product (PM300)
- Dimensions (W×H×D): 35 × 150 × 130 mm
- Net Weight: 0.300 kg
- Protection Rating: Not specified (dependent on terminal assembly)
- Mounting: Carrier module required (sold separately)
Function & Application
Purpose:
This HA-rated digital input module provides high-availability 24 V DC input capability with built-in diagnostics, designed for the ET 200SP HA distributed I/O system.
It is ideal for use in redundant process control and critical infrastructure where downtime is not an option.
Typical Applications:
- Process automation (Redundant/HA setups)
- Power generation and distribution
- Chemical and pharmaceutical plants
- Water/wastewater treatment systems
Performance & Features
- 16x Digital Inputs. 24 V DC input channels with reliable detection.
- Built-In Channel Diagnostics. Fast fault recognition and reporting.
- HA-Grade Module. Designed for high-availability ET 200SP applications.
- Color Code CC01. Ensures easy identification and proper slotting.
- Terminal Flexibility. Compatible with both H1 and M1 terminal blocks.
Recommended Accessories
- 6DL1193-6GA00-0NN0 – 2-Fold Carrier Module for ET 200SP HA
- 6DL1193-6GC00-0NN0 – 8-Fold Carrier Module for ET 200SP HA
- 6DL1193-6TP00-0BH1 – Terminal Block Type H1, 32 Push-In Terminals
- 6DL1193-6TP00-0BM1 – Terminal Block Type M1, 32 Push-In Terminals
Delivery & Compliance
- Packaging Dimensions: 3.50 × 15.00 × 13.00 cm
- Net Weight: 0.300 kg
- Packaging Quantity: 1 Piece
- Country of Origin: Germany
Product Compliance & Classification
- RoHS Compliance: Since 23.05.2017
- WEEE Take-Back Obligation: Yes
- SCIP Number: 039f7a91-c4ad-442d-91d4-ce5c9ef1220d
- REACH Substances:
- Lead (CAS 7439-92-1) > 0.1%
- Lead monoxide (CAS 1317-36-8) > 0.1%
- Silicic acid, lead salt (CAS 11120-22-2) > 0.1%
- Commodity Code: 85389091
- Catalog ID: STPCS7
- Product Group: 4D62
- Group Code: R336
- Product Class: A – Stock product, returnable per guidelines
- EAN: 4047622331064
Key Features & Benefits:
✅ 16x 24 V DC Inputs: Suitable for standard digital signal acquisition.
✅ Channel Diagnostics Built-In: Supports predictive maintenance and fault tracking.
✅ HA Ready: Designed for high-availability and redundant I/O architecture.
✅ Color-Coded Interface: CC01 color code for seamless integration.
✅ Wide Terminal Compatibility: Works with both compact (H1) and standard (M1) terminals.
📦 Order Today for Fast UK & Europe Delivery!
At Drive Outlet Megastore, we offer competitive Siemens 6DL1131-6BH00-0PH1 prices, with fast UK and Europe-wide shipping.
Need help selecting carrier modules, matching terminal blocks, or designing your ET 200SP HA setup?
