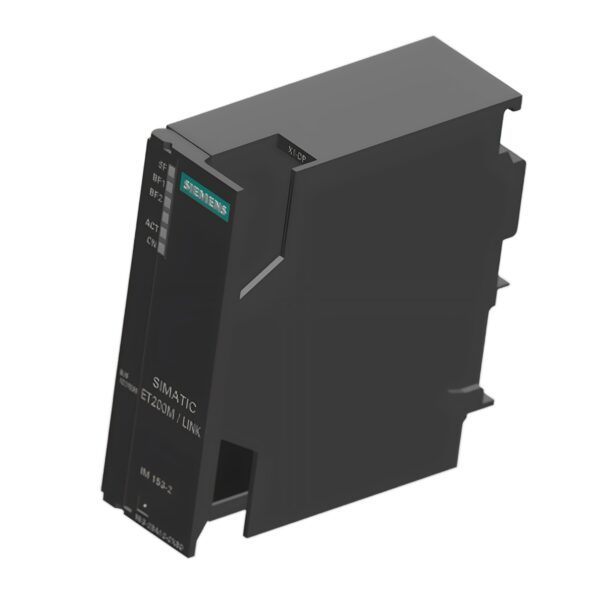

Siemens 6ES7153-2BA10-0XB0 SIMATIC DP Interface Module

The Siemens 6ES7153-2BA10-0XB0 IM 153-2 High Feature module is a powerful PROFIBUS DP interface for ET 200M, designed to connect up to 12 S7-300 I/O modules with full redundancy capability and isochronous mode support.

With features like timestamping, HART expansion, and slave initiative, it offers high-precision communication and broad compatibility with 64-channel signal modules.

Technical Specifications

Model: 6ES7153-2BA10-0XB0 Siemens
Type: SIMATIC DP Interface Module IM 153-2 High Feature – Connects up to 12 S7-300 modules with redundancy capability, diagnostics, and advanced timestamping

System & Communication Features

• Supported Modules: Up to 12 S7-300 modules
• Bus System: PROFIBUS DP
• Redundancy: Yes – Redundancy capability included
• Isochronous Mode: Supported
• Timestamping: Built-in for time-critical signals
• HART Integration: Expanded structure for auxiliary variables
• Compatibility: Supports 64-channel modules (32 signals/slot)
• Special Functions: Slave Initiative support for Drive ES and Switch ES
• Hot Swapping: Modules can be inserted/removed while backplane is active
• Important: See manual for detailed compatibility notes

Recommended Accessories

• 6ES7972-0BA12-0XA0 – PROFIBUS 90° Plug, Screw Terminal, Isolating Resistor
• 6ES7972-0BA42-0XA0 – PROFIBUS Angled Plug, Screw Terminal, No PG Port
• 6ES7972-0BA52-0XA0 – PROFIBUS 90° Plug, FastConnect, No PG Port
• 6ES7972-0BA61-0XA0 – PROFIBUS 35° Plug, FastConnect, No PG Port

Physical Specifications

• Net Weight: 0.284 kg
• Packaging Dimensions (W x H x D): 12.80 cm x 14.90 cm x 5.20 cm
• Package Size Unit of Measure: CM
• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Country of Origin: Germany

Product Lifecycle & Compliance

• Product Lifecycle (PLM): PM400 – Announcement of Product Phase-Out
• Phase-Out Date: Since 01.10.2023
• Export Control Regulations: ECCN: 9N9999 / AL: N
• RoHS Compliance: Since 24.04.2015
• WEEE Take-Back Obligation: Yes

REACH Art. 33 Candidate Substances:

• Lead (CAS-No. 7439-92-1 > 0.1% w/w)
• Lead monoxide (CAS-No. 1317-36-8 > 0.1% w/w)
• 2-methyl-1-(4-methylpentyl)-cyclopentanol (CAS-No. 71868-10-5 > 0.1% w/w)
• Silicic acid, lead salt (CAS-No. 11120-22-2 > 0.1% w/w)
• SCIP Number: f1f3a7a6-f260-4df7-a650-18749c52ddfd

Additional Product Information

• EAN: 4047623404736
• UPC: 804766132254
• Commodity Code: 85176200
• Catalog ID: ST76
• Product Group: X06S
• Group Code: R151
• Product Class: A – Standard product, returnable within return policy

Key Features & Benefits:

✅ Redundancy Capable: For fault-tolerant architectures.

✅ Supports Up to 12 I/O Modules: Expand your ET 200M system with ease.

✅ Built-In Timestamping: Perfect for time-critical automation.

✅ Isochronous & HART Ready: Advanced field integration features.

✅ Wide Accessory Support: Compatible with multiple PROFIBUS plugs.
