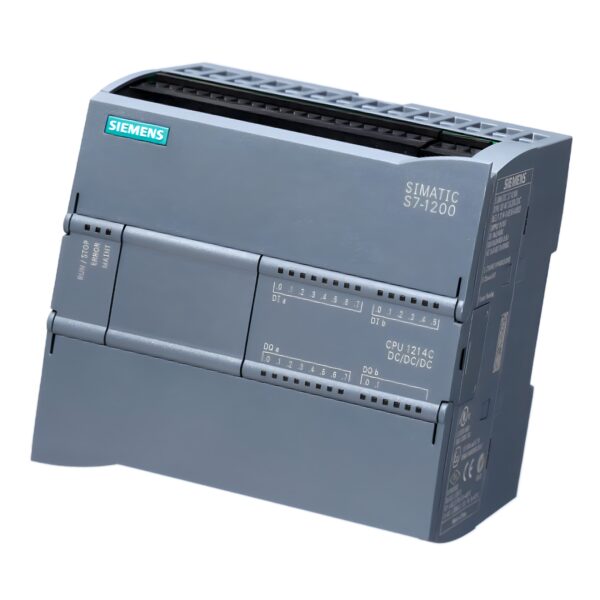

Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200 CPU 1214C

The Siemens SIMATIC S7-1200 CPU 1214C (6ES72141AG400XB0) is a compact, flexible, and powerful controller designed for a wide range of automation tasks. With 14 digital inputs, 10 digital outputs, and 2 analog inputs, this compact CPU supports advanced functionality, including motion control, PID control, and integrated Ethernet communication. Ideal for machine-level applications that require reliability and scalability within the SIMATIC S7-1200 family.

Technical Specifications

Model: 6ES7214-1AG40-0XB0 Siemens
Type: Compact CPU 1214C for SIMATIC S7-1200 Series

Power & Performance

• Power Supply: DC 20.4 – 28.8 V DC
• Program/Data Memory: 150 KB
• Onboard I/O:
  • 14 Digital Inputs (24V DC)
  • 10 Digital Outputs (24V DC)
  • 2 Analog Inputs (0-10V DC)
• Integrated Technology Functions: Motion Control, PID Control, High-Speed Counters

Interfaces & Communication

• Integrated Ethernet Interface: Yes
• Communication Protocols: PROFINET, TCP/IP
• Expansion Modules: Supports digital/analog signal modules and communication modules

Physical Specifications

• Net Weight: 0.357 kg
• Packaging Dimensions (W x H x D): 10.80 cm x 11.60 cm x 8.30 cm
• Package Size Unit of Measure: CM
• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Country of Origin: Germany

Product Lifecycle & Compliance

• Product Lifecycle (PLM): PM300 – Active Product
• Export Control Regulations: AL: N / ECCN: 9N9999
• Compliance with RoHS Directive: Since 12.12.2013
• WEEE Take-Back Obligation: Yes

REACH Art. 33 Candidate Substances:

• Lead (CAS-No. 7439-92-1 > 0.1% w/w)
• Lead monoxide (CAS-No. 1317-36-8 > 0.1% w/w)
• 6,6′-di-tert-butyl-2,2′-methylenedi-p-cresol (> 0.1% w/w)
• Bisphenol A (CAS-No. 80-05-7 > 0.1% w/w)
• SCIP Number: e572d140-3e94-484a-a093-74117ceb7942

Additional Product Information

• EAN: 4047623402787
• UPC: 887621769055
• Commodity Code: 85371091
• Catalog ID: ST72
• Product Group: 4509
• Group Code: R132
• Product Class: A – Standard stock product, returnable within guidelines

Key Features & Benefits:

✅ Integrated I/Os for Direct Control

✅ 150KB Memory for Program/Data

✅ Ethernet Communication & Web Server

✅ Expandable with Digital/Analog Modules

✅ Proven Siemens Quality for Industrial Applications
