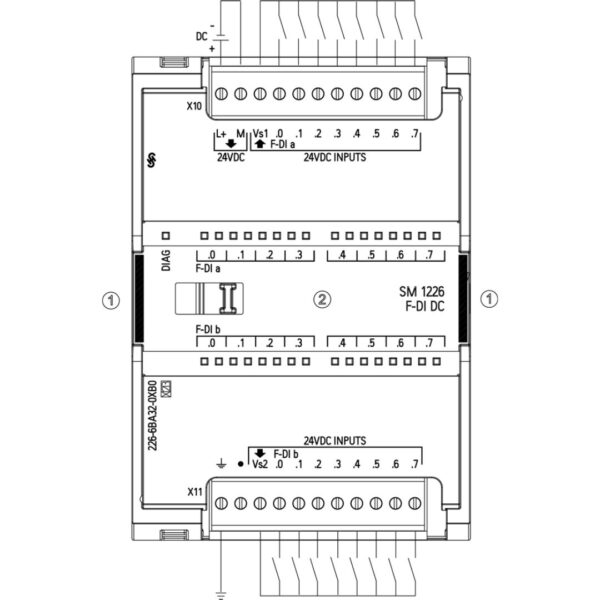

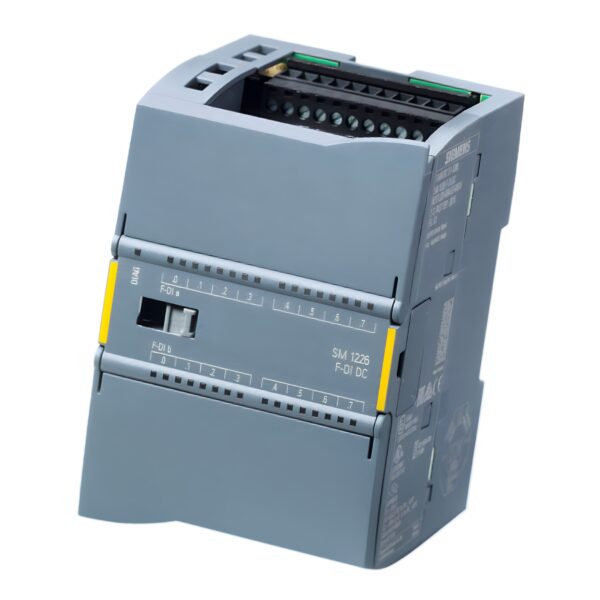

Siemens 6ES7226-6BA32-0XB0 Fail-Safe Digital Input Module

The Siemens SM 1226 F-DI Digital Input Module (6ES7-226-6BA32-0XB0) provides 16 fail-safe digital input channels at 24V DC, designed for applications up to SIL3 and PL e. Engineered for PROFIsafe over PROFINET communication, this module integrates seamlessly with S7-1200 F-series safety CPUs, ensuring robust and certified machine safety functionality in compact installations.

Technical Specifications

Model: 6ES7226-6BA32-0XB0 Siemens
Type: SIMATIC S7-1200 SM 1226 Digital Input Module – 16x F-DI, PROFIsafe, 70 mm width

Power & Performance

• Input Type: 16x Fail-Safe Digital Inputs (F-DI)
• Rated Input Voltage: 24 V DC
• Input Delay Time: Configurable
• Safety Standards Supported:
  • Performance Level: PL e (ISO 13849-1)
  • Safety Integrity Level: SIL 3 (IEC 61508)
• Protection Functionality: PROFIsafe protocol for safe communication
• Module Width: 70 mm

Interfaces & Communication

• System Integration: For SIMATIC S7-1200 automation systems
• Safety Protocol: PROFIsafe over PROFINET
• Use Case: Suitable for applications requiring machine-level safety integration
• Commissioning Tool: TIA Portal with Safety Integrated

Physical Specifications

• Net Weight: 0.256 kg
• Packaging Dimensions (W x H x D): 8.80 cm x 10.80 cm x 8.50 cm
• Package Size Unit of Measure: CM
• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Country of Origin: China

Product Lifecycle & Compliance

• Product Lifecycle (PLM): PM300 – Active Product
• Export Control Regulations: ECCN: 9N9999 / AL: N
• Compliance with RoHS Directive: Since 27.11.2014
• WEEE Take-Back Obligation: Yes

REACH Art. 33 Candidate Substances:

• Lead (CAS-No. 7439-92-1 > 0.1% w/w)
• Lead monoxide (CAS-No. 1317-36-8 > 0.1% w/w)
• 4,4′-isopropylidenediphenol (CAS-No. 80-05-7 > 0.1% w/w)
• SCIP Number: f63a44f9-8ceb-4f44-aaf5-ed3b91d584c4

Additional Product Information

• EAN: 4025515082897
• UPC: 804766054655
• Commodity Code: 85389091
• Catalog ID: ST72
• Product Group: 4A74
• Group Code: R152
• Product Class: A – Standard stock product, returnable within guidelines

Key Features & Benefits:

✅ Comprehensive Safety Compliance: Supports PL e / SIL 3 for critical safety applications.

✅ Compact 70 mm Width: Saves panel space in modular setups.

✅ Seamless S7-1200 Integration: PROFIsafe-ready with TIA Portal compatibility.

✅ Reliable Fail-Safe Inputs: 16x 24V DC digital channels.

✅ Global Standards Support: IEC 61508 and ISO 13849-1.
