Siemens 6ES7232-0HD22-0XA0 Analog Output Module

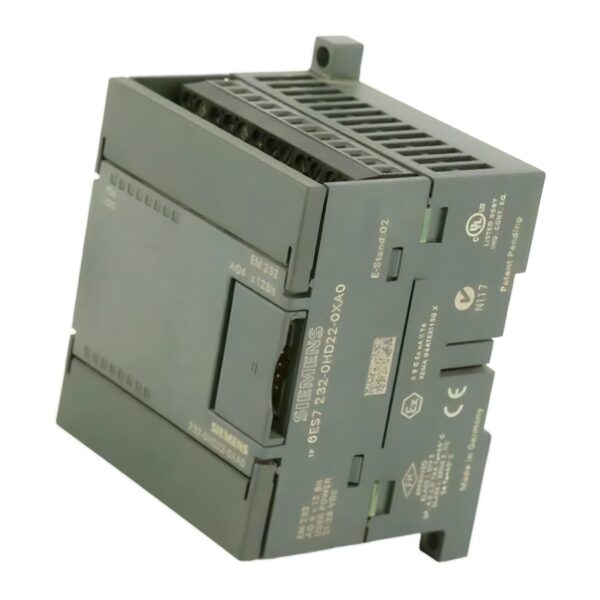

The Siemens 6ES7-232-0HD22-0XA0 EM 232 module provides 4 analog output channels for voltage or current applications, ideal for legacy S7-200 systems. Now discontinued, it remains available as a Siemens-authorized spare part for maintenance and repair of long-standing installations.
Technical Specifications
Model: 6ES7232-0HD22-0XA0 Siemens
Series: SIMATIC S7-200
Module Type: EM 232 Analog Output
Analog Outputs: 4 Channels
Signal Types: ±10 V DC / 0…20 mA
Resolution: 12/11-bit converter
Compatible CPUs: Only for S7-22X CPUs
Product Lifecycle: Cancelled since 18.01.2022 (available as spare part only)
Function & Application
- Purpose: Analog output module designed for legacy S7-200 automation systems, enabling precise analog control and signal generation.
- Typical Applications:
- Voltage or current signal control of actuators or field devices.
- Industrial machinery using S7-22X CPUs.
- Maintenance and spare part replacement in legacy systems.
Performance & Features
- 4 Analog Outputs. Each channel configurable for current or voltage.
- S7-22X Compatibility. Specifically designed for older generation Siemens PLCs.
- 12/11-bit Resolution. Delivers acceptable precision for process control in compact applications.
- Spare Part Status. Officially discontinued but available through Siemens spares.
- Compact Build. Fits directly into S7-200 expansion slot with minimal wiring effort.
Delivery & Compliance
- Packaging Dimensions: 8.80 × 9.50 × 7.10 cm
- Net Weight: 0.166 kg
- Packaging Quantity: 1 Piece
- Country of Origin: China
- Estimated Dispatch Time: 1 Working Day
Product Compliance & Classification
- RoHS Compliance: Since 25.11.2009
- WEEE Take-Back Obligation: Yes
- SCIP Number: 9f0cd42f-7c63-4b0f-ba54-9af5c64d2e51
- REACH Substances:
- Lead (CAS 7439-92-1) > 0.1%
- Lead monoxide (CAS 1317-36-8) > 0.1%
- 6,6′-di-tert-butyl-2,2′-methylenedi-p-cresol > 0.1%
- Commodity Code: 85389091
- Catalog ID: ST9-E5
- Product Group: 4557
- Group Code: R131
- Product Class: C – Custom/special order, non-returnable
- EAN: 4025515075592
- UPC: 662643401318
Key Features & Benefits:
✅ 4 AO Channels. Analog output flexibility for legacy equipment.
✅ 12/11-Bit Precision. Sufficient for many industrial control requirements.
✅ S7-22X CPU Compatibility. Designed for Siemens’ compact PLC generation.
✅ Compact Footprint. Easy expansion within existing S7-200 setups.
✅ Available as Spare Part. Supports extended lifecycle of installed systems.
📦 Still Supporting Legacy Automation? We’ve Got You Covered.
At Drive Outlet Megastore we offer the most competitive Siemens 6ES7232-0HD22-0XA0 prices, with fast UK & Europe dispatch.
Need help sourcing legacy modules, identifying replacement options, or transitioning to S7-1200/S7-1500? Contact our automation legacy support team.
We help keep your S7-200 systems running strong.
