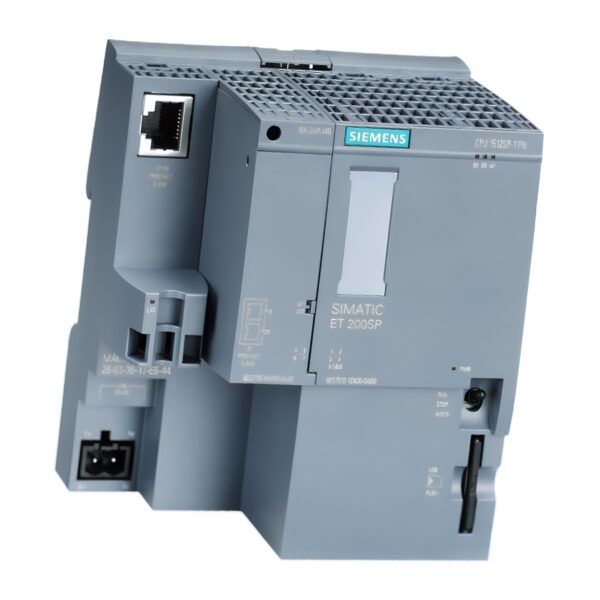

Siemens 6ES7512-1DK01-0AB0 Central Processing Unit

6ES75121DK010AB0 – High-performance CPU for ET 200SP systems with 200 KB program memory, 1 MB data memory, integrated PROFINET IRT interface, and 48 ns processing speed.

Technical Specifications

• Model: 6ES7512-1DK01-0AB0 Siemens
• Series: SIMATIC ET 200SP
• CPU Type: CPU 1512SP-1 PN
• Program Memory: 200 KB
• Data Memory: 1 MB
• Interface: 1x PROFINET IRT (integrated 3-port switch)
• Bit Performance: 48 ns
• Memory Card: Required (SIMATIC Memory Card)
• BusAdapter Required: Yes (Port 1 and Port 2)
• Mounting Type: For ET 200SP BaseUnit
• Net Weight: 0.385 kg
• Dimensions (W×H×D): 13.1 × 13.2 × 8.8 cm
• Lifecycle Status: Discontinued (as of 01.10.2024)
• Country of Origin: Germany

Function & Application

Purpose:
The Siemens CPU 1512SP-1 PN is engineered for faster program execution in distributed automation architectures. Designed to handle more complex tasks, it is ideal for demanding real-time applications over PROFINET IRT.

Typical Applications:

• Distributed machine automation
• Motion and positioning control
• Mid-to-high complexity PLC programs
• Real-time networking with deterministic response

Performance & Features

• PROFINET IRT Interface. Integrated 3-port switch for fast data exchange and flexible topologies.
• 48 ns Bit Performance. Increased speed for cycle-precise operations.
• Modular System Integration. Easily fits within the ET 200SP structure with compatible BaseUnits.
• Removable Memory. SIMATIC Memory Card slot for program/data handling.
• Flexible BusAdapter Options. Supports copper and fiber connectivity via modular adapters.

Recommended Accessories

• 6ES7193-6AF00-0AA0 – BusAdapter BA 2xFC, 2x FastConnect connections
• 6ES7193-6AG00-0AA0 – BusAdapter BA 2xLC, 2x LC glass FOC connections
• 6ES7193-6AG20-0AA0 – BusAdapter BA LC/RJ45, FO/CU media converter
• 6ES7193-6AG40-0AA0 – BusAdapter BA LC/FC, FO/CU media converter

Compliance & Classification

• RoHS Compliance: Since 29.07.2015
• WEEE Take-Back Obligation: Yes
• REACH Substances:
  • Lead (CAS 7439-92-1) > 0.1%
  • Lead monoxide (CAS 1317-36-8) > 0.1%
  • Silicic acid, lead salt (CAS 11120-22-2) > 0.1%
  • 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (CAS 71868-10-5) > 0.1%
• SCIP Number: 7359a79f-471a-4c2e-a750-b3dd662e8ebb
• Commodity Code: 85371091
• Catalog ID: ST76
• Product Group: 9036
• Group Code: R132
• Product Class: A – Returnable stock item
• EAN: 4047623406051
• UPC: 804766166556

Key Features & Benefits:

✅ 200 KB Program / 1 MB Data Memory. Expanded capacity for advanced automation.

✅ PROFINET IRT with 3-Port Switch. Real-time industrial networking.

✅ 48 ns Execution Speed. Ideal for performance-critical tasks.

✅ Modular BusAdapter Support. Compatible with both copper and fiber connectivity.

✅ Discontinued Model. Upgrade to the latest 6ES7512-1DM03-0AB0 for even faster performance and more memory.
