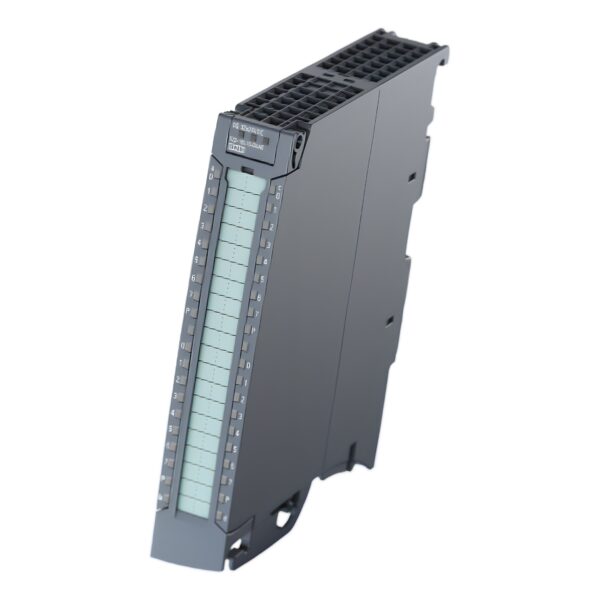

Siemens 6ES7522-1BL01-0AB0 Digital Output Module

The Siemens SIMATIC S7-1500 DQ 32x24V DC/0.5A HF (6ES75221BL010AB0) is a high-performance output module designed for demanding industrial automation tasks. With single-channel diagnostics, substitute value function, and integrated safety compliance (SIL2 / PL d), this module ensures reliable and safe actuator control.

Ideal for applications requiring high channel density and enhanced functional safety.

Technical Specifications

Model: 6ES7522-1BL01-0AB0 Siemens
Type: Digital Output Module DQ 32x24V DC/0.5A HF for SIMATIC S7-1500 Series

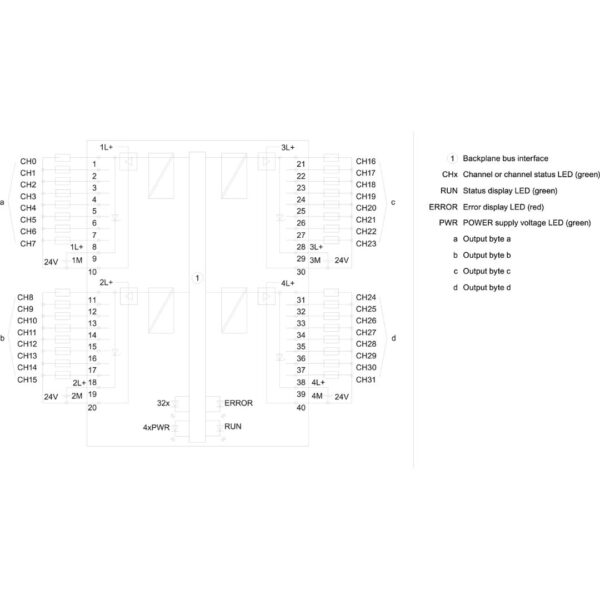

Channels: 32 digital outputs grouped in 8-channel groups

Performance & Features

• Output Voltage: 24 V DC
• Channel Current: 0.5 A per channel
• Group Current: 4 A per group
• Diagnostics: Single-channel diagnostics
• Safety Support:
  • Supports safety-oriented shutdown up to SIL2 (EN IEC 62061:2021)
  • Complies with Category 3 / PL d (EN ISO 13849-1:2015)
• Switching Cycle Counter: Integrated
• Substitute Value Function: Supported
• Front Connector Required: Screw or push-in (ordered separately)

Compatible Accessories

• 6ES7592-1AM00-0XB0: 40-pole Screw Terminal Front Connector
• 6ES7592-1BM00-0XB0: 40-pole Push-in Terminal Front Connector

Physical Specifications

• Net Weight: 0.321 kg
• Packaging Dimensions (W x H x D): 15.10 cm x 15.40 cm x 4.70 cm
• Package Size Unit of Measure: CM
• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Country of Origin: Germany

Product Lifecycle & Compliance

• Product Lifecycle (PLM): PM300 – Active Product
• Export Control Regulations: AL: N / ECCN: 9N9999
• Compliance with RoHS Directive: Since 13.11.2015
• WEEE Take-Back Obligation: Yes
• REACH Art. 33 Candidate Substances:
  • Lead (CAS-No. 7439-92-1 > 0.1% w/w)
  • Lead monoxide (CAS-No. 1317-36-8 > 0.1% w/w)
  • Silicic acid, lead salt (CAS-No. 11120-22-2 > 0.1% w/w)
  • Bisphenol A (CAS-No. 80-05-7 > 0.1% w/w)
• SCIP Number: cdfd47a6-ce55-49c0-95cb-ca56dd2d1ad6

Additional Product Information

• EAN: 4047623405924
• UPC: 804766234446
• Commodity Code: 85389091
• Catalog ID: ST73
• Product Group: 4501
• Group Code: R151
• Product Class: A – Standard stock product, returnable within guidelines

Key Features & Benefits:

✅ 32 Digital Outputs in High-Density Design

✅ Integrated Diagnostics & Switching Cycle Counter

✅ SIL2 / PL d Safety Shutdown Support

✅ Substitute Value Functionality for Enhanced Reliability

✅ Optional Screw or Push-In Front Connector

✅ Robust Siemens Quality – RoHS & REACH Compliant
