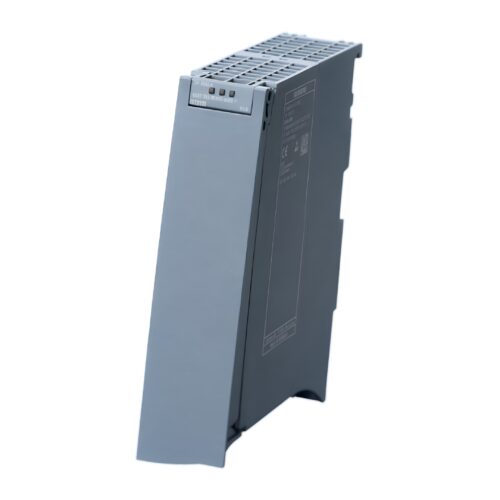

Siemens 6ES7531-7KF00-0AB0 Analog Input Module

The Siemens 6ES7531-7KF00-0AB0 analog input module offers 8 universal analog channels supporting voltage, current, RTD, and thermocouple signals with 16-bit resolution and high accuracy.

Designed for industrial automation systems requiring flexible input handling, this module includes diagnostics, supports hardware interrupts, and allows seamless configuration through the TIA Portal.

Technical Specifications

Model: 6ES7531-7KF00-0AB0 Siemens
Type: SIMATIC S7-1500 Analog Input Module – AI 8xU/I/RTD/TC ST, 16-bit resolution, 0.3% accuracy, with diagnostics, hardware interrupts, and shielding accessories

Analog Input Performance

• Channels: 8 analog input channels in 1 group of 8
• Input Types Supported: Voltage (U), Current (I), RTD (Resistance Temperature Detector), Thermocouple (TC)
• Resolution: 16-bit
• Accuracy: ±0.3%
• RTD Support: 4 channels
• Common Mode Voltage: Up to 10 V

Diagnostics & Features

• Diagnostics Functions: Enabled
• Hardware Interrupts: Yes
• Firmware Support: Update-capable
• Module Width: 35 mm
• Accessories Included: Infeed element, shield bracket, shield terminal
• Front Connector: Not included – order separately

Recommended Accessories

• 6ES7592-1AM00-0XB0 – 40-Pole Screw-Type Front Connector
• 6ES7592-1BM00-0XB0 – 40-Pole Push-In Front Connector

Physical Specifications

• Net Weight: 0.413 kg
• Packaging Dimensions (W x H x D): 16.10 cm x 19.30 cm x 5.00 cm
• Package Size Unit of Measure: CM
• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Country of Origin: Germany

Product Lifecycle & Compliance

• Product Lifecycle (PLM): PM300 – Active Product
• Export Control Regulations: ECCN: 9N9999 / AL: N
• RoHS Compliance: Since 25.02.2013
• WEEE Take-Back Obligation: Yes

REACH Art. 33 Candidate Substances:

• Lead (CAS-No. 7439-92-1 > 0.1% w/w)
• Lead monoxide (CAS-No. 1317-36-8 > 0.1% w/w)
• Silicic acid, lead salt (CAS-No. 11120-22-2 > 0.1% w/w)
• 6,6′-di-tert-butyl-2,2′-methylenedi-p-cresol (> 0.1% w/w)
• 4,4′-isopropylidenediphenol (CAS-No. 80-05-7 > 0.1% w/w)
• Dicyclohexyl phthalate (CAS-No. 84-61-7 > 0.1% w/w)
• SCIP Number: ef1c9a97-c952-4426-b577-8f941d127df2

Additional Product Information

• EAN: 4025515079514
• UPC: 887621139148
• Commodity Code: 85389091
• Catalog ID: ST73
• Product Group: 4501
• Group Code: R151
• Product Class: A – Standard product, returnable within return policy

Key Features & Benefits:

✅ 8x Universal Analog Inputs: Voltage, current, RTD, and TC support.

✅ High Resolution: 16-bit precision with 0.3% accuracy.

✅ Diagnostics & Interrupts: Built-in for enhanced process monitoring.

✅ Includes Shielding Hardware: Ready for professional installation.

✅ Modular Integration: For use with SIMATIC S7-1500 controllers.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we offer competitive 6ES7531-7KF00-0AB0 prices, ready for quick dispatch across the UK and Europe.

Need help choosing the right analog input module or front connector? Contact Drive Outlet Megastore.

Our team is ready to assist you!
