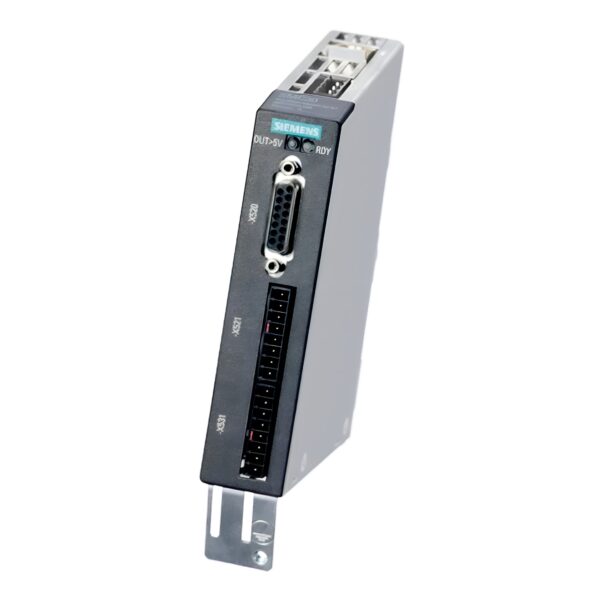

Siemens 6SL3055-0AA00-5CA2 SINAMICS SMC30 Sensor Module

6SL30550AA005CA2 – High-performance SINAMICS SMC30 sensor module designed for use with incremental encoders (TTL/HTL) or SSI encoders with or without incremental tracks. 30 mm wide design. Delivered without DRIVE-CLiQ cable for flexible installation in SINAMICS drive systems.

Technical Specifications

• Model: 6SL3055-0AA00-5CA2 Siemens
• Series: SINAMICS SMC30
• Application: Encoder connection module
• Supported Encoder Types:
  • Incremental TTL/HTL
  • Combi-encoder (SSI with incremental tracks)
  • SSI encoders (without incremental signals)
• Interface: No DRIVE-CLiQ cable included
• Module Width: 30 mm
• Mounting: Control panel or cabinet installation
• Net Weight: 0.410 kg
• Dimensions (HxWxD): 36 × 182 × 352 mm

Function & Application

Purpose: The 6SL3055-0AA00-5CA2 module is engineered for precise feedback signal acquisition in SINAMICS S120 drive systems. It supports both digital and serial encoders for high-precision positioning and speed control in complex motion control applications.

Typical Applications:

• Multi-axis CNC systems
• SINAMICS S120 drive feedback loops
• Packaging, robotics, and machining centers
• Motor speed and position detection

Performance & Features

• Encoder Flexibility. Supports TTL, HTL, and SSI types
• Compact Profile. 30 mm wide for easy cabinet integration
• Robust Build. Industrial-grade design for long-term reliability
• High-Precision Feedback. Enables tight control in motion systems
• Seamless Integration. Plug-and-play with SINAMICS S120 drives

Compliance & Classification

• RoHS Compliance: Since 04.09.2014
• REACH Substances: Not listed
• SCIP Number: afb5f44d-f88b-41d8-b503-0c0238b26ec9
• Commodity Code: 85049090
• Catalog ID: D21MC
• Product Group: 5675
• Group Code: R220
• Product Class: A – Returnable stock item
• Country of Origin: Germany
• EAN: 4042948673010
• UPC: 662643432688

Reliable Feedback Integration for SINAMICS Drives

The Siemens 6SL3-055-0AA00-5CA2 sensor module enables versatile encoder connectivity for SINAMICS S120 applications. With support for both incremental and serial encoders, it ensures accurate motion control in high-performance automation environments.

Key Features & Benefits:

✅ Supports TTL, HTL & SSI Encoder Interfaces

✅ No DRIVE-CLiQ Cable – Flexible Installation Options

✅ Compact 30 mm Width for Cabinet Space Efficiency

✅ Compatible with SINAMICS S120 Drives

✅ RoHS & REACH Compliant

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we offer unbeatable Siemens 6SL3055-0AA00-5CA2 prices, available for fast delivery throughout the UK and Europe.

Need help selecting the right feedback module, matching encoder types, or integrating with SINAMICS S120 systems? Contact our motion control experts today.

Precision starts with Siemens and Drive Outlet Megastore.
