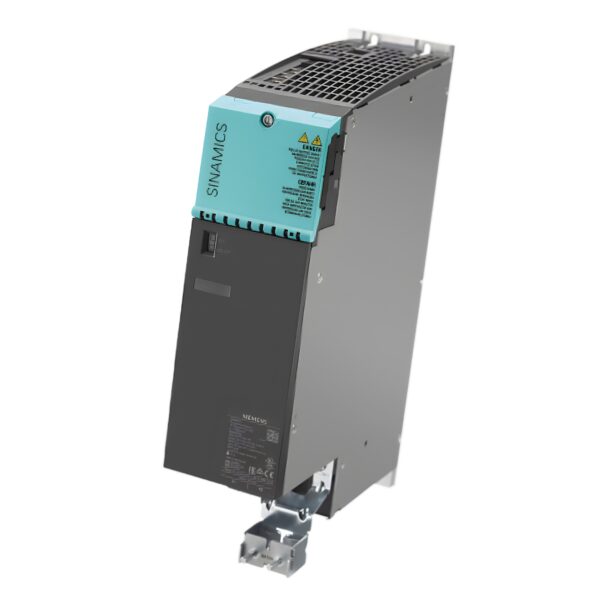

Siemens 6SL3120-2TE21-8AC0 SINAMICS S120 Double Motor Module

The Siemens 6SL3-120-2TE21-8AC0 is a high-performance Double Motor Module from the SINAMICS S120 series. Engineered for maximum precision and motion control, this C-type booksize module supports two independent 18 A motor outputs, making it perfect for complex motion applications.

Featuring optimized pulse patterns, DRIVE-CLiQ integration, and advanced Safety Integrated functions, this module delivers power, safety, and reliability in one compact unit – all ready for use in automated production lines, multi-axis machines, and robotic handling systems.

Technical Specifications

Model: 6SL3120-2TE21-8AC0 Siemens
Type: SINAMICS S120 Double Motor Module, C Type
Input Voltage: 600 V DC
Output Voltage: 400 V 3AC
Output Current: 18 A / 18 A
Cooling: Internal air cooling
Design: Booksize format (C Type)
Pulse Pattern: Optimized for efficiency and noise reduction
Safety Functions: Supports extended Safety Integrated functionality
Connectivity: Includes DRIVE-CLiQ cable

Function & Application

• Purpose: High-performance dual-axis motor module for modular drive systems
• Form Factor: Compact booksize design for tight cabinet installations
• System Integration: Built for the SINAMICS S120 modular drive system
• Use Case: Ideal for demanding multi-axis machine tools, handling systems, and robotics applications

Performance & Features

• Extended Safety Integrated: Enables STO, SS1, SS2, SLS, SDI, and other safety functions
• High Dynamics: Optimized current control for dynamic performance
• Dual Motor Capability: Two motor outputs in one compact module
• Integrated Diagnostics: Real-time data access via DRIVE-CLiQ
• Energy Efficiency: Reduced losses through smart switching and cooling design

Recommended Accessories & Services:

• [6FC8505-3EX03-0AA0 – Service Protect 3 Years Coverage]
• [6FC8505-5EX03-0AA0 – Service Protect 5 Years Coverage]

Delivery & Physical Information

• Net Weight: 8.100 kg
• Packaging Quantity: 1 Piece
• Country of Origin: Germany
• Estimated Dispatch Time: 15 Working Days

Product Lifecycle & Compliance

• Product Lifecycle (PLM): PM300 – Active Product
• RoHS Compliance: Since 05.05.2017
• WEEE Take-Back Obligation: Yes
• SCIP Number: 665c48b0-a5e0-4a82-a2c5-15ffafa028f6

Additional Product Details

• UPC: 804766208270
• EAN: 4034106439729
• Commodity Code: 85044086
• Catalog ID: D21MC
• Product Group: 9617
• Group Code: R220
• Product Class: A – Standard product, returnable within policy

Key Features & Benefits:

✅ Dual 18 A Output Channels – Independent motor control.

✅ 600V DC Input / 400V 3AC Output – Ideal for industrial drive systems.

✅ Booksize C Type – Compact and efficient for control cabinets.

✅ Extended Safety Integrated – Full suite of motion safety functions.

✅ DRIVE-CLiQ Ready – Plug-and-play diagnostics and commissioning.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we offer the best Siemens 6SL3120-2TE21-8AC0 prices, available for fast dispatch across the UK and Europe.

Need support selecting the right SINAMICS motor module or help with system upgrades? Contact Drive Outlet Megastore.

Our engineering team is ready to assist!
