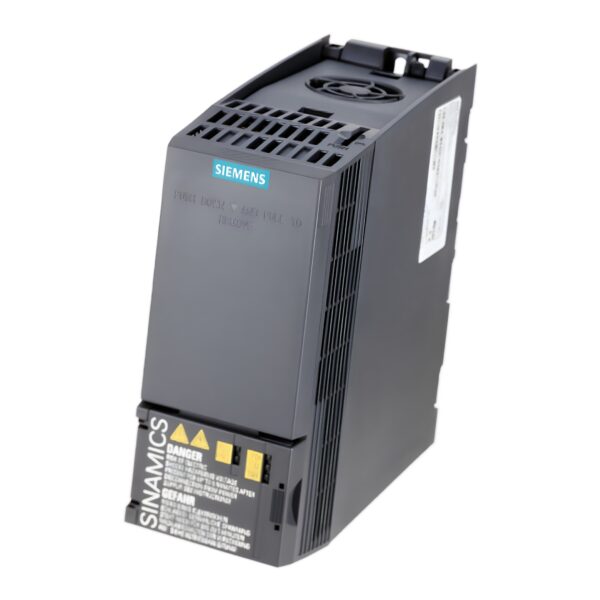

Siemens 6SL3210-1KE11-8UP2 SINAMICS G120C Inverter Drive – 0.55kW Low Overload / 0.37kW High Overload, 3AC 380–480V, IP20, FSAA

The 6SL3210-1KE11-8UP2 is a compact SINAMICS G120C inverter drive designed for reliable speed control of three-phase AC motors in space-constrained industrial automation applications. As part of the SINAMICS G120C compact converters family, it provides a robust and cost-effective solution for pumps, fans, conveyors, and general-purpose machinery.

This variant is supplied without an integrated EMC filter and features PROFIBUS-DP onboard, making it ideal for integration into existing Siemens automation environments where external filtering and fieldbus standardisation are required.

Technical Specifications

Manufacturer Part Number: 6SL3210-1KE11-8UP2 Siemens
Series: SINAMICS G120C
Product Family: SINAMICS G120C compact converters
Product Type: Inverter Drive (Compact Converter)

Electrical Specifications

Input Voltage: 3AC 380–480 V (+10% / −20%)
Input Frequency: 47–63 Hz

Overload Rating (Low Overload): 0.55 kW (150% 3s, 110% 57s, 100% 240s)
Overload Rating (High Overload): 0.37 kW (200% 3s, 150% 57s, 100% 240s)

EMC Filter: Not included (unfiltered)
Functional Safety: Safe Torque Off (STO) integrated

I/O & Communications

Control Supply: External 24 V
Digital Inputs: 6 DI
Digital Outputs: 2 DO
Analog Inputs: 1 AI
Analog Outputs: 1 AO
Temperature Input: 1 Mot_t (Motor Temperature)

Integrated Fieldbus: PROFIBUS-DP

Mechanical & Environmental Data

Degree of Protection: IP20 / UL Open Type
Frame Size: FSAA
Dimensions (H × W × D): 173 × 73 × 155 mm
Net Weight: 1.1 kg

Compliance & Product Data

Product Lifecycle: PM300 – Active Product
RoHS Compliance: Since 01.07.2006
WEEE Take-Back Obligation: Yes
EAN: 4042948668689
UPC: 804766249501
Commodity Code: 85044087
Country of Origin: Great Britain
SCIP Number: 38298a69-1ad9-4f1f-a8df-8d57835d7010

Accessories (Common Options)

• 3RV2011-1JA10 – Motor protection circuit breaker (S00, Class 10, 7–10 A)
• 6SL3054-4AG00-2AA0 – SINAMICS SD card, 512 MB (empty)
• 6SE6400-3CC00-2AD3 – Line reactor 200–480V 3AC, 1.9A (Base FSA)
• 6SE6400-3TC00-4AD2 – Output reactor 380–480V 3AC, 4A (Base FSA)

Key Features & Benefits

✅ Compact G120C Design. FSAA frame size ideal for tight control panels and OEM machinery.

✅ Flexible Overload Capability. Supports both low and high overload duty profiles.

✅ PROFIBUS-DP Integrated. Seamless connection to Siemens PLC and legacy PROFIBUS networks.

✅ Unfiltered Variant. Perfect for systems using centralised or application-specific EMC filtering.

✅ Integrated STO Safety. Meets modern machine safety requirements without extra hardware.

📦 Order the Siemens 6SL3210-1KE11-8UP2 from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable 6SL3210-1KE11-8UP2 prices.

Need help selecting EMC filters, reactors, or confirming PROFIBUS compatibility? Contact us today for advice or a fast quotation.

Siemens SINAMICS G120C – compact, reliable drive technology for industrial automation.
