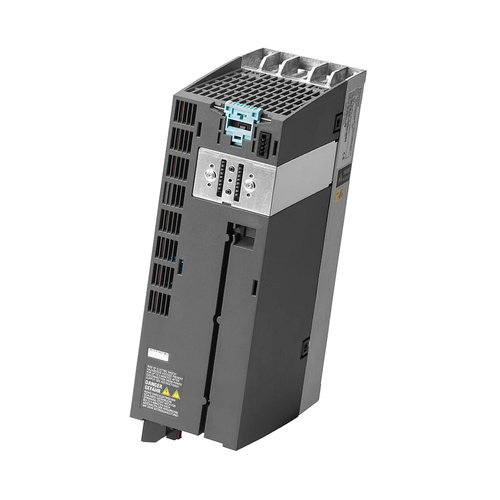

Siemens 6SL3210-1PB13-8UL0 SINAMICS PM240-2 Power Module – 0.75kW Three-Phase, IP20

The 6SL3210-1PB13-8UL0 is a compact and robust Siemens SINAMICS PM240-2 power module designed for reliable power delivery and precise motor control within modular SINAMICS drive systems. Rated at 0.75 kW with a maximum output current of 7.5 A, this three-phase power module supports advanced vector control for accurate speed and torque regulation of AC motors in OEM and light industrial applications.

Built for panel-mounted installations, the PM240-2 features an IP20 enclosure suitable for control cabinet use. Its compact footprint, stable performance across a wide operating range, and compliance with international standards make it an ideal choice for space-constrained automation systems requiring dependable Siemens-quality performance.

Technical Specifications

Model: 6SL3210-1PB13-8UL0 Siemens
Series: SINAMICS PM240-2
Device Type: Power Module
Rated Power Output: 0.75 kW
Maximum Output Current: 7.5 A
Number of Phases: Three-Phase
Input Voltage: 200–240V AC
Output Frequency: Up to 200 Hz
Control Method: Vector Control
IP Rating: IP20
Application: Modular drive systems, OEM machinery, panel-built automation

Electrical Specifications

• Supply Voltage Range: 200–240V AC
• Phases: 3-phase
• Rated Power: 0.75 kW
• Maximum Output Current: 7.5 A
• Drive Type: Vector Control Power Module
• Compatible Motor Type: AC Motors

Mechanical Specifications

• Height: 196 mm
• Width: 73 mm
• Depth: 165 mm
• Mounting Type: Panel Mount
• Housing: Control cabinet installation (IP20)

Environmental Specifications

• Minimum Operating Temperature: -5°C
• Maximum Operating Temperature: 40°C
• IP Rating: IP20

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• C-Tick (RCM): Yes
• Low Voltage Directive: 2006/95/EC
• EMC Directive: 2004/108/EC

Key Features & Benefits

✅ 0.75kW Power Module. Ideal for compact modular drive applications.

✅ Three-Phase Operation. Designed for stable industrial power systems.

✅ Vector Control Capability. Accurate torque and speed control for AC motors.

✅ Compact Panel-Mount Design. Saves valuable space in control cabinets.

✅ Wide Compliance. Meets global electrical and safety standards.

✅ Genuine Siemens Quality. Proven reliability in industrial automation environments.

📦 Order the 6SL3210-1PB13-8UL0 from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable 6SL3210-1PB13-8UL0 prices.

This 0.75kW PM240-2 power module delivers reliable Siemens performance for modular drive and automation systems.

Check stock now or request a quote.

Modular power. Precise control. Siemens engineering. — Drive Outlet Megastore
