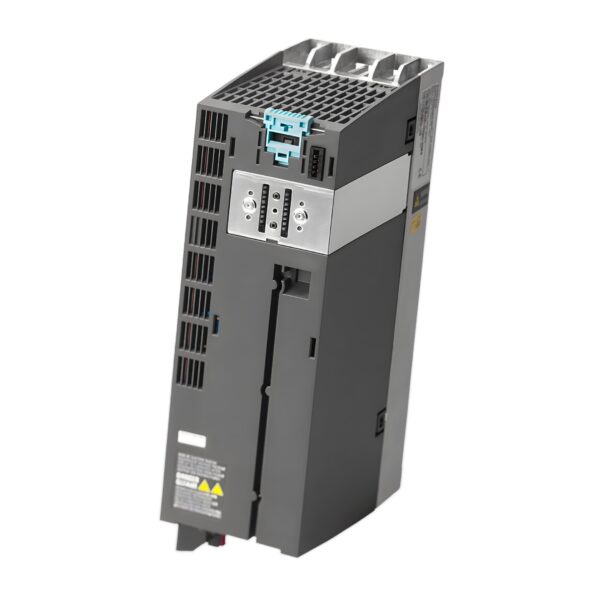

Siemens 6SL3210-1PE21-4UL0 Inverter Drive – 4kW, IP20
6SL32101PE214UL0 – Compact and efficient PM240-2 Power Module for SINAMICS G120 drives. This model comes without EMC filter, but includes a built-in braking chopper, supports both high and low overload modes, and is ideal for flexible motor control in industrial environments.
Technical Specifications
- Model: 6SL3210-1PE21-4UL0 Siemens
- Series: SINAMICS G120
- Module Type: PM240-2 Power Module
- Voltage Input: 3AC 380–480 V ±10%, 47–63 Hz
- Output (High Overload): 4 kW @ 200% for 3s, 150% for 57s, 100% for 240s (–10 to +50°C).
- Output (Low Overload): 5.5 kW @ 150% for 3s, 110% for 57s, 100% for 240s (–10 to +40°C).
- Braking Chopper: Integrated.
- EMC Filter: Not included.
- Firmware Compatibility: Version V4.6 approved.
- Mounting Type: FSB frame, panel-mounted.
- Protection Rating: IP20.
- Net Weight: 2.9 kg.
- Dimensions (H×W×D): 291 × 100 × 165 mm.
- Lifecycle Status: Active product.
- Country of Origin: Great Britain.
Function & Application
Purpose: The SINAMICS PM240-2 Power Module enables modular drive configurations, providing efficient motor operation and integrated braking capabilities.
This version is ideal for users who manage EMC externally or in electrically shielded environments.
Typical Applications:
- General conveyor systems.
- Light-duty motor control in automation panels.
- HVAC and fan control systems.
- Compact cabinet installations with external EMC solutions.
Performance & Features
- Dual Overload Profiles : Supports both high and low overload demands.
- Built-in Braking Chopper : Provides safe deceleration without additional components.
- No Internal Filter : Suitable for systems using central or external EMC filtering.
- Compact Design : Ideal for space-constrained cabinets.
- Firmware V4.6 Compatible : Fully approved for current SINAMICS G120 control units.
6SL3210-1PE21-4UL0Compliance & Classification
- RoHS Compliance: Since 01.07.2006.
- WEEE Take-Back Obligation: Yes.
- REACH Substances:
- Lead (CAS 7439-92-1) > 0.1%.
- Diboron trioxide (CAS 1303-86-2) > 0.1%.
- SCIP Number: 7fab967f-1728-47df-b3f0-b8014fd81492.
- Commodity Code: 85044095.
- Catalog ID: D11.1SD.
- Product Group: 9772.
- Group Code: R220.
- Product Class: A – Returnable stock item.
- EAN: 4042948666067.
- UPC: 887621779924.
Key Features & Benefits:
✅ 4 kW High Overload / 5.5 kW Low Overload : Versatile power for variable torque loads.
✅ Built-in Braking Chopper : Simplifies design and enhances motor safety.
✅ No Integrated Filter : Ideal for systems using external EMC strategies.
✅ Space-Saving IP20 Housing : FSB frame fits tight cabinet layouts.
✅ Seamless Compatibility with CU230P-2 and CU240E-2 Series.
