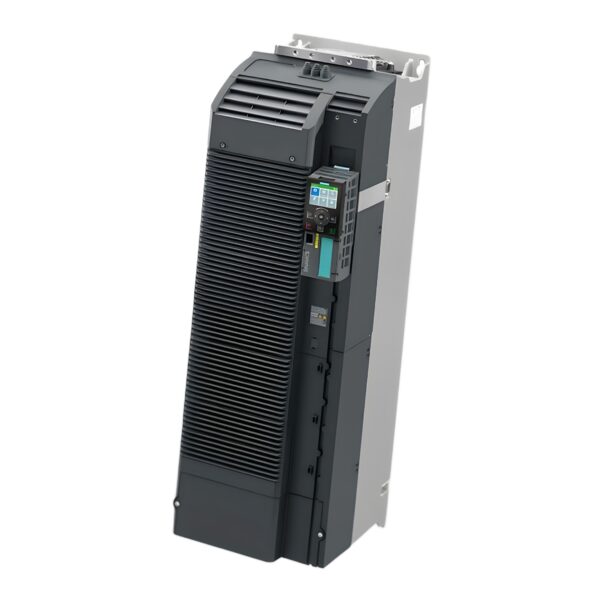

Siemens 6SL3210-1PE33-0AL0 Inverter Drive – 132kW, IP20
6SL32101PE330AL0 – High-performance PM240-2 FSG Power Module for SINAMICS G120 and S120 drive systems. Equipped with a built-in braking chopper and EMC Class C2 filter, this unit delivers robust overload handling and system efficiency in high-power industrial applications.
Technical Specifications
- Model: 6SL3210-1PE33-0AL0 Siemens
- Series: SINAMICS G120 / S120
- Module Type: PM240-2 Power Module
- Voltage Input: 3AC 380–480 V ±10%, 47–63 Hz
- Output (High Overload): 132 kW @ 200% for 3s, 150% for 57s, 100% for 240s (–20 to +50°C)
- Output (Low Overload): 160 kW @ 150% for 3s, 110% for 57s, 100% for 240s (–20 to +40°C)
- Braking Chopper: Integrated
- EMC Filter: Integrated, Class C2
- Firmware Compatibility: V4.7 SP9 and V5.1
- Mounting Type: FSG frame
- Protection Rating: IP20
- Net Weight: 107 kg
- Dimensions (H×W×D): 1000 × 305 × 357 mm
- Lifecycle Status: Active product
- Country of Origin: Germany
Function & Application
Purpose: The SINAMICS PM240-2 FSG Power Module is engineered for large-scale motor control with built-in safety and filtering features.
It offers efficient and dynamic performance, suitable for high-power industrial drives.
Typical Applications:
- Heavy-duty conveyor systems
- Centrifuges and extruders
- Industrial compressors and pumps
- High-inertia mechanical loads
- Energy-intensive manufacturing equipment
Performance & Features
- 132 kW / 160 kW Output Ratings : Dual-mode support for high and low overload profiles.
- Built-in Braking Chopper : Reduces mechanical wear during deceleration.
- Integrated Class C2 Filter : Minimizes conducted emissions for EMC compliance.
- FSG Housing : Designed for large systems and panel-mounted installations.
- Compatible with G120 and S120 Control Units : Approved for firmware V4.7 SP9 and V5.1.
6SL3210-1PE33-0AL0 Compliance & Classification
- RoHS Compliance: Since 01.01.2018.
- WEEE Take-Back Obligation: Yes.
- REACH Substances:
- Lead (CAS 7439-92-1) > 0.1%
- Lead monoxide (CAS 1317-36-8) > 0.1%
- Tris(2-chloroethyl) phosphate (CAS 115-96-8) > 0.1%
- Cadmium oxide (CAS 1306-19-0) > 0.1%
- SCIP Number: 5edcc585-8cfb-4f2e-aebe-a206f71873ff
- Commodity Code: 85044095
- Catalog ID: D11.1SD
- Product Group: 2255
- Group Code: R220
- Product Class: A – Returnable stock item
- EAN: 4042948676783
- UPC: 804766567773
Key Features & Benefits:
✅ 132 kW High Overload / 160 kW Low Overload : Handles intense start/stop cycles.
✅ Integrated Braking Chopper : Provides built-in braking capability without external devices.
✅ EMC Class C2 Filter : Ensures compliance in industrial network environments.
✅ Firmware-Approved : Compatible with CU firmware versions V4.7 SP9 and V5.1.
✅ Large FSG Frame : Ideal for large-scale installations with high load demands.
📦 Order Today for Fast UK & Europe Delivery!
At Drive Outlet Megastore, we offer the most competitive Siemens 6SL3210-1PE33-0AL0 prices, ready for fast shipping across the UK and Europe.
Need expert help choosing the right PM240-2 power module, configuring CU compatibility, or planning load-specific overload settings?
Contact our drive systems team today.
Power up with confidence – with Siemens and Drive Outlet Megastore.
