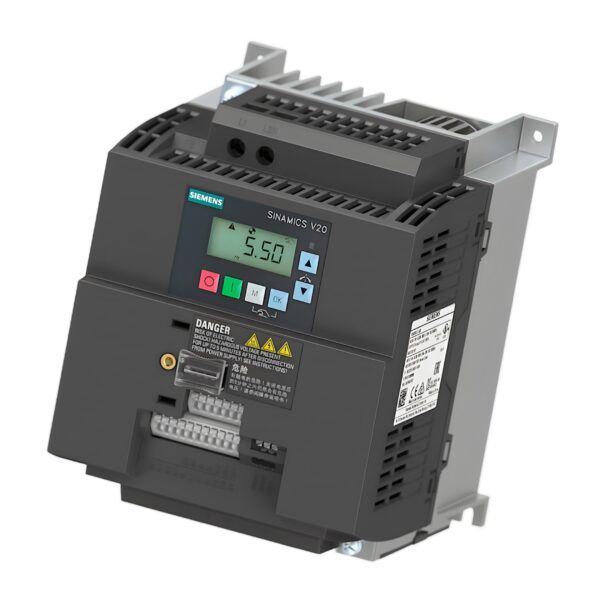

Siemens 6SL3210-5BB22-2UV1 Inverter Drive – 2.2kW, 1PH, IP20

The Siemens 6SL3-210-5BB22-2UV1 SINAMICS V20 is a basic frequency inverter designed for cost-efficient operation in small machinery and OEM systems. With integrated MODBUS RTU communication, built-in BOP, and 150% overload capability, it delivers reliable performance in tight spaces.
Ideal for fans, pumps, and conveyors, the V20 offers plug-and-play commissioning, rugged design, and efficient power control for industrial automation tasks.

Technical Specifications

Model: 6SL3210-5BB22-2UV1 Siemens
Series: SINAMICS V20
Rated Power: 2.2 kW
Input Voltage: 200–240 V AC 1-phase (-15% / +10%)
Frequency Range: 47–63 Hz
Output Current: Based on overload rating – 150% for 60 seconds
Protection: IP20 / UL Open Type
Frame Size: AD
Dimensions (WxHxD): 136 × 176.5 × 160 mm
Net Weight: 1.900 kg

Function & Application

• Purpose: Compact and cost-effective inverter for controlling basic variable-speed applications
• Typical Use Cases: Fans, pumps, compressors, conveyor belts, mixers
• I/O Configuration:
  • 4 x Digital Inputs (DI)
  • 2 x Digital Outputs (DO)
  • 2 x Analog Inputs (AI)
  • 1 x Analog Output (AQ)
• Fieldbus Communication: USS / MODBUS RTU
• Integrated Features:
  • Built-in Basic Operator Panel (BOP)
  • Free commissioning via USB or IOP interface

Performance & Features

• Quick Commissioning: BOP display allows easy parameter setup without software
• Overload Capability: 150% overload for 60s enables operation under demanding loads
• Energy Saving Functions: Built-in ECO mode and automatic motor adaptation
• Cooling: Natural air-cooled, compact heat sink design
• Mounting: DIN rail or wall mount with compact footprint

Recommended Accessories & Services

• [3RV2742-5GD10 – Motor Protection Circuit Breaker (40 A)]
• [6SE6400-3CC03-5CB3 – Line Reactor, 1AC 29.5 A, 200–240 V]
• [6FC8505-3EX01-0AA0 – 3-Year Service Protect Warranty]
• [6FC8505-5EX01-0AA0 – 5-Year Service Protect Warranty]

Delivery & Compliance

• Packaging Dimensions: 150 × 223 × 166 mm
• Packaging Quantity: 1 Piece
• Country of Origin: China

Product Compliance & Classification

• RoHS Compliance: Since 05.07.2010
• WEEE Take-Back Obligation: Yes
• SCIP Number: 8c21ab76-b63d-48cf-8ef1-78b75e91e862
• Commodity Code: 85044095
• Catalog ID: SINAMICS V20
• Product Group: 5680
• Group Code: R220
• Product Class: C – Made to order, not returnable
• EAN: 4025515675433
• UPC: 195125015548

Key Features & Benefits:

✅ 2.2 kW Output Power – For light-to-medium industrial loads.

✅ 150% Overload for 60s – Handles peak torque with ease.

✅ Built-in BOP Interface – Easy parameter setup.

✅ USS/MODBUS RTU Support – Simple fieldbus integration.

✅ IP20 Protection / Size AD – Compact form factor.
