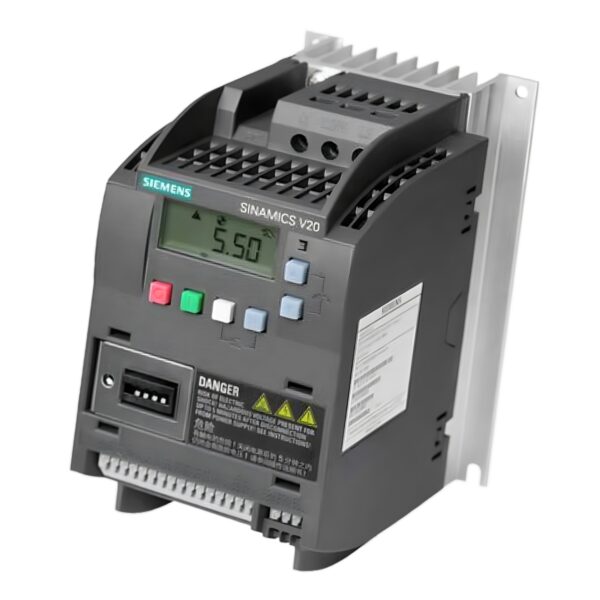

Siemens 6SL3210-5BE21-5UV0 Inverter Drive – 1.5kW, 3PH, IP20

The Siemens 6SL3-210-5BE21-5UV0 SINAMICS V20 is a versatile and compact drive for controlling standard three-phase motors in a wide range of automation and machinery applications. With integrated fieldbus, onboard BOP, and 150% overload capability, it offers exceptional performance and fast deployment.
Perfect for OEM systems, building management, and light manufacturing, this inverter combines durability, energy efficiency, and cost-effectiveness.

Technical Specifications

Model: 6SL3210-5BE21-5UV0 Siemens
Series: SINAMICS V20
Rated Power: 1.5 kW
Input Voltage: 380–480 V AC 3-phase (-15% / +10%)
Frequency Range: 47–63 Hz
Output Current: Based on overload rating – 150% for 60 seconds
Protection: IP20 / UL Open Type
Frame Size: A
Dimensions (WxHxD): 90 × 166 × 145.5 mm
Net Weight: 0.990 kg

Function & Application

• Purpose: Compact and efficient inverter for general-purpose variable-speed control
• Typical Use Cases: HVAC systems, pumps, fans, conveyors, and standard machinery
• I/O Configuration:
  • 4 x Digital Inputs (DI)
  • 2 x Digital Outputs (DO)
  • 2 x Analog Inputs (AI)
  • 1 x Analog Output (AQ)
• Fieldbus Communication: USS / MODBUS RTU
• Integrated Features:
  • Built-in Basic Operator Panel (BOP)
  • Optional USB commissioning

Performance & Features

• Plug-and-Play Commissioning: Quick setup via integrated BOP without software
• Robust Overload Handling: 150% overload for 60s ensures reliable performance
• Energy Efficiency: ECO mode and motor tuning features included
• Cooling Design: Natural convection via heat sink
• Mounting: Supports wall and DIN rail installations

Recommended Accessories & Services

• [3RV2011-1HA10 – Motor Protection Circuit Breaker (5.5–8 A)]
• [6SL3201-2AD20-8VA0 – SINAMICS V20 Brake Module (380–480 V)]
• [6FC8505-3EX01-0AA0 – 3-Year Service Protect Warranty]
• [6FC8505-5EX01-0AA0 – 5-Year Service Protect Warranty]

Delivery & Compliance

• Packaging Dimensions: 145 × 210 × 180 mm
• Packaging Quantity: 1 Piece
• Country of Origin: China

Product Compliance & Classification

• RoHS Compliance: Since 05.07.2010
• WEEE Take-Back Obligation: Yes
• SCIP Number: dddad763-b9e2-422d-a5d4-3b520e16c4f8
• Commodity Code: 85044095
• Catalog ID: SINAMICS V20
• Product Group: 5681
• Group Code: R220
• Product Class: C – Made to order, not returnable
• EAN: 6940408102736
• UPC: 887621056216

Key Features & Benefits:

✅ 1.5 kW Output Power – Ideal for mid-sized equipment loads.

✅ 150% Overload for 60s – Ensures stable operation under stress.

✅ BOP Included – Fast and simple configuration.

✅ Fieldbus Connectivity – Supports USS and MODBUS RTU.

✅ IP20 Protection / Size A – Compact and easy to install.

⚠️ Product Notice

This product has been phased out as of 10.02.2025. It has been succeeded by:
➡️ Siemens 6SL3210-5BE21-5UV1 – Enhanced with integrated braking unit
