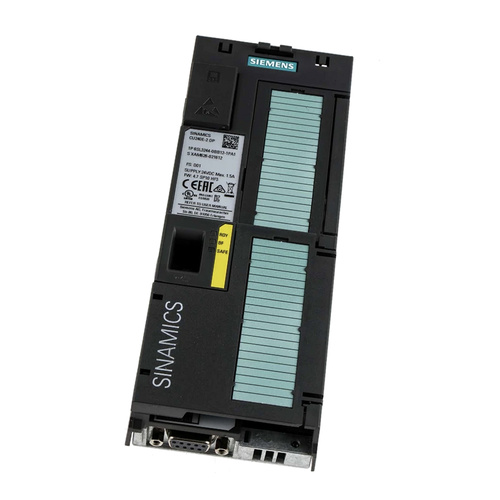

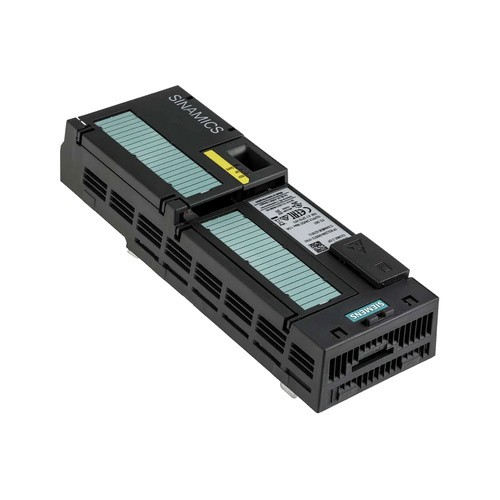

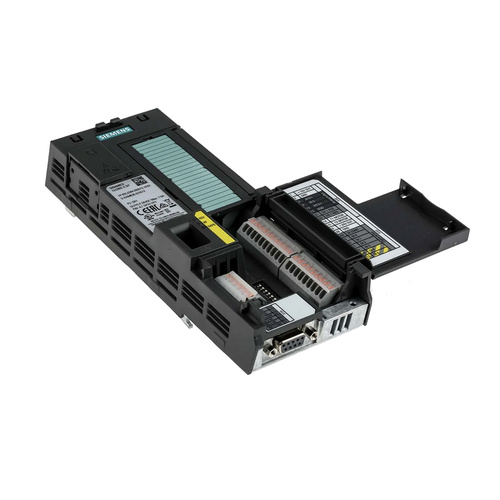

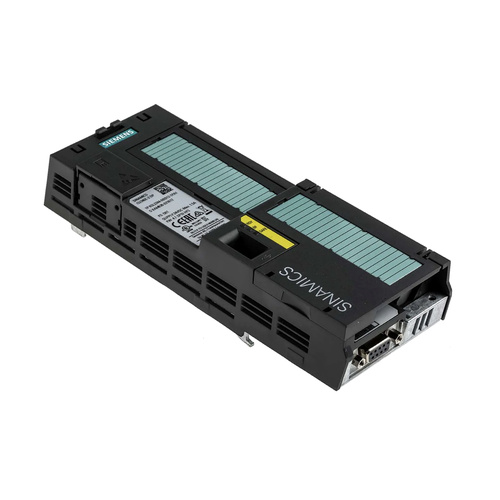

Siemens 6SL3244-0BB13-1FA0 SINAMICS G120 CU240E-2 PN-F Control Unit – PROFINET, Safety Integrated, IP20

The 6SL3244-0BB13-1FA0 is an advanced SINAMICS G120 CU240E-2 PN-F control unit from :contentReference[oaicite:0]{index=0}, engineered for high-performance drive applications requiring integrated functional safety and real-time Ethernet communication. This E-type control unit supports PROFINET connectivity and advanced F-type safety functions for seamless integration into modern safety-oriented automation systems.

Designed for use within modular SINAMICS G120 drive systems, this control unit provides Safety Integrated STO as well as extended safety functions including SS1, SLS, SSM, and SDI. Supplied without a power module, it is suitable for flexible system configuration and operates reliably in control cabinet environments up to +50 °C.

Technical Specifications

Model: 6SL3244-0BB13-1FA0
Series: SINAMICS G120
Product Type: Control Unit (CU240E-2 PN-F)
Communication Interface: PROFINET
Safety Concept: E-type with F-type safety
Degree of Protection: IP20
Application: Safety-critical industrial drive systems

I/O & Interface Specifications

• Digital Inputs: 6
• Digital Outputs: 3
• Analogue Inputs: 2
• Analogue Outputs: 2
• Fail-safe Digital Inputs: Up to 3 (F-DI)
• Motor Temperature Sensor: PTC / KTY interface
• USB Interface: Yes
• SD / MMC Interface: Yes

Safety Functions

• STO: Safe Torque Off (integrated)
• SS1: Safe Stop 1
• SLS: Safely Limited Speed
• SSM: Safe Speed Monitor
• SDI: Safe Direction

Mechanical Specifications

• Mounting: Control cabinet / chassis mounting
• Net Weight: 0.49 kg
• Supplied: Without power module

Environmental Specifications

• Minimum Operating Temperature: 0 °C
• Maximum Operating Temperature: +50 °C
• Installation Environment: Indoor control cabinets

Compliance & Certifications

• CE Marked: Yes
• RoHS Compliant: Yes
• WEEE Directive: Yes
• Product Lifecycle: Active (PM300)

Key Features & Benefits

✅ Integrated PROFINET. High-speed, real-time Ethernet communication for advanced automation systems.

✅ Safety Integrated (F-Type). Supports STO, SS1, SLS, SSM, and SDI without external safety hardware.

✅ Flexible Modular Design. Compatible with a wide range of SINAMICS G120 power modules.

✅ Comprehensive I/O Capability. Supports standard and fail-safe signals in one compact unit.

✅ Siemens Industrial Reliability. Designed for continuous operation in demanding environments.
