Siemens 6SL3246-0BA22-1FA0 SINAMICS G120 Control Unit
The Siemens 6SL3246-0BA22-1FA0 CU250S-2 PN is a high-performance Control Unit designed for the SINAMICS G120 modular drive system. It enables vector control, advanced positioning (EPOS), and comprehensive safety integration – all within a compact, field-proven unit.
With native PROFINET support, rich digital and analog I/O, and encoder compatibility (D-CLiQ, HTL/TTL/SSI), this control unit is ideal for demanding motion-centric automation. Advanced safety functions like STO, SBC, and SS1 come standard, with the option to unlock more via extended licensing.
Technical Specifications
Model: 6SL3246-0BA22-1FA0 Siemens
Type: SINAMICS G120 CU250S-2 PN Control Unit
Control Mode: Vector Control with Easy Positioning (EPOS)
Interfaces: PROFINET, USB, SD/MMC slot

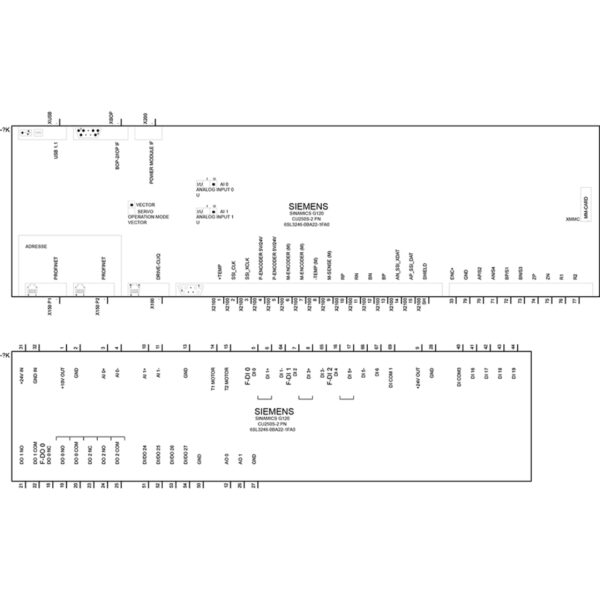

I/O Support:
- 4 configurable DI/DO
- 6 DI (incl. 3 failsafe DI)
- 5 additional DI
- 3 DO (incl. 1 failsafe DO)
- 2 AI / 2 AO
Cooling: Natural air cooling
Protection Class: IP20
Function & Application
- Purpose: Compact control unit for modular SINAMICS G120 drives
- Vector Control: Precision speed and torque regulation
- Positioning: Integrated EPOS with license for advanced positioning tasks
- Encoder Compatibility: D-CLiQ, HTL, TTL, SSI, Resolver via terminal
- Use Case: Suitable for conveyor systems, packaging, processing machines, and motion-centric applications
Safety & Integration
- Safety Integrated Functions: STO, SBC, SS1 included as standard
- Extended Safety Functions: Enabled via optional extended safety license
- Fieldbus Integration: Native PROFINET for seamless TIA Portal compatibility
- Diagnostic Interfaces: USB and SD/MMC for fast commissioning, data backup, and firmware updates
Recommended Power Module (Required):
- [6SL3210-1PE14-3UL1 – SINAMICS PM240-2 Power Module (Unfiltered)]
- Voltage: 380–480 V AC
- Integrated braking chopper
- High overload capacity
- Compact size: 196 × 73 × 165 mm
Delivery & Physical Information
- Net Weight: 0.610 kg
- Package Size: 93.00 × 240.00 × 68.00 mm
- Packaging Quantity: 1 Piece
- Country of Origin: Great Britain
Product Lifecycle & Compliance
- Product Lifecycle (PLM): PM300 – Active Product
- RoHS Compliance: Since 01.07.2006
- WEEE Take-Back Obligation: Yes
- SCIP Number: 97fb4402-3188-417a-be8f-c723427ef13d
Additional Product Details
- UPC: 887621220501
- EAN: 4042948664117
- Commodity Code: 85049090
- Catalog ID: D11.1SD
- Product Group: 9779
- Group Code: R220
- Product Class: A – Standard product, returnable within policy
Key Features & Benefits:
✅ Integrated PROFINET Interface – Seamless integration into TIA Portal.
✅ STO, SS1 & SBC Safety Functions – Built-in safety.
✅ Positioning via EPOS – Advanced motion without external controllers.
✅ Flexible Encoder Support – D-CLiQ, Resolver, TTL, SSI & more.
✅ I/O Rich Design – Configurable DI/DO, analog inputs/outputs.
📦 Order Today for Fast UK & Europe Delivery!
At Drive Outlet Megastore, we offer the most competitive Siemens 6SL3246-0BA22-1FA0 prices, ready for quick dispatch across the UK and Europe.
Need help choosing the right Power Module, setting up safety licenses, or selecting the right encoder interface? Contact Drive Outlet Megastore.
Our motion control specialists are here to help!
