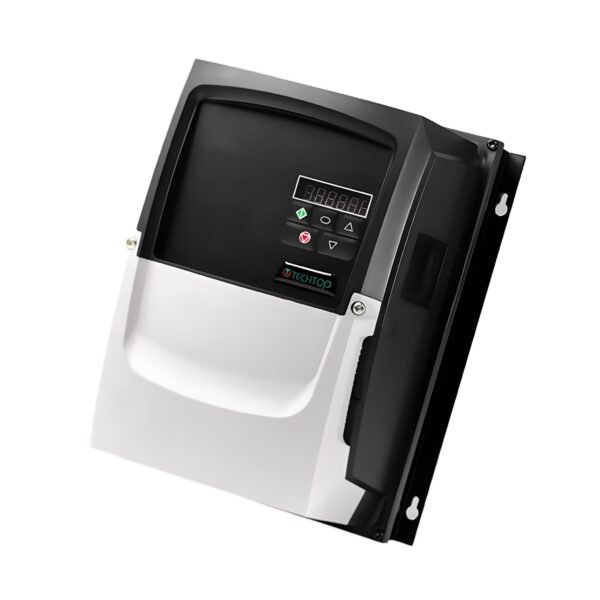

TEC TEC-3-320153-104X Inverter Drive – 4kW IP66 Single-Phase Input, Three-Phase Output with EMC Filter & Brake Chopper

The TEC-3-320153-104X is a heavy-duty TECDrive inverter engineered for high-performance motor control in harsh, outdoor, and washdown environments. Delivering 4 kW of output power with a rated current of 15.3 A, it operates from a 230V single-phase supply and provides a 230V three-phase output, enabling powerful three-phase motor operation where only single-phase power is available.

Built into a robust IP66-rated enclosure, this inverter is fully protected against dust ingress and high-pressure water jets, ensuring reliable operation in demanding industrial conditions. It features a clear LED status display for straightforward monitoring and diagnostics, integrated Modbus RTU and CANopen communications for seamless automation integration, and includes both a built-in EMC filter and brake chopper for superior performance in dynamic and high-inertia applications.

Technical Specifications

Model: TEC-3-320153-104X
Series: TECDrive
Device Type: Variable Speed Inverter Drive
Rated Power Output: 4 kW
Rated Output Current: 15.3 A
Input Voltage: 230V AC, Single-Phase, 50 Hz
Output Voltage: 230V AC, Three-Phase, 50 Hz
IP Rating: IP66
Frame Size: 3
Application: Outdoor machinery, conveyors, pumps, washdown environments

Electrical Specifications

• Input Voltage: 230V AC (1-phase)
• Output Voltage: 230V AC (3-phase)
• Rated Output Current: 15.3 A
• Output Power: 4 kW
• Switching: No internal isolator
• EMC Filter: Integrated
• Brake Chopper: Integrated
• Display Type: LED Status Display
• Communications: Modbus RTU, CANopen

Mechanical Specifications

• Height: 310 mm
• Width: 211 mm
• Depth: 252 mm
• Frame Size: 3
• Cooling Method: Convection (sealed enclosure)
• Installation: Wall or machine mount
• Housing: Sealed industrial enclosure (IP66)

Environmental Specifications

• IP Rating: IP66
• Operating Frequency: 50 Hz
• Motor Cable Length (Max): 100 metres
• Max Supply Cable Size: 8 mm²
• Max Motor Cable Size: 8 mm²

Compliance & Certifications

• CE Marked: Yes
• UKCA Compliant: Yes
• Safety Standards: EN 61800-5-1
• EMC Standards: EN 61800-3

Key Features & Benefits

✅ 4kW, 15.3A Output. Designed for high-power and high-torque motor applications.

✅ 230V Single-Phase Input. Ideal where three-phase supplies are unavailable.

✅ 230V Three-Phase Output. Reliable operation of standard industrial motors.

✅ Integrated EMC Filter. Reduced electrical interference and improved compliance.

✅ Built-In Brake Chopper. Enhanced braking for dynamic and high-inertia loads.

✅ IP66 Rated Enclosure. Perfect for outdoor, dusty, and washdown environments.

✅ LED Status Display. Clear operational and fault indication.

✅ Modbus RTU & CANopen. Easy integration into automation networks.

✅ Decentralised Mounting. Install directly on machinery to reduce control cabinet requirements.

📦 Order the TEC-3-320153-104X from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable TEC-3-320153-104X prices.

Engineered for demanding industrial environments, this IP66 TECDrive inverter with integrated EMC filtering and braking capability delivers reliable, high-power motor control.

Check stock now or request a quote.

Rugged design. Reliable control. Engineered by TEC. — Drive Outlet Megastore
