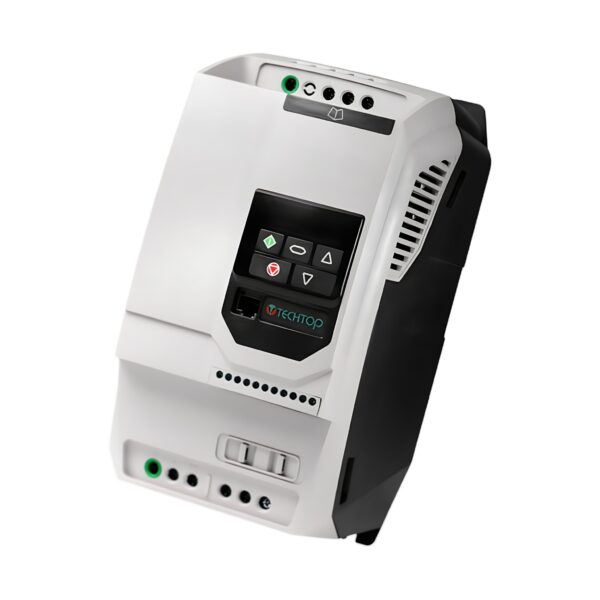

TEC TEC-3-340180-3F42 Inverter Drive – 7.5kW Three-Phase Input, Three-Phase Output

The TEC-3-340180-3F42 is a high-capacity TECDrive inverter engineered for demanding industrial motor control applications. Delivering 7.5 kW of output power with a rated current of 18 A, it operates on a 400V three-phase supply and provides a stable 400V three-phase output suitable for heavy-duty conveyors, pumps, fans, compressors, and automated machinery.

Equipped with a built-in brake chopper for enhanced braking performance, an integrated EMC filter for compliance and noise reduction, and a clear LED status display for system feedback, this inverter ensures reliable operation in modern industrial environments. With communication support for Modbus RTU and CANopen, it integrates seamlessly into automation control architectures. Its robust Frame Size 3 design provides excellent thermal endurance and durability.

Technical Specifications

Model: TEC-3-340180-3F42
Series: TECDrive
Device Type: Variable Speed Inverter Drive
Rated Power Output: 7.5 kW
Rated Output Current: 18 A
Input Voltage: 400V AC, Three-Phase, 50 Hz
Output Voltage: 400V AC, Three-Phase, 50 Hz
IP Rating: IP20
Frame Size: 3
Application: Heavy-duty pumps, conveyors, compressors, industrial machinery

Electrical Specifications

• Input Voltage: 400V AC (3-phase)
• Output Voltage: 400V AC (3-phase)
• Rated Output Current: 18 A
• Output Power: 7.5 kW
• Switching: No internal isolator
• EMC Filter: Yes (Integrated)
• Brake Chopper: Yes (Built-in)
• Display Type: LED Status Display
• Communications: Modbus RTU, CANopen

Mechanical Specifications

• Height: 261 mm
• Width: 131 mm
• Depth: 175 mm
• Frame Size: 3
• Cooling Method: Fan-assisted cooling
• Installation: Panel mount (IP20)
• Housing: Industrial thermoplastic

Environmental Specifications

• IP Rating: IP20
• Operating Frequency: 50 Hz
• Motor Cable Length (Max): 100 metres
• Max Supply Cable Size: 8 mm²
• Max Motor Cable Size: 8 mm²

Compliance & Certifications

• CE Marked: Yes
• UKCA Compliant: Yes
• EMC: Integrated filter (Class C1/C2)
• Safety Standards: EN 61800-5-1
• EMC Standards: EN 61800-3

Key Features & Benefits

✅ 7.5kW, 18A Output. Built for heavy-duty industrial applications.

✅ 400V Three-Phase Input & Output. Reliable and efficient power delivery.

✅ Built-in Brake Chopper. Provides enhanced braking capability for dynamic loads.

✅ Integrated EMC Filter. Ensures compliance and reduces electromagnetic interference.

✅ LED Status Display. Clear and quick feedback for monitoring and diagnostics.

✅ Modbus RTU & CANopen. Ready for sophisticated automation networks.

✅ Frame Size 3. High thermal performance for long-term reliability.

📦 Order the TEC-3-340180-3F42 from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable TEC-3-340180-3F42 prices.

Trusted across industrial automation, manufacturing, and OEM sectors, this TECDrive inverter delivers powerful, reliable performance in demanding applications.

Check stock now or request a quote.

High power. Maximum reliability. Engineered by TEC. — Drive Outlet Megastore
