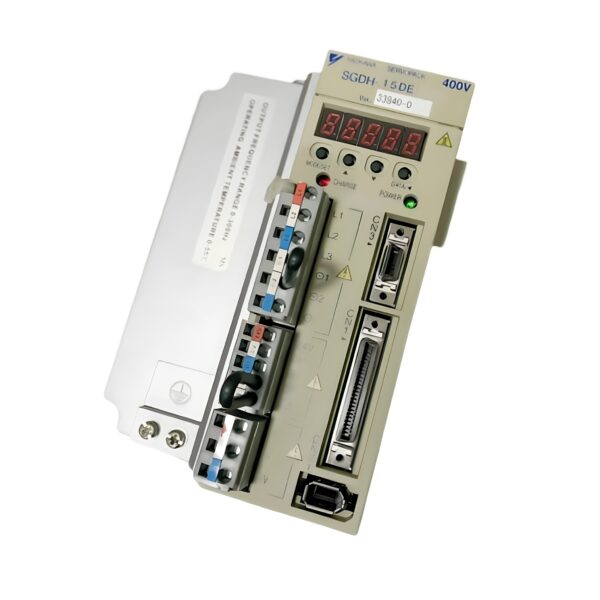

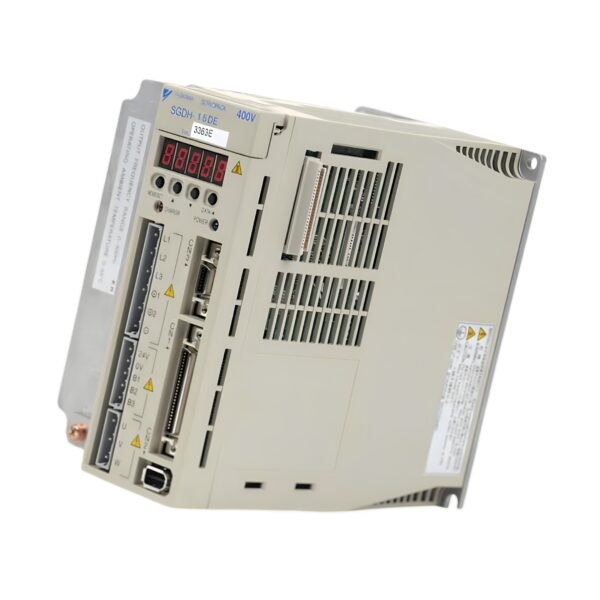

Yaskawa SGDH-15DE-OY Servo Drive
The Yaskawa SGDH-15DE-OY is a Sigma II series AC servo amplifier engineered for precision motion control in 400 V-class three-phase systems. With a rated output of 1.5 kW and a wide frequency range up to 300 Hz, this compact Servopack provides reliable, high-speed control for industrial automation and machine tool applications.
Technical Specifications
Model: SGDH-15DE-OY Yaskawa
Series: Sigma II
Drive Type: Servopack AC Servo Amplifier
Input Voltage: 3-phase 400–480 VAC ±10%
Input Current: 4.8 A
Frequency: 50/60 Hz
Output Voltage: 0–480 VAC
Output Current: 5.4 A
Output Frequency: 0–300 Hz
Rated Output Power: 1.5 kW
Mechanical Specifications
- Form Factor: Enclosed vertical-mount chassis
- Cooling Method: Forced air (fan-cooled)
- Mounting: Panel mount with bottom terminal access
- Dimensions: Approx. 100 × 200 × 180 mm
- Weight: ≈ 3.5 kg
Options & Protection
- Motor Compatibility: Sigma II rotary and linear servos
- Encoder Support: Supports 13–20-bit incremental/absolute encoders
- Braking Options: External brake resistor support
- IP Rating: IP1X (basic protection against large objects)
Compliance & Certifications
- CE Marked: Yes
- UL Listed: Yes
- RoHS Compliant: Yes
- Safety Standards: IEC/EN 61800-5-1, EN 55011
Key Features & Benefits
✅ 400 V-Class Power. Optimized for high-voltage industrial systems.
✅ 1.5 kW Output. Reliable mid-range servo amplifier performance.
✅ Precision Frequency Control. Up to 300 Hz for dynamic applications.
✅ Compact Build. Panel-mountable for space-efficient control cabinets.
✅ Sigma II Compatible. Seamless integration with Yaskawa motion systems.
📦 Order the Yaskawa SGDH-15DE-OY Today from Drive Outlet Megastore
Achieve superior motion control with the Yaskawa SGDH-15DE-OY — a robust Sigma II servo amplifier designed for 400 V automation environments.
Check stock now or request a quote.
Reliable Power. Sigma II Precision. Only at Drive Outlet Megastore.
