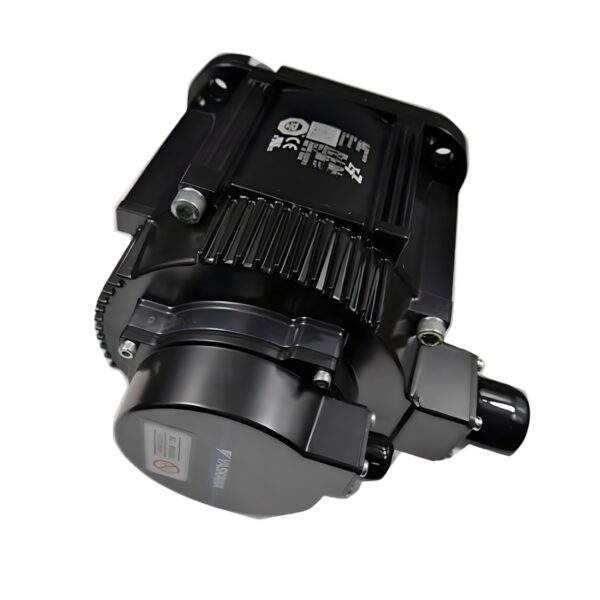

Yaskawa Sigma-7 SGM7G-13AFC6C AC Servo Motor
The Yaskawa Sigma-7 SGM7G-13AFA6C is a high-performance cube-type AC servo motor featuring a 24-bit high-resolution incremental encoder, optimized for medium-inertia, low-speed, high-torque applications.
Designed for seamless Sigma-5 flange compatibility and up to 20% downsizing, it delivers efficient, low-heat operation and precise motion control.
Technical Specifications
Model: SGM7G-13AFC6C Yaskawa
Series: Sigma-7 (SGM7G)
Motor Type: Cube-type rotary servo motor
Input Power Supply: 200 V AC
Rated Output: 1.3 kW
Rated Torque: 8.34 Nm
Instantaneous Maximum Torque: 23.3 Nm
Rated Motor Speed: 1 500 RPM
Maximum Motor Speed: 3 000 RPM
Encoder Resolution: 24-bit incremental
Shaft End: Straight with key and tap
Allowable Load Moment of Inertia: 5× motor inertia
Motor Moment of Inertia: 22 × 10⁻⁴ kg·m²
Mechanical Specifications
- Height: 169 mm
- Width: 130 mm
- Depth: 247 mm
- Weight: 9 kg
- Flange Dimension (LC): 130 mm
- Flange Diameter (LA): 145 mm
- Shaft End Diameter (S): 24 mm
- Shaft End Length (Q): 40 mm
Options
- Holding Brake: 24 V DC
Compliance & Certifications
- CE Marked: Yes
- RoHS Compliant: Yes
Key Features & Benefits of SGM7G-13AFC6C
✅ 24-Bit Encoder. Ultra-high resolution for precise positioning.
✅ High Efficiency. Low heat generation under continuous load.
✅ Compact Design. Up to 20% smaller footprint than previous series.
✅ Sigma-5 Flange Compatible. Easy drop-in upgrade path.
✅ Medium Inertia & High Torque. Ideal for low-speed, high-load applications.
📦 Order the Yaskawa SGM7G-13AFC6C Today from Drive Outlet Megastore
Experience precision and power with the Yaskawa Sigma-7 SGM7G-13AFC6C — a compact, high-resolution servo motor built for demanding motion-control tasks.
Check stock now or request a quote.
Precision Control. Compact Form. Yaskawa Sigma-7 Reliability. — Drive Outlet Megastore
