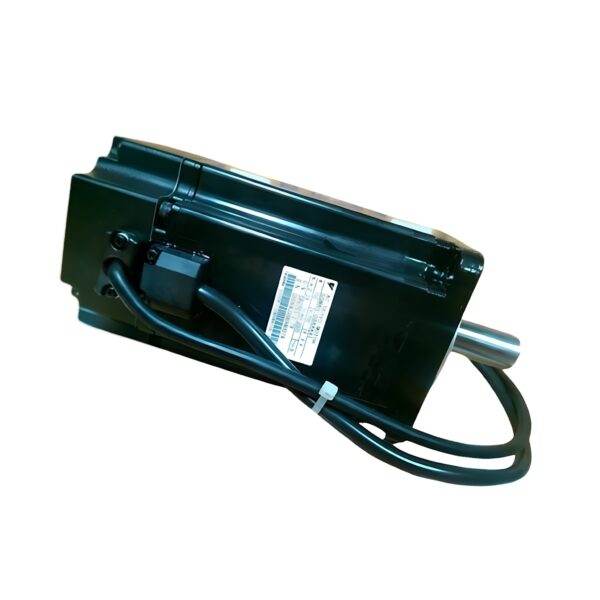

Yaskawa SGMAH-08AAA41 AC Servo Motor

The Yaskawa SGMAH-08AAA41 is a super high power–rate type Sigma-II series servomotor delivering 0.75 kW continuous output on a 230 VAC supply with precise feedback via a 13-bit incremental encoder.
Designed for demanding machine automation, it features a straight key-type shaft, a standard design with no brake or oil/dust seal, and compact cube-type construction for space-limited installations.

Technical Specifications

Model: SGMAH-08AAA41 Yaskawa
Series: Sigma-II (SGMAH)
Motor Type: Cube-type rotary servomotor
Power Rating: 0.75 kW (750 W)
Supply Voltage: 230 VAC ±10%
Encoder Resolution: 13-bit incremental
Design Revision: Standard
Shaft End: Straight with key

Mechanical Specifications

• Frame Size: 80 × 80 mm flange
• Weight: ≈ 2.3 kg
• Mounting: Face-mount, M4 tapped holes
• Oil/Dust Seal: Not fitted

Options

• Brake: None
• Reducer: Not applicable

Compliance & Certifications

• CE Marked: Yes
• RoHS Compliant: Yes
• Insulation Class: UL recognized Class H

Key Features & Benefits

✅ Super High Power Rate. 0.75 kW output in a compact form.

✅ Precise Feedback. 13-bit encoder for reliable position detection.

✅ Straight Key Shaft. Simplifies coupling and alignment.

✅ Space-Saving Design. Cube-type construction for tight panels.

✅ Sigma-II Reliability. Proven performance in industrial settings.
