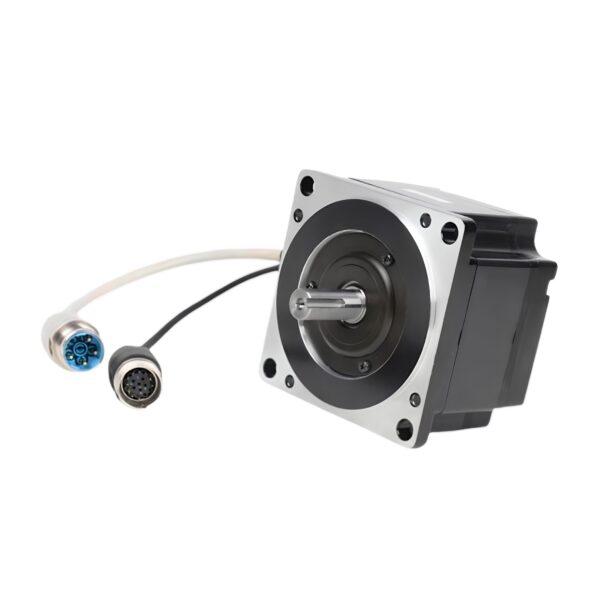

Yaskawa SGMPH-08AAA61D-OY AC Servo Motor

The Yaskawa SGMPH-08AAA61D-OY is a cube-type Sigma-II servo motor delivering 400 W continuous power at 3 000 RPM with a nominal torque of 1.27 Nm.
Ideal for compact, high-dynamics motion-control applications, it offers 300 % peak-torque capability, automatic recognition by Sigma-II drives, and a low-inertia design for rapid acceleration and deceleration.

Technical Specifications

Model: SGMPH-08AAA61D-OY Yaskawa
Series: Sigma-II (SGMPH)
Motor Type: Cube-type rotary servo motor
Rated Power: 0.4 kW (400 W)
Rated Speed: 3 000 RPM
Rated Torque: 1.27 Nm
Peak Torque: 3.81 Nm (300 % of nominal)
Rated Current: 2.6 A RMS
Feedback Device: 17-bit absolute encoder (1 024 pulses/rev)

Electrical Specifications

• Voltage Class: 100 V AC servo bus (via compatible Sigma-II drive)
• Insulation: Class H (180 °C)
• Connection: 5 m, 5-lead motor cable
• Motor Recognition: Automatic by compatible Sigma-II drives

Mechanical Specifications

• Frame Size: Cube block, approx. 60 × 60 × 60 mm
• Shaft Diameter: 8 mm, keyway
• Weight: ≈ 1.2 kg
• Mounting: Face-mount, M4 tapped holes

Environmental Specifications

• Operating Temperature: –10 °C to 40 °C
• Storage Temperature: –20 °C to 65 °C
• Humidity: 5 % to 95 % RH (non-condensing)
• Vibration: IEC 60068-2-6 compliant
• Shock: IEC 60068-2-27 compliant

Compliance & Certifications

• CE Marked: Yes
• RoHS Compliant: Yes
• UL Recognized Insulation: Yes

Key Features & Benefits

✅ Compact Cube Design: Fits into tight spaces with minimal footprint.

✅ High Torque Density: 300 % peak torque for rapid dynamic response.

✅ Accurate Positioning: 17-bit encoder for fine resolution.

✅ Plug-and-Play Setup: Automatic motor recognition by Sigma-II drives.

✅ Rugged Construction: Class H insulation and industrial-grade bearings.

📦 Order the Yaskawa SGMPH-08AAA61D-OY Today from Drive Outlet Megastore

Unlock precise, high-speed motion control with the Yaskawa SGMPH-08AAA61D-OY — a feature-packed, compact AC servo motor from the trusted Sigma-II series. Perfect for robotics, pick-and-place, and any application demanding tight position and speed regulation.

Check stock now or request a quote.

Precision Motion. Compact Design. Yaskawa Sigma-II Reliability. — Drive Outlet Megastore
