Pepperl+Fuchs KCD2-SR-Ex1.LB Switch Amplifier (216712)

Name: Pepperl+Fuchs KCD2-SR-Ex1.LB Switch Amplifier (216712)
SKU: KCD2-SR-Ex1.LB
Price: 183.94 GBP
Availability: InStock

£183.94 inc VAT

In Stock · Delivered in 3–5 Working Days

Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.

Technical SpecificationsPepperl+Fuchs

Model	KCD2-SR-Ex1.LB
Type	Intrinsically Safe Switch Amplifier
Supply Voltage	19 … 30 V DC
Rated Current	≤ 37 mA
Input Type	NAMUR sensor or dry contact
Output Type	2 relay contacts (signal and fault)
Contact Type	Relay
Dimensions	12.5 x 119 x 114 mm (W x H x D)
Connection	Screw terminals
Switching Frequency	≤ 10 Hz

✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: KCD2-SR-Ex1.LB Category: Pepperl+Fuchs Modules Tag: KCD2-SR-Ex1.LB Brand: Pepperl+Fuchs

Guaranteed Safe Checkout

Extra Features

100% Brand New & Genuine OEM Product
Includes Full 2-Year Warranty for Peace of Mind
Fast UK & Worldwide Shipping – Fully Tracked
Expert Technical Support from Our In-House Engineers
Found a Better Price? We’ll Match or Beat It Instantly

Pepperl+Fuchs KCD2-SR-Ex1.LB Switch Amplifier (216712)

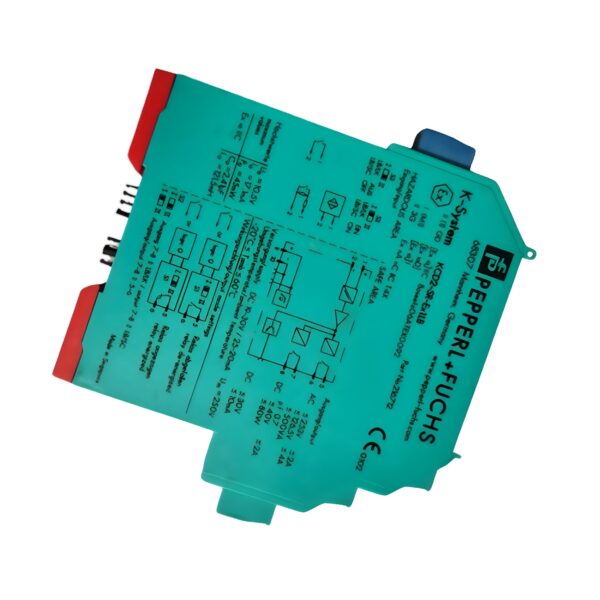

The P&F KCD2 SR Ex1 LB from Pepperl+Fuchs is a compact, intrinsically safe switch amplifier designed to transfer digital signals from NAMUR sensors or dry contacts in hazardous areas to a safe area. Featuring one input and two relay outputs, it supports line fault detection (LFD), reverse mode switching, and fault relay indication.

Technical Specifications

Model	KCD2-SR-Ex1.LB
Type	Intrinsically Safe Switch Amplifier
Input Type	NAMUR sensor or dry contact
Output Type	2 relay contacts (signal and fault)
Channels	1
Mounting	35 mm DIN rail (EN 60715)

Input Specifications

Input Terminals	1+, 2-
Standard	EN 60947-5-6 (NAMUR)
Open Circuit Voltage	Approx. 8 V DC
Short-Circuit Current	Approx. 8 mA
Switching Point	1.2 … 2.1 mA
Hysteresis	Approx. 0.2 mA
Line Fault Detection	Break ≤ 0.1 mA, Short ≥ 6.5 mA
Pulse/Pause Ratio	Min. 20 ms

Output Specifications

Output Terminals	5, 6 (signal); 7, 8 (fault relay or second signal)
Contact Type	Relay
Min. Switching Current	2 mA @ 24 V DC
Switching Frequency	≤ 10 Hz
Response Time	≤ 20 ms (energized/de-energized)
Mechanical Life	10⁷ switching cycles
Contact Load	250 V AC / 2 A (cos φ > 0.75) 126.5 V AC / 4 A (cos φ > 0.75) 30 V DC / 2 A (resistive)

Power & Configuration

Supply Voltage	19 … 30 V DC
Power Source	Power Rail or terminals 9+, 10-
Rated Current	≤ 37 mA
Power Dissipation	≤ 750 mW
Configuration	DIP switches
Visual Indicators	LEDs (per NAMUR NE44)

Galvanic Isolation

Input/Output	Reinforced (300 Veff)
Input/Power Supply	Reinforced (300 Veff)
Output/Power Supply	Reinforced (300 Veff)
Output/Output	Reinforced (300 Veff)

Environmental & Mechanical

Operating Temperature	-40 … 70 °C
Degree of Protection	IP20
Connection	Screw terminals
Dimensions	12.5 x 119 x 114 mm (W x H x D)
Weight	Approx. 100 g

Certifications & Safety

Safety Integrity Level	SIL 2 (SC 3) per IEC/EN 61508
Certificates	BASEEFA 06 ATEX 0092 X, IECEx BAS 06.0025 X
Max Safe Voltage (Um)	253 V AC (Input/Output), 40 V DC (fault output)
ATEX Marking	II 3(1)G Ex ec nC [ia Ga] IIC T4 Gc II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
IECEx Marking	Ex ec nC [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
