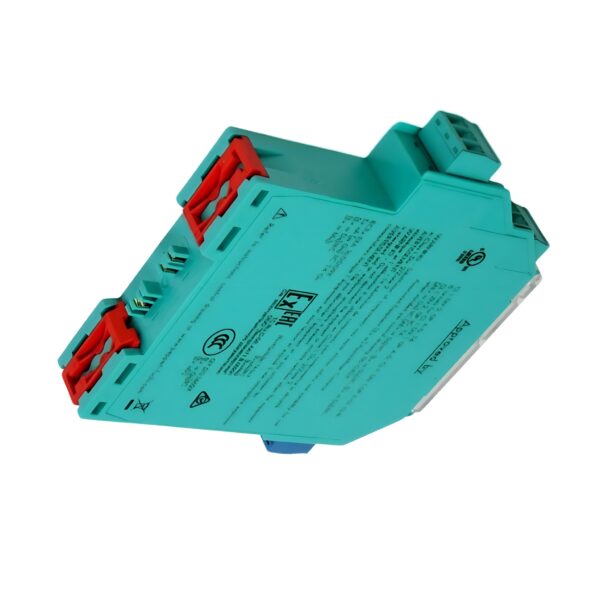

Pepperl+Fuchs KCD2-SOT-Ex1.LB Switch Amplifier (214240)

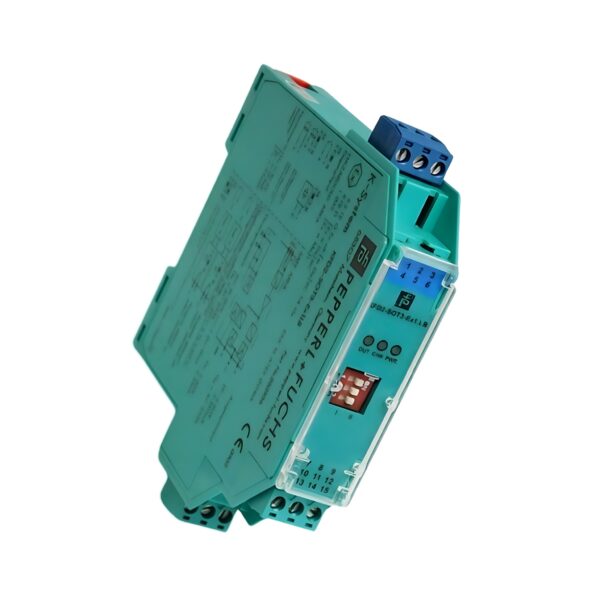

The Pepperl+Fuchs KCD2-SOT-Ex1.LB is a compact 1-channel switch amplifier for intrinsically safe signal transmission from NAMUR sensors or dry contacts in hazardous areas. With 2 passive transistor outputs, it can operate as a signal splitter or error notifier and supports SIL 2 (SC 3) functional safety. Designed for DIN rail installation with only 12.5 mm housing width, it’s ideal for control cabinets with limited space.

Technical Specifications

Model: KCD2-SOT-Ex1.LB
Type: Switch Amplifier / Isolated Barrier
Input Type: NAMUR or dry contact
Input Terminals: 1+, 2-
Operating Voltage: 19–30 V DC
Power Supply: Via Power Rail or terminals 9+, 10-

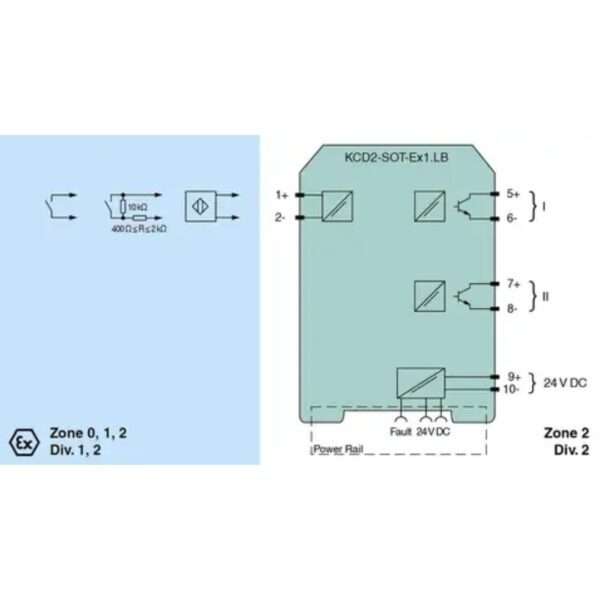

Output Type: 2 passive transistor outputs (Terminals 5/6 and 7/8)

Input Specifications

• Open Circuit Voltage / Current: ~10 V DC / ~8 mA
• Switching Point: 1.2–2.1 mA
• Hysteresis: ~0.2 mA
• Line Fault Detection: Break I ≤ 0.1 mA / Short I ≥ 6.5 mA
• Pulse Ratio: ≥ 100 µs

Output Specifications

• Rated Voltage: 30 V DC
• Rated Current: 50 mA per channel
• Response Time: ≤ 200 µs
• Output I: Signal (transistor)
• Output II: Signal or fault (configurable)
• Error Output: Collective error via Power Rail

Functional Features

• Signal Splitting: 1 input → 2 outputs
• Reversible Logic: DIP-switch selectable
• Configuration: DIP switches at front
• Visual Indicators: Status LEDs (per NAMUR NE44)

Mechanical & Environmental

• Dimensions: 12.5 × 119 × 114 mm (W × H × D)
• Mounting: 35 mm DIN rail (EN 60715)
• Weight: Approx. 100 g
• Operating Temp: -20 to +70 °C
• Protection: IP20

Compliance & Safety

• Functional Safety: SIL 2 (SC 3) per IEC/EN 61508
• ATEX Certification: II (1)G [Ex ia Ga] IIC / II (1)D [Ex ia Da] IIIC / I (M1) [Ex ia Ma] I
• IECEx Approval: IECEx BAS 13.0046 / IECEx CML 19.0147X
• Electrical Isolation: Reinforced between input/output/power supply (300 Veff)
• Directives: 2014/30/EU, 2014/34/EU

Key Features & Benefits

✅ Dual Transistor Outputs: Can be configured as signal duplicator or signal + error outputs.

✅ Compact 12.5 mm Housing: Saves space in crowded control cabinets.

✅ Intrinsic Safety Barrier: Fully ATEX/IECEx certified for Zone 0/1/2 applications.

✅ Power Rail or Terminal Powered: Flexible supply options to fit your system.

✅ Fast Switching: With ≤200 µs response time for high-speed digital applications.
