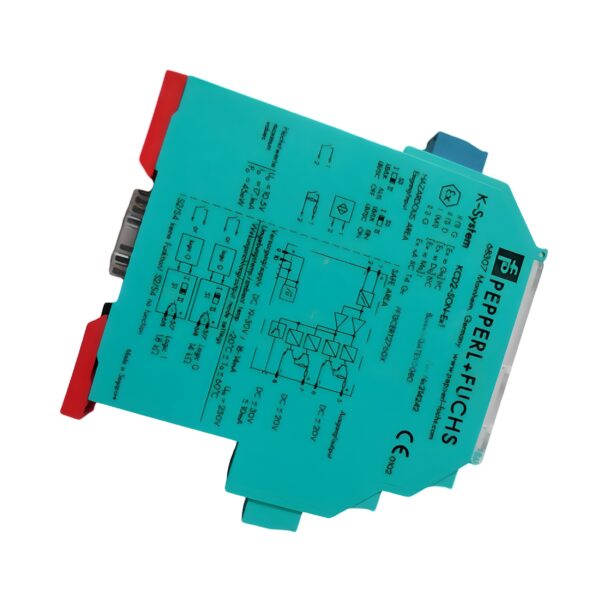

Pepperl Fuchs KCD2-SON-Ex1 Switch Amplifier (214242)

The P&F KCD2-SON-Ex1 is a 1-channel intrinsically safe switch amplifier with two passive transistor outputs, designed for isolating NAMUR sensors or dry contact signals from hazardous areas to safe zones. The resistive outputs comply with EN 60947-5-6 and enable full line fault transparency (LFT).

With a slim 12.5 mm housing, DIP switch configurability, and SIL 2 compliance, this unit is ideal for space-constrained installations requiring rapid response and built-in fault signaling via Power Rail.

Technical Specifications

Model: KCD2-SON-Ex1
Type: Intrinsically Safe Switch Amplifier
Input Type: NAMUR sensor or dry contact
Output Type: Passive transistor output (resistive)
Channels: 1
Mounting: 35 mm DIN rail (EN 60715)

Input Specifications

• Connection Terminals: 1+, 2-
• Standard: EN 60947-5-6 (NAMUR)
• Open Circuit Voltage: Approx. 10 V DC
• Short-Circuit Current: Approx. 8 mA
• Switching Point: 1.2 … 2.1 mA
• Hysteresis: Approx. 0.2 mA
• Line Fault Detection: Break ≤ 0.1 mA, Short ≥ 6.5 mA
• Pulse/Pause Ratio: Min. 100 µs

Output Specifications

• Output Terminals: I: 5,6 | II: 7,8
• Output Type: Passive transistor (resistive)
• Output Signal Levels:
  • 1-Signal: 1.8 kΩ ±10%
  • 0-Signal: 14 kΩ ±10%
  • Fault: > 100 kΩ
• Rated Voltage: Typ. 8 V, Max. 20 V DC
• Response Time: ≤ 200 µs
• Switching Frequency: ≤ 5 kHz

Power & Configuration

• Supply Voltage: 19 … 30 V DC
• Rated Current: 14 … 18 mA
• Power Dissipation: ≤ 500 mW
• Power Rail Support: Yes
• Visual Indicators: LEDs (NAMUR NE 44)
• Configuration: DIP switch configurable

Galvanic Isolation

• Input/Output: Reinforced (300 Veff)
• Input/Power Supply: Reinforced (300 Veff)
• Output/Power Supply: Basic (50 Veff)
• Output/Output: Basic (50 Veff)

Environmental & Mechanical

• Operating Temperature: -20 … 60 °C (up to 70 °C with conditions)
• Degree of Protection: IP20
• Connection: Screw terminals
• Dimensions: 12.5 x 119 x 114 mm (W x H x D)
• Weight: Approx. 100 g

Certifications & Safety

• SIL Rating: SIL 2 (SC 3) per IEC/EN 61508
• ATEX Marking: II (1)G [Ex ia Ga] IIC / II (1)D [Ex ia Da] IIIC / I (M1) [Ex ia Ma] I
• IECEx Marking: Ex ia Ga IIC / Ex ia Da IIIC / Ex ia Ma I / Ex ec IIC T4 Gc
• Certificates: BASEEFA 13 ATEX 0080, CML 19 ATEX 4410 X, IECEx BAS 13.0046, IECEx CML 19.0147X
• Max Safe Voltage (Um): 253 V AC

Key Features & Benefits

✅ Dual Passive Outputs: Provides two resistive outputs per channel with fault state transparency.

✅ Line Fault Transparency: 3-state signaling for enhanced diagnostics.

✅ Ultra-Slim Housing: Only 12.5 mm wide, ideal for dense installations.

✅ SIL 2 Certified: Functional safety for critical applications.

✅ High-Speed Response: 200 µs reaction and 5 kHz switching for fast systems.

📦 Buy Pepperl+Fuchs KCD2-SON-Ex1 from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable KCD2-SON-Ex1 prices.

Perfect for compact panels needing safe, fast, and diagnostic-rich NAMUR signal isolation with dual transistor output.

In stock now and available with 2–3 days delivery.

Contact us to place your order today.
