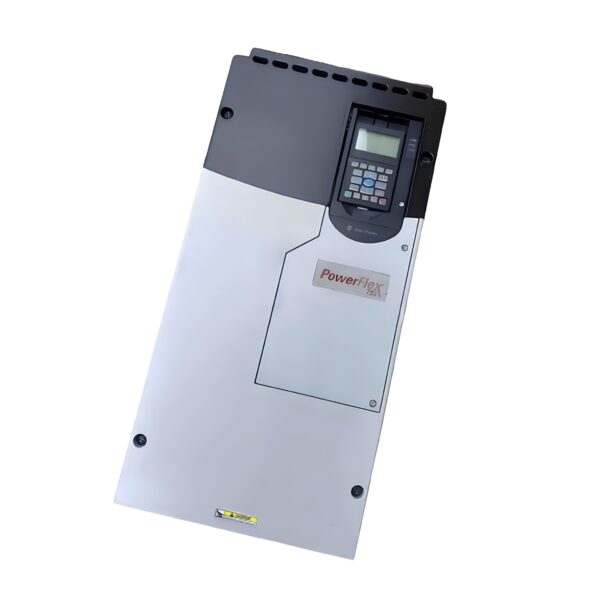

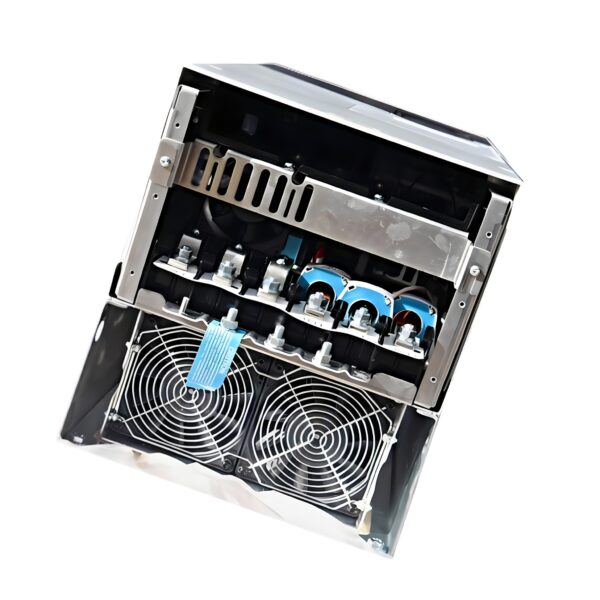

Allen Bradley 20F1AND302AA0NNNNN Inverter Drive – 185kW, IP20

The AB 20F1AND302AA0NNNNN is a high-power PowerFlex 753 adjustable frequency AC drive engineered for reliable motor control in large-scale industrial operations. Designed to deliver 250 HP (186 kW) at normal duty and 200 HP (149 kW) at heavy duty, this drive operates at 480 VAC, 3-phase input and delivers 302 A output current.

Built with a Frame 7 chassis and an open-type IP20/IP00 enclosure, this unit is air-cooled and supplied without a HIM (blank cover installed). The PowerFlex 753 offers scalable control, embedded I/O, and modular expandability for integration into Rockwell Automation environments requiring high-performance motor control.

Technical Specifications

Model: 20F1AND302AA0NNNNN
Series: PowerFlex 753
Type: Adjustable Frequency AC Drive
Power Rating (ND): 186.0 kW (250 HP)
Power Rating (HD): 149.0 kW (200 HP)
Frame Size: 7
Enclosure Type: IP20 / IP00 (Open Type)
Cooling Method: Air cooled
Display Option: Blank (No HIM included)
Brake IGBT: Not specified (assume optional or available separately)
Brake Resistor: Not included
Control Type: Standard
Mounting Type: Panel mount
Precharge Circuit: Included

Electrical Specifications

Input Voltage: 3-phase, 380…480 VAC
Output Current: 302 A
Input Frequency: 50/60 Hz
Max. Output Frequency: 590 Hz
Overload Capacity:

• 110% for 60 sec (ND)
• 150% for 60 sec (HD)
  Short Circuit Rating: 100 kA with recommended fusing
  EMC Filter: Optional (not included as standard)
  Power Terminals: Compression lugs or busbar (based on frame size)

Network & Interface Specifications

Integrated Interfaces:

• No HIM included (blank plate)
• RS-485 communication port standard
• Optional communication cards supported (EtherNet/IP, DeviceNet, ControlNet, etc.)
• Configuration via Studio 5000, Connected Components Workbench, or optional HIM

Supported Protocols (via optional modules):
EtherNet/IP, DeviceNet, Modbus, ControlNet, TCP/IP, PROFIBUS

I/O Capabilities:

• Embedded I/O (typical: 6 digital inputs, 2 analog inputs, 3 relay outputs – confirm per exact build)
• Expandable via I/O option cards

20F1AND302AA0NNNNN Mechanical Specifications

Height: Approx. 1070 mm
Width: Approx. 360 mm
Depth: Approx. 370 mm
Weight: Approx. 120 kg
Mounting Orientation: Vertical panel mount
Enclosure Type: Open – for installation in a control cabinet
Cooling: High-capacity internal fan

Environmental Specifications

Operating Temperature: 0…50 °C (up to 60 °C with derating)
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95%, non-condensing
Altitude: Up to 1000 m without derating
Pollution Degree: 2
Shock Rating: 15 g
Vibration Resistance: 1 g @ 10–500 Hz
Compliance Area: Industrial and commercial environments

Compliance & Certifications

Certifications: UL, cUL, CE, RoHS
EMC Compliance: Optional filter required for full CE compliance
Functional Safety: Capable of STO and other safety functions with optional modules
SIL/PL Rating: SIL2 / PLd capable with appropriate accessories
Standards Met: EN 61800-3, EN 61800-5-1, IEC 61000-6-2 / 6-4

Key Features & Benefits

✅ 302 A High-Current Output – Supports motors up to 250 HP for demanding industrial applications

✅ Modular Communication Ready – Compatible with a wide range of protocol expansion modules

✅ Scalable Embedded I/O – Built-in control I/O simplifies external PLC logic

✅ Precharge Protection – Built-in circuit manages inrush current safely and efficiently

✅ No HIM Included – Optimized for cabinet-based or remote configuration via software tools

📦 Order the Allen Bradley 20F1AND302AA0NNNNN from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 20F1AND302AA0NNNNN prices. This Frame 7 PowerFlex 753 AC drive provides the high-output motor control your industrial system needs—fully scalable and integration-ready for large-scale operations.

Click here to request a quote or check availability

Drive Outlet Megastore – your trusted source for Allen Bradley PowerFlex drives and high-performance automation components.
