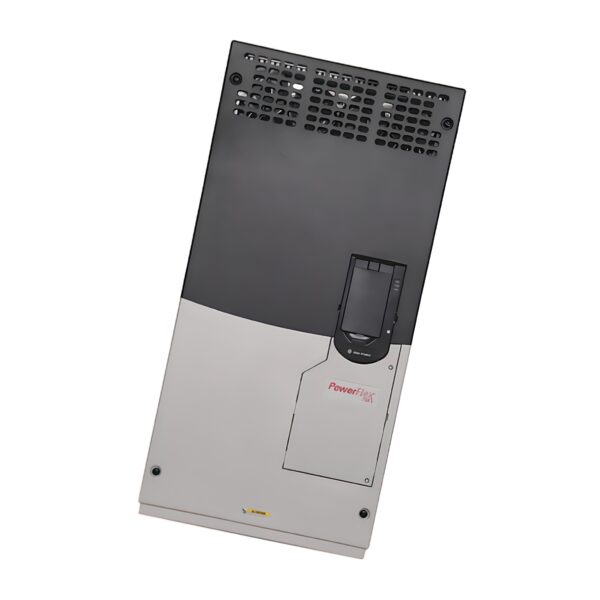

Allen Bradley 20F1AND302JN0NNNNN Inverter Drive – 185kW, IP20

The Allen Bradley 20F1AND302JN0NNNNN is a high-output PowerFlex 753 AC drive engineered for precision motor control in large industrial systems. Rated for 302 A, this drive delivers 250 HP (186 kW) at normal duty and 200 HP (149 kW) at heavy duty, operating with 3-phase 480 VAC input.

This Frame 7 drive features an IP20 open-type chassis with integrated air cooling, embedded I/O, and an AC input with precharge circuit to manage inrush current. It comes factory-equipped with an EMC filter for CE compliance and a CM jumper installed for standard bonding practices. The unit does not include a HIM module and is configured with a blank plate for cabinet-based or remote configuration.

Technical Specifications

Model: 20F1AND302JN0NNNNN
Series: PowerFlex 753
Type: AC Variable Frequency Drive
Power Rating (ND): 186.0 kW (250 HP)
Power Rating (HD): 149.0 kW (200 HP)
Frame Size: 7
Enclosure Type: IP20 / Open Type
Cooling Method: Air cooled
Display Option: Blank (No HIM included)
Brake IGBT: Not specified (assumed not included)
Brake Resistor: Not included
CM Jumper: Installed
Control Type: Standard with embedded I/O
Mounting Type: Panel mount
Precharge Circuit: Integrated (AC input only – no DC terminals)

Electrical Specifications

Input Voltage: 3-phase, 380…480 VAC
Output Current: 302 A
Input Frequency: 50/60 Hz
Max. Output Frequency: 590 Hz
Overload Capacity:

• 110% for 60 sec (ND)
• 150% for 60 sec (HD)
  Short Circuit Rating: 100 kA with specified fuses
  DC Bus Access: Not available (no DC terminals)
  EMC Filter: Factory-installed (Second Environment)
  Power Terminals: Compression lugs or busbar (frame dependent)

Network & Interface Specifications

Integrated Interfaces:

• RS-485 communication port
• Embedded I/O standard
• No HIM included – blank cover installed
• Supports up to 5 expansion slots for communication, safety, and feedback modules
• Configuration via Studio 5000, Connected Components Workbench, or external HIM

Supported Protocols (via expansion):
EtherNet/IP, DeviceNet, ControlNet, PROFIBUS, Modbus, TCP/IP

I/O Capabilities (Typical):

• 6 Digital Inputs
• 2 Analog Inputs
• 2 Digital Outputs
• 2 Relay Outputs
  (Confirm final I/O per specific build)

20F1AND302JN0NNNNN Mechanical Specifications

Height: Approx. 1070 mm
Width: Approx. 360 mm
Depth: Approx. 370 mm
Weight: Approx. 120–140 kg
Mounting Orientation: Vertical panel mount
Enclosure Type: Open – for use inside sealed industrial cabinets
Cooling: Internal fan cooled (air)

Environmental Specifications

Operating Temperature: 0…50 °C (up to 60 °C with derating)
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95%, non-condensing
Altitude: Up to 1000 m without derating
Pollution Degree: 2
Shock Rating: 15 g
Vibration Resistance: 1 g @ 10–500 Hz
Compliance Area: Designed for industrial and commercial installations

Compliance & Certifications

Certifications: UL, cUL, CE, RoHS
EMC Compliance: CE EMC Directive – Second Environment filter pre-installed
Functional Safety: Supports STO, PLd, SIL2 with optional safety modules
SIL/PL Rating: SIL2 / PLd capable
Standards Met: EN 61800-3, EN 61800-5-1, IEC 61000-6-2 / 6-4

Key Features & Benefits

✅ 302 A High Output – Powers large motors up to 250 HP, ideal for high-load industrial processes

✅ Integrated Precharge – Controls inrush current for safer electrical startup

✅ Factory-Installed EMC Filter – Ensures compliance with industrial electromagnetic standards

✅ Embedded I/O – Built-in analog and digital I/O streamline system integration

✅ Modular Expansion Slots – Supports up to 5 add-on cards for communication, safety, and feedback

📦 Order the Allen Bradley 20F1AND302JN0NNNNN from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 20F1AND302JN0NNNNN prices. This Frame 7 PowerFlex 753 drive delivers heavy-duty performance with embedded I/O, EMC filtering, and inrush protection—ready for deployment in advanced industrial automation systems.

Click here to request a quote or check availability

Drive Outlet Megastore – your trusted source for Allen Bradley PowerFlex drives and industrial-grade motor control solutions.
